ELE. - 35

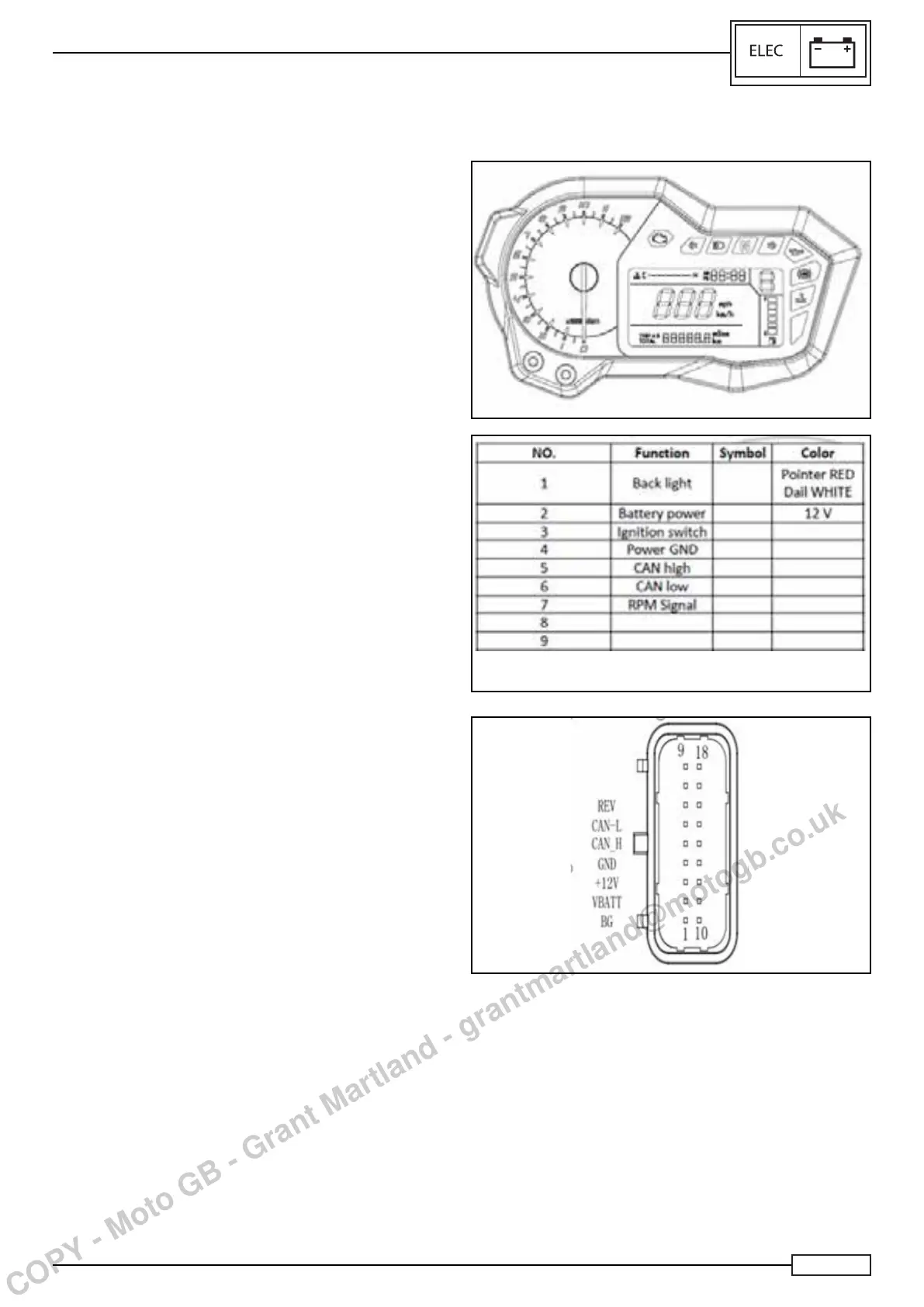

INSTRUMENTATION DASHBOARD
It is situated on the headlight instrumentation support frame.
The instrumentation provides all information
concerning the motorcycle operation to the driver:
INDICATOR LIGHTS:
• high beam light
• left indicator light
• right indicator light
• neutral position indicator light
• injection fault indicator light
• ABS light
• oil pressure warning light
COOLANT TEMPERATURE GAUGE
• It indicates the coolant temperature.
TACHOMETER
• It indicates the number of revolutions per minute of the
engine.
SPEED
• It indicates the vehicle speed in km or miles.
TRIP
• It indicates the distance travelled from the reset.
TOTAL
• It indicates the total distance travelled.
Pin-out (see table)
DEVICES
