Benelli TRK 502 Service Station Manual

4 - 111

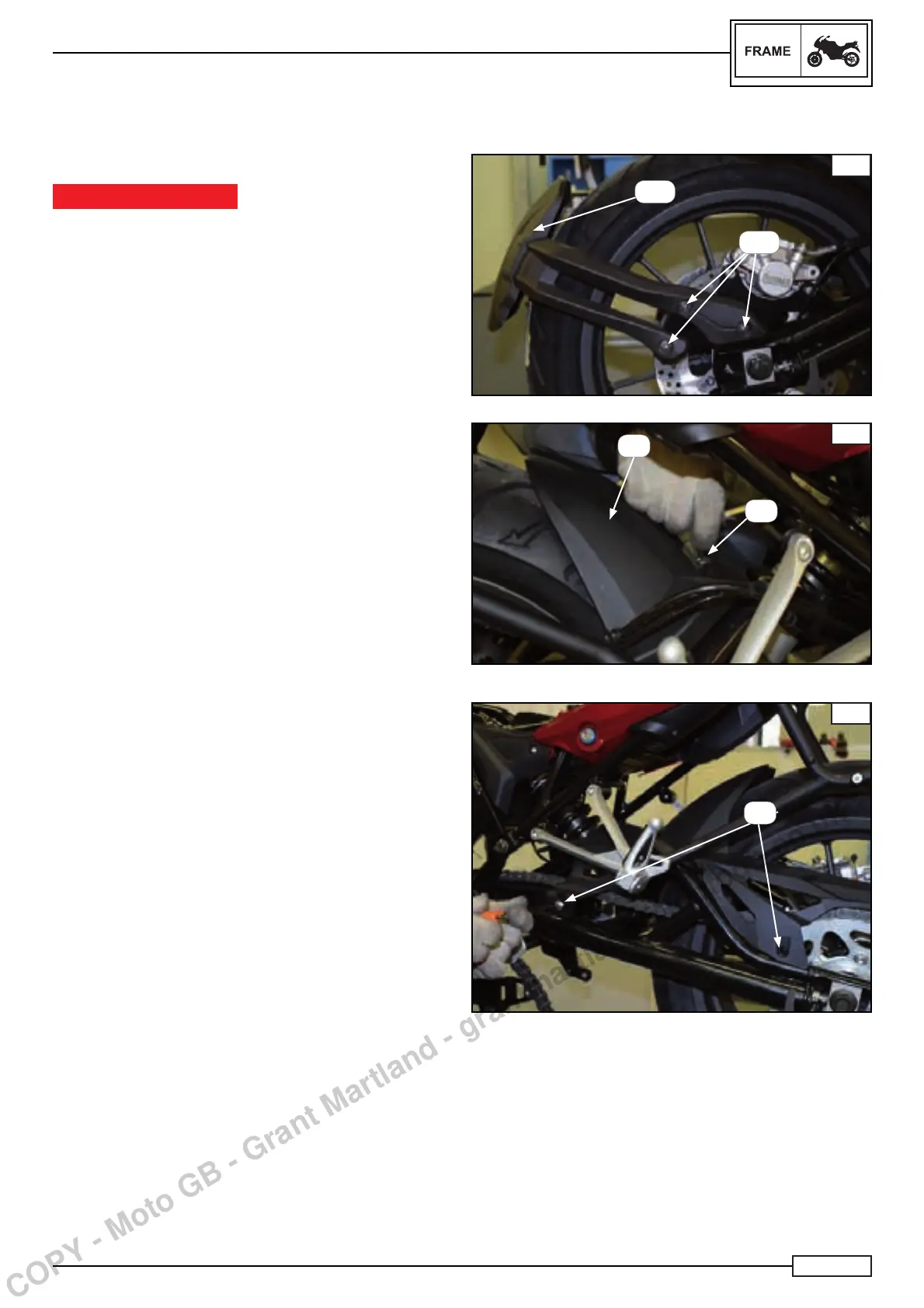

FAIRING
REAR MUD GUARD REMOVAL
A
1
2
Park the bike on a level surface.
IMPORTANT NOTICE
Prop the bike on suitable supports so that it cannot fall.
Remove:
• the screws (1) Fig. A
• The fl ap guard (2) Fig. A
• the screws (16*) Fig. B-C
• The rear mudguard (27*) Fig. B
NOTE:_________________________________
The numbers marked (*) are shown in the replacement parts
table in the “Rear shock absorber” chapter, “Rear shock ab-
sorber removal” section.
B
16*
27*
C
16*
