Benelli TRK 502 Service Station Manual

4 - 98
CYCLING

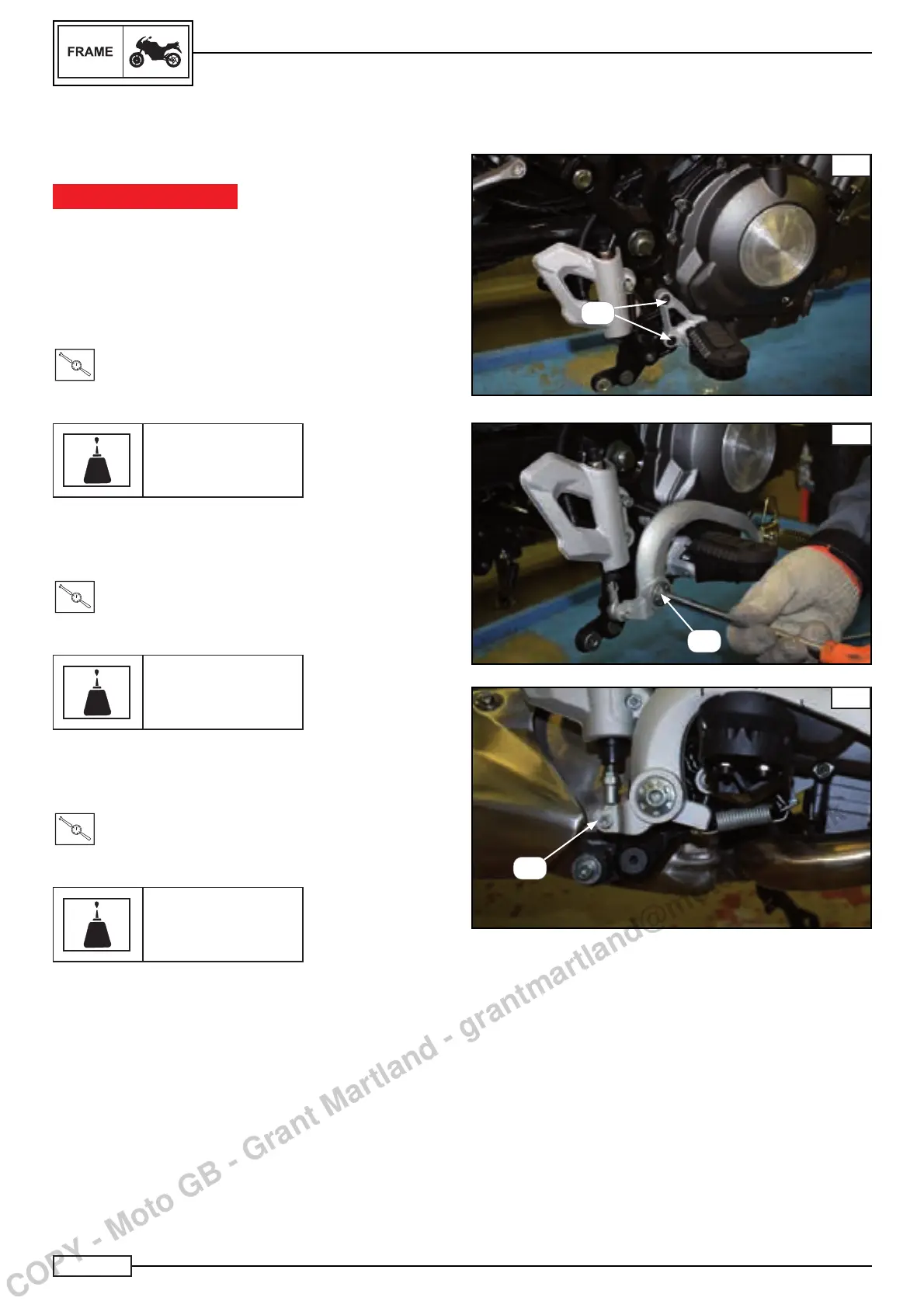

RIGHT FRONT FOOTREST FITTING
Park the bike on a level surface.
IMPORTANT NOTICE
Prop the bike on suitable supports so that it cannot fall.
Install:
Proceed using the opposite order to removal.
Tighten:
• the screws (8*) Fig. A
to the following torque:
T
.
R
.
Torque 25 N*m
Use Loctite thread locker to secure.
Loctite 243
Tighten:
• the screws (4) Fig. B.
to the following torque:
T
.
R
.
Torque 25 N*m
Use Loctite thread locker to secure.
Loctite 243
Tighten:
• the screw (2) and the related fastening nut Fig. C
to the following torque:
T
.
R
.
Torque 12 N*m
Use Loctite thread locker to secure.
Loctite 243
NOTE:_________________________________
The numbers marked (*) are a part of the spare parts table,
chapter “Cycling” paragraph “Installation of the stand/foot-
rests”.
A
8*
4
B
C
2
