Park the bike on a level surface.
IMPORTANT NOTICE
Prop the bike on suitable supports so that it cannot fall.
Remove:
• Rider and passenger seats, see chapter entitled “Removal
of rider and passenger seats, Chapter 4”.
• Movable windscreen, see chapter entitled “Removal of
movable windscreen, Chapter 4”.
• Front fairing, see chapter entitled “Removal of front fair-
ing, Chapter 4”.
• Tank fairing, see chapter entitled “Removal of tank fairing,
Chapter 4”.
• Tank, see chapter entitled “Fuel tank removal, Chapter 4”.
• the screws (1) Fig. A
• the cover (2) Fig. A
Disconnect:
• the connector (3) from the cover Fig. A
Remove:
• the protection mesh (4) Fig. B
• the fi lter element (5) Fig. B
NOTE:_________________________________
Substitute the air fi lter element every 12,000 km. If the ve-
hicle is used in particularly humid climates or in very dusty
areas, the air fi lter must be substituted more often.
Check:
Substitute the air fi lter element if it is damaged. If it is not dam-
aged wash it:
• Wash the fi lter element with specifi c solvents produced for
that use.
• Leave it to dry in the open air.
• Apply a specifi c oil over all surfaces of the fi lter element.
NOTE:_________________________________
Before installing the fi lter element into the air box, remove
any excess oil and making sure that there are no more drips
of oil.
IMPORTANT NOTICE
Never switch on the engine if the ait fi lter is not installed.
The unfi ltered air causes a quick wear of the engine parts
and might damage the engine. Furthermore, using the en-
gine without air fi lter, setting of the throttle bodies is affect-
ed, causing a worsening of engine performance, as well as
its overheating.
Therefore ensure that the air fi lter is always in a good con-
dition.
The long life durability of the engine greatly depends on this
component.
NOTE:_________________________________
The numbers marked (*) are a part of the spare parts table,
chapter “Air fi lter”, paragraph “Air fi lter parts”.

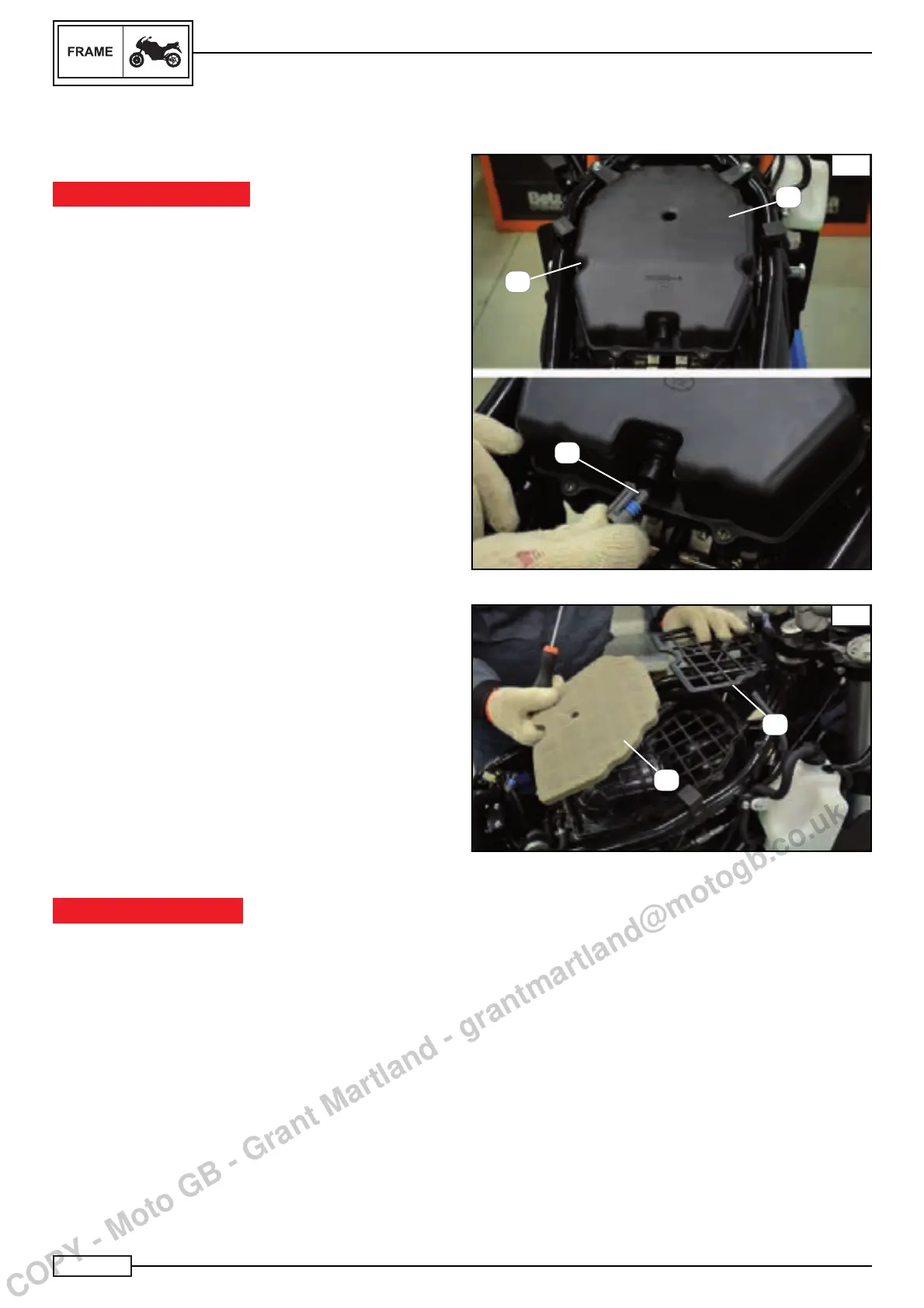

A
1
AIR FILTER
REMOVAL OF THE AIR FILTER
3
B
4
5
2
