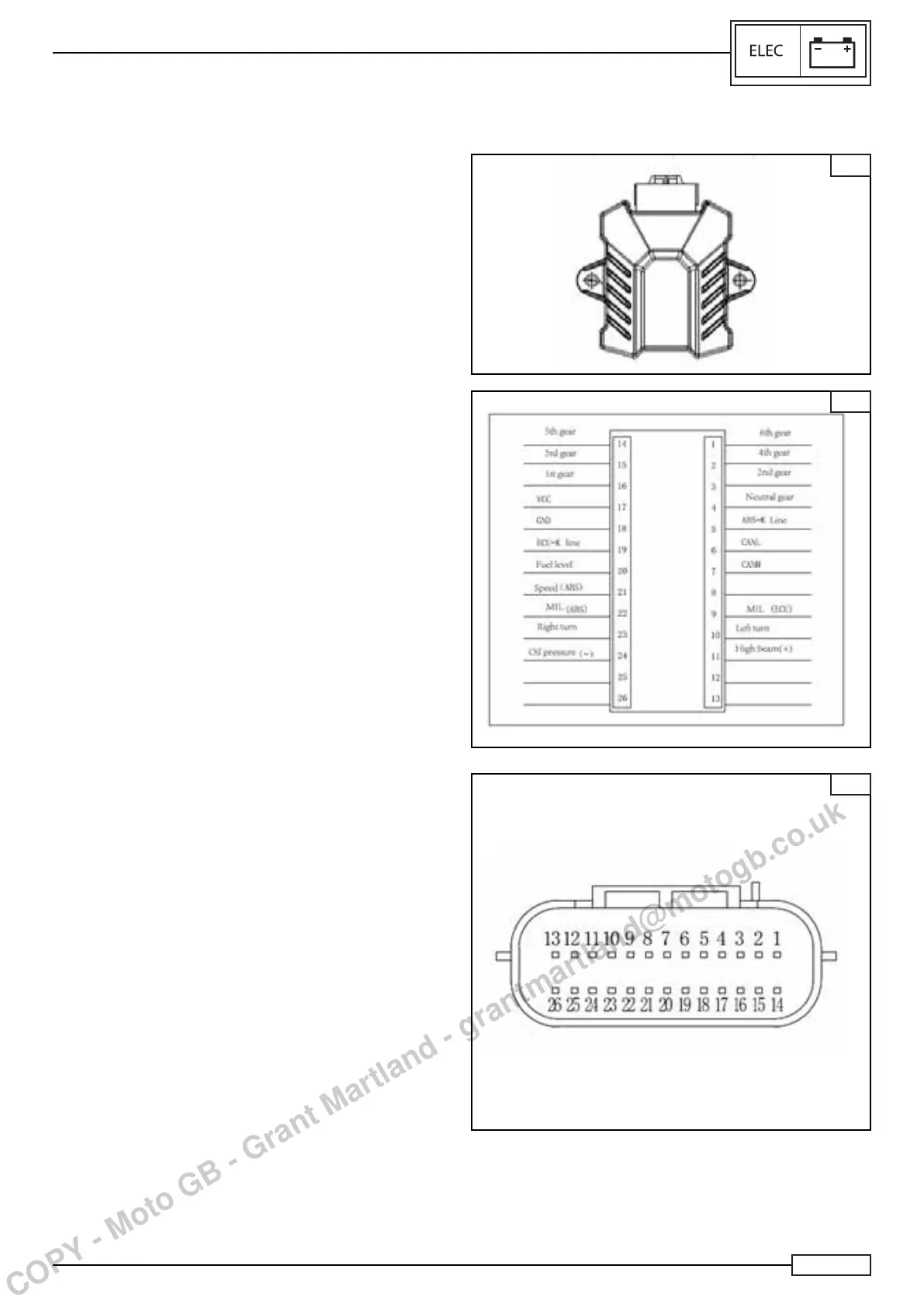

ELE. - 39
DEVICES
CONVERTER OF CAN BUS SIGNALS
It is situated on the left, front side of the vehicle and serves to
collect and convert the digital/analogue signals into CAM-BUS
for the instrument panel (Fig.
A).
A
B
C
COPY - Moto GB - Grant Martland - grantmartland@motogb.co.uk
382
384
