FAIRING

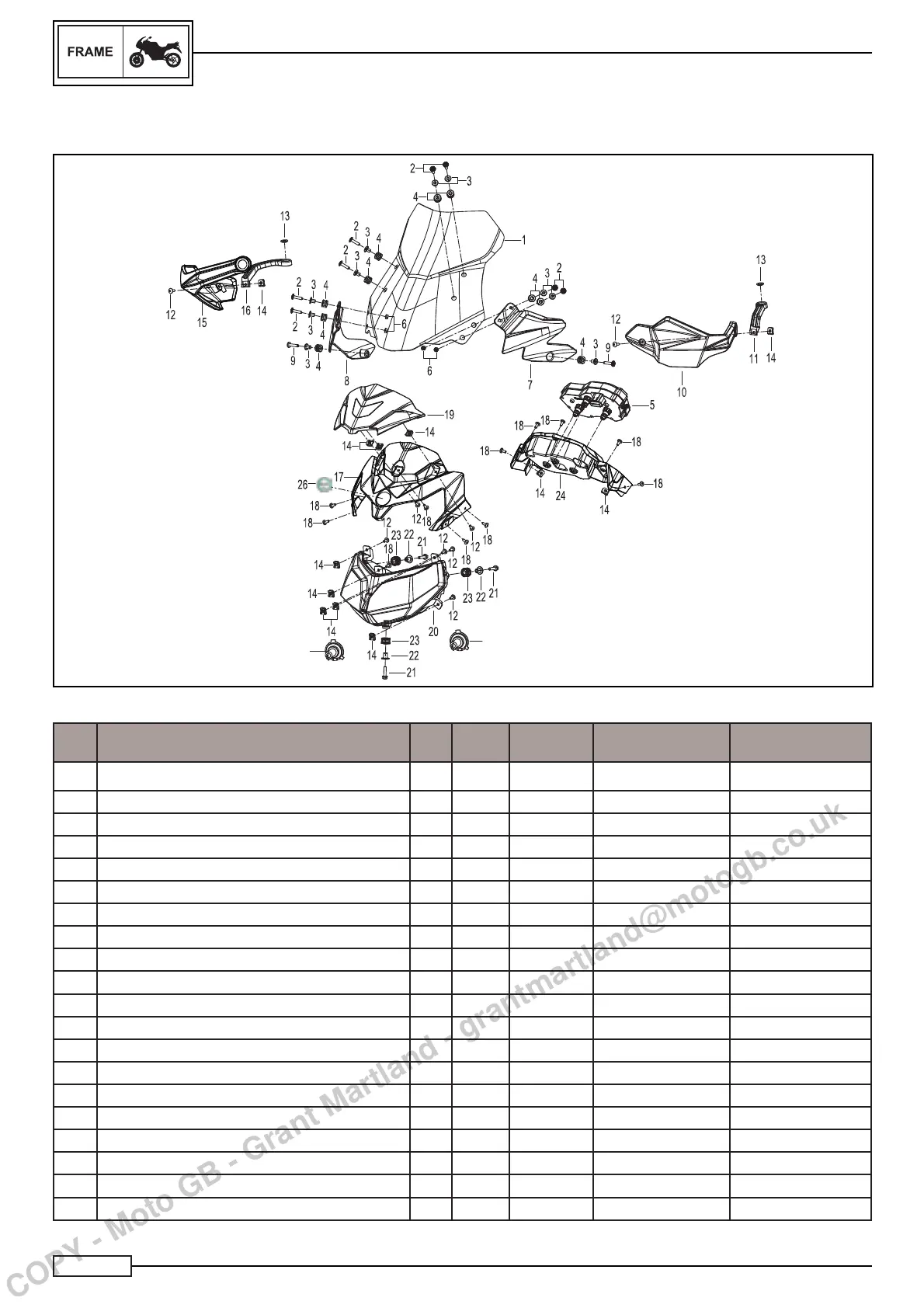

FRONT HEADLIGHT AND WINDSCREEN
25
25
Pos. Description Qty Sq. SYMBOLS
CONTENTS
DESCRIPTION
REMARKS
1
HEADLIGHT FAIRING
2 SCREW
3 SHIM
4 VIBRATION DAMPING PAD
5 COMPLETE INSTRUMENT
6 NUT
7 LEFT HEADLIGHT FAIRING
8 RIGHT HEADLIGHT FAIRING
9 SPECIAL SCREW
10 LEFT HAND GUARD
11 LEFT SUPPORT BRACKET
12 SCREW
13 BUSHING
14 METRIC RAPID FIXING CLIP
15 RIGHT HAND GUARD
16 RIGHT SUPPORT BRACKET
17 FIXED HEADLIGHT FAIRING
18 SCREW
19 WINDSCREEN
20 HEADLAMP
