4 - 20

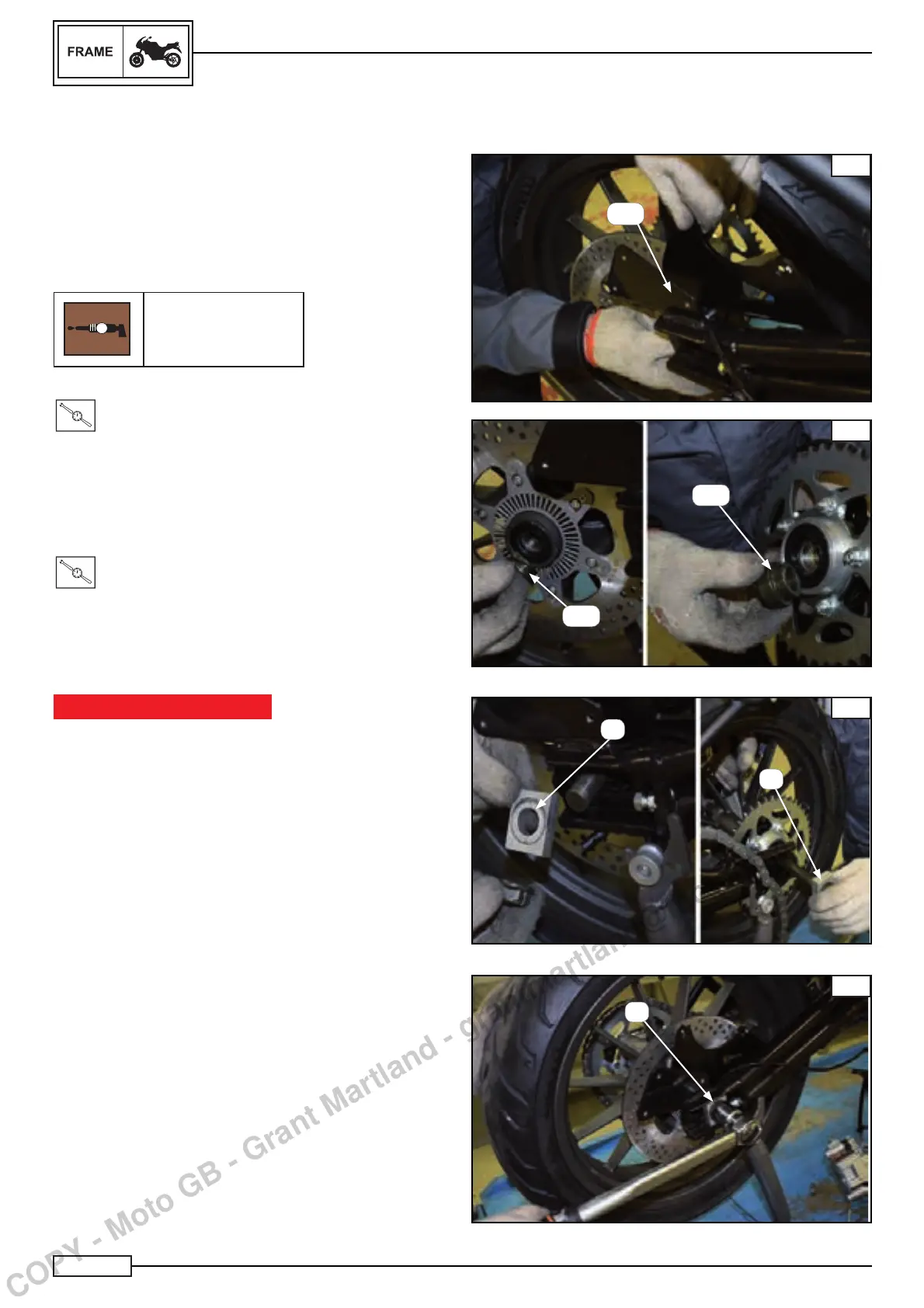

REAR WHEEL AND BRAKE DISC
BACK TYRE INSTALLATION
Install:
• Position brake calliper support bracket (23*) Fig. A.
• Insert the bushes (2*) right side and (20*) left side Fig. B.
• Position the register slide (A) and (B) Fig. C.
• position the rear wheel.
Lubricate and install:
• The axle (1*)
• the nut (24*)
G
MR2 TUTELA grease
• tighten to the following torque pressure Fig. D:
T
.
R
.
Torque 80 N*m
Install:
• the brake calliper.
• screws
• tighten to the following torque pressure Fig. D:
T
.
R
.
Torque 80 N*m
NOTE:_________________________________
Make sure that there is enough space between the brake
pads before fi tting the calliper to the relevant brake discs.
IMPORTANT NOTICE
Check that the travel of the fl exible brake hose is correct.
NOTE:_________________________________
The numbers marked (*) are a part of the “Rear wheel and
brake disc” table.
A
C
B
A
D
1
23*
B
2*
20*
