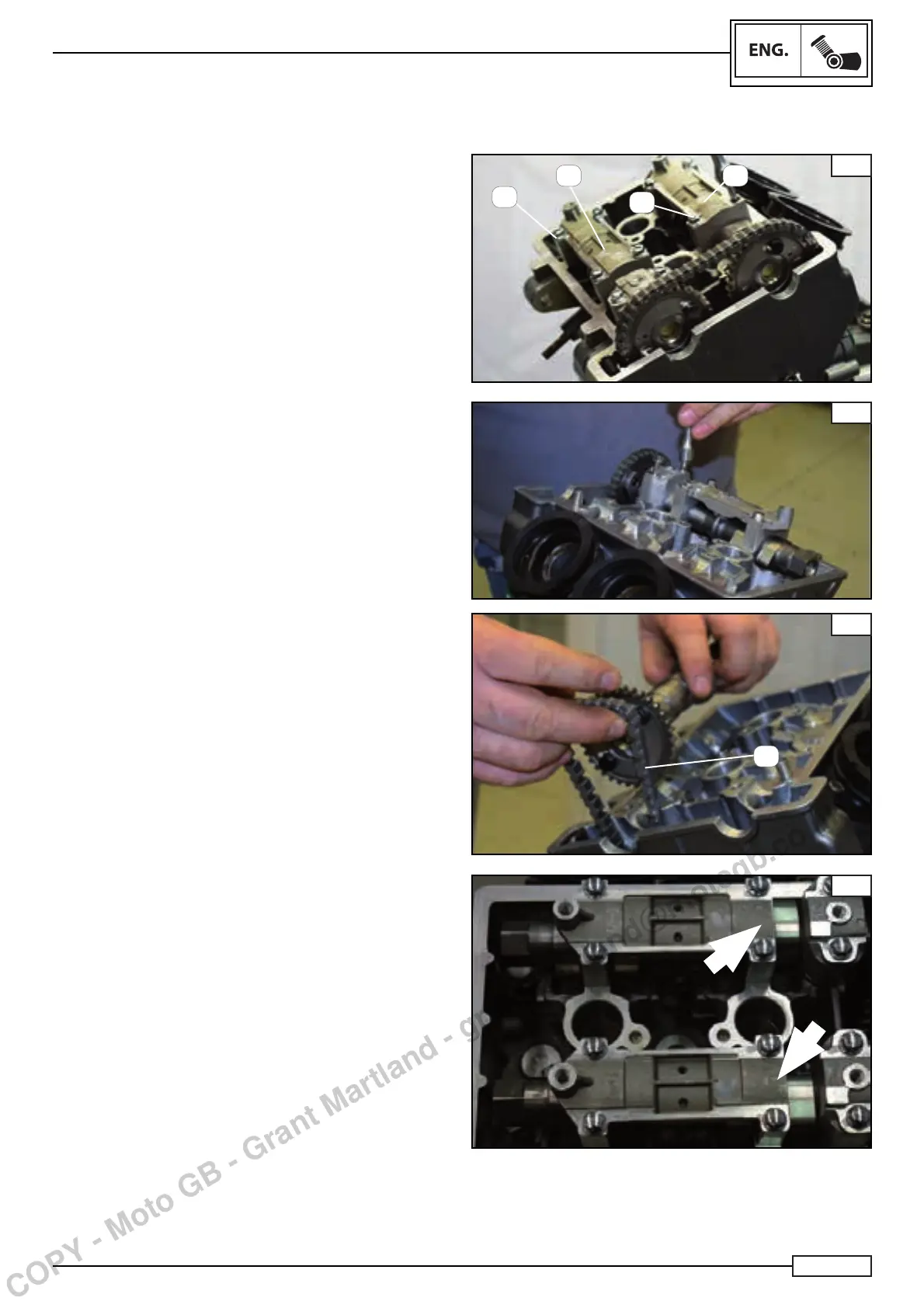

INTAKE AND EXHAUST CAMSHAFT REMOVAL
HEAD DISTRIBUTION
Remove:
• Coils and Spark plugs, see the section entitled “Coil and
spark plug removal”.
• Head timing gear, see section entitled “Head timing gear
cover removal”.
NOTE:_________________________________
During the removal stage, use a marker pen to mark the
position of the holders since, when reinstalling, they need
to be in their original positions, Fig. E.
The “arrows” pressed into the holders show the direction in
which they need to be installed towards the timing gear.
Remove:
• the fastening screws of the holders (1) Fig. B
• The holders (2)
• the intake camshaft Fig. C
• the exhaust camshaft (A) Fig. D
B
1
2
1
2
C
D
A
E
