Insomecasesitisnecessarytohavedifferentgainsforthespeedregulator,abovethespeedrange.Tothispur-
posetheconvertersoftheTPD32-EVseriesareprovidedwithanadaptivespeedregulator.
Forthetuningseethefollowingpages.
20.00 ms/DIV
20.00 ms/DIV

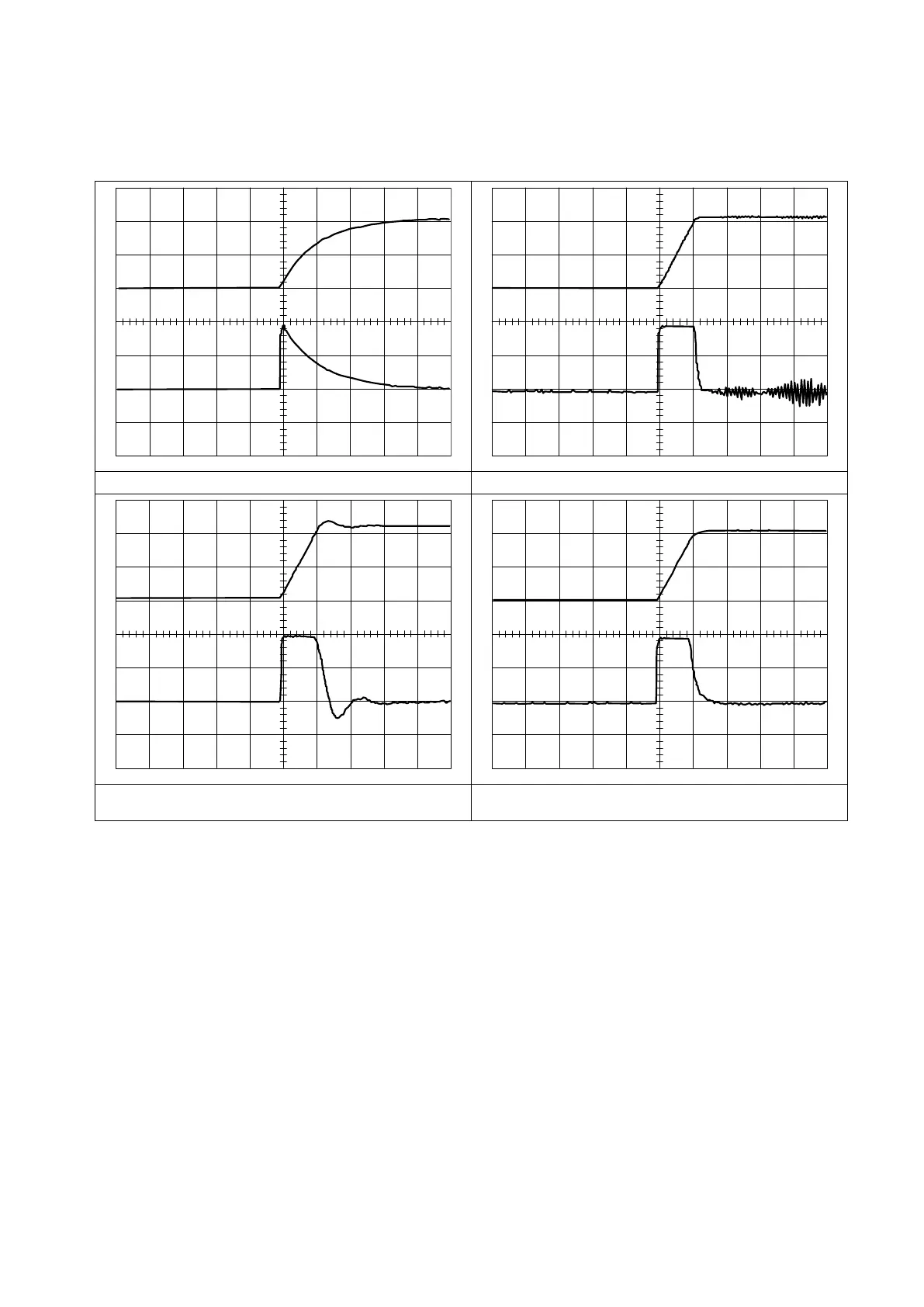

Figure 5.3.6.1: Above: Actual spd; Below: Motor current. Speed P too low. Figure 5.3.6.2: Above: Actual spd; Below: Motor current. Speed P too high.
20.00 ms/DIV
20.00 ms/DIV
Figure 5.3.6.3: Above: Actual spd; Below: Motor current. Speed I too high.. Figure 5.3.6.4: Above: Actual spd; Below: Motor current. Speed P and
Speed I set correctly.
