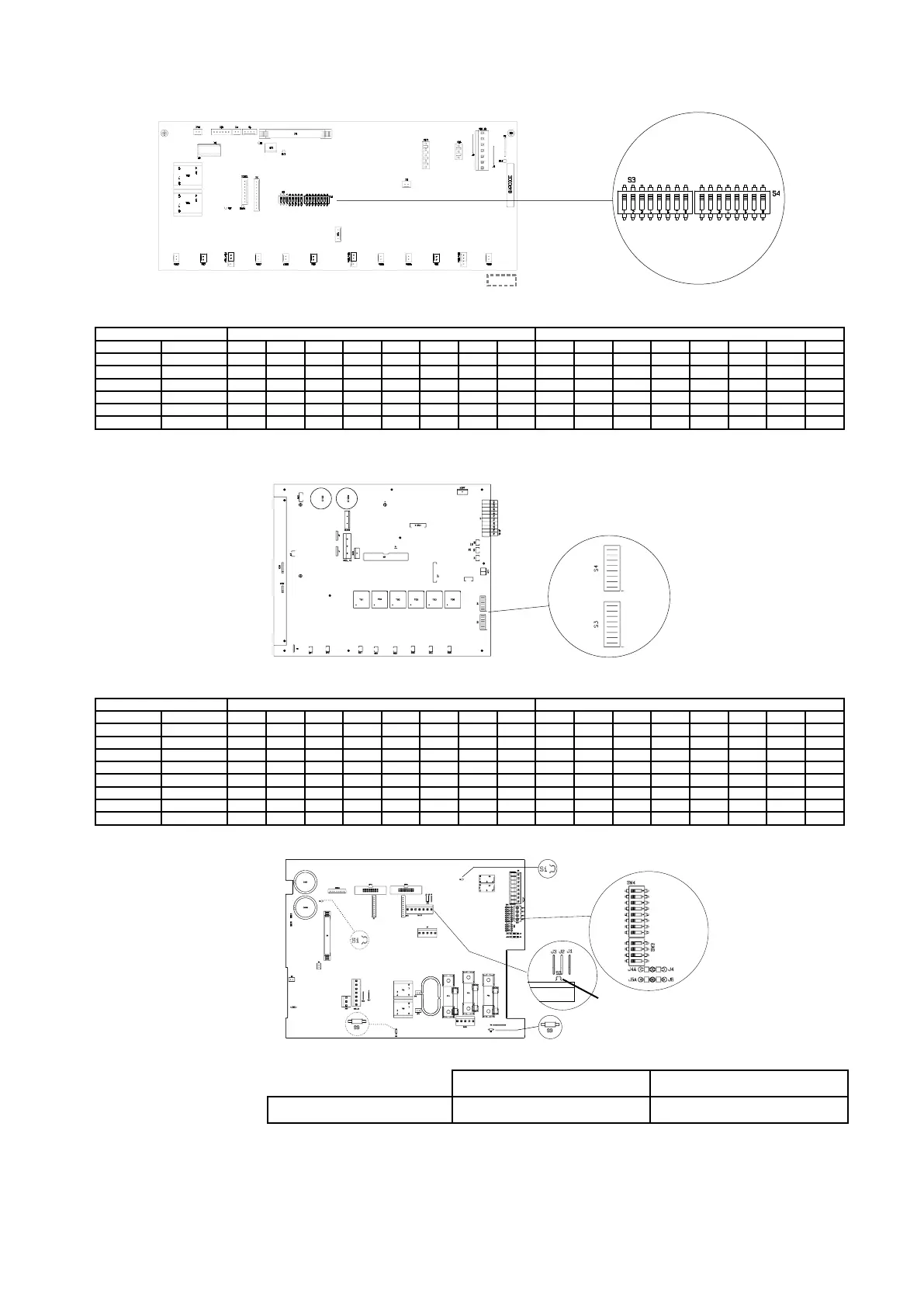

Figure 11.3.3: FIR3-32 power/driver card
4B only
Table 11.3.3: Selection of dip-switches “S3-XX” and “S4-XX” for FIR3-32- cards.
TPD32-EV- Dip-switch Dip-switch
Standard American S3-1 S3-2 S3-3 S3-4 S3-5 S3-6 S3-7 S3-8 S4-1 S4-2 S4-3 S4-4 S4-5 S4-6 S4-7 S4-8
560 360 ON ON ON ON
700 490 ON ON ON ON
770 560 ON ON ON ON
900 650 ON ON ON ON
1000 750 ON ON ON ON ON
1050 850 ON ON ON ON
Figure 11.3.4: FIR3-D power/driver card.
Table 11.3.4: Selection of dip-switches “S3-XX” and “S4-XX” for FIR3-D- cards.
TPD32-EV- Dip-switch Dip-switch
Standard American S3-1 S3-2 S3-3 S3-4 S3-5 S3-6 S3-7 S3-8 S4-1 S4-2 S4-3 S4-4 S4-5 S4-6 S4-7 S4-8
1300 920/980 ON ON ON ON
1400 1000 ON ON ON ON
1600 1200 ON ON ON ON
1900 1450 ON ON ON ON
2000 1500 ON ON ON ON ON
2100 1650 ON ON ON ON
2300 1800 ON ON ON ON ON
2400 1850 ON ON ON ON ON
Figure 11.3.5: FIR4/5P-XX power/driver card
From FIR4/5P-XX
revision «D»
From FIR4/5P-XX
revision «D»
S1
S2
SW4
S9
S9
S1
Table 11.3.5: Selection of Dip-switch “S2” (FIR4/5P-XX)
One CU controlling one external bridge One CU controlling two external bridges
State of S2 Closed (default) Cut
