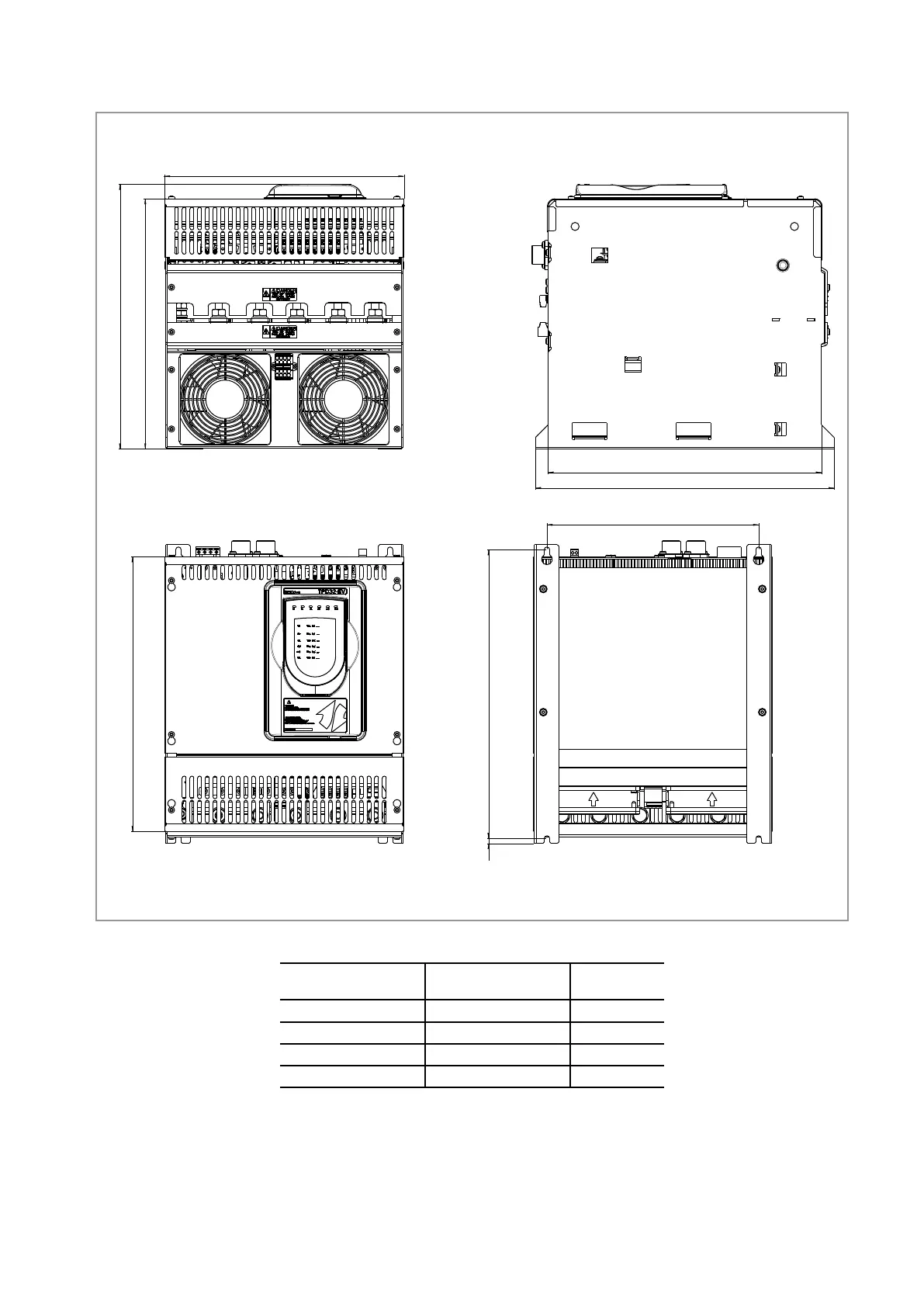

Figure 2.4.4: Type B1 dimensions
311mm [12.24”]
355mm [14”]
388mm [15.27”]
325mm [12.8”]
343.6mm [13.53”]
357mm [14.05”]
275mm [10.82”]
6.5mm
375mm [14.76”]
American Standard Weight
kg [lbs]
TPD32-EV-.../...-224-..-B TPD32-EV-.../...-280-..-B 25.5 [56.2]
TPD32-EV-.../...-280-..-B TPD32-EV-.../...-350-..-B 25.5 [56.2]
TPD32-EV-.../...-336-..-B TPD32-EV-.../...-420-..-B 25.5 [56.2]
TPD32-EV-.../...-400-..-B TPD32-EV-.../...-500-..-B 25.5 [56.2]
