3.2 DISPOSAL OF THE DEVICE
TheconvertersoftheTPD32-EVseriescanbedisposedaselectronicscrapsinaccordancewiththecurrently
validnationalregulationsforthedisposalofelectronicparts.
Theplasticcoveringoftheconvertersuptotype185Aarerecyclable:thematerialusedis>ABS+PC<“-FR”
3.3 MOUNTING THE DEVICE
note!  Thedimensionsandweightsspecifedinthismanualshouldbetakenintoconsiderationwhen
thedeviceismounted.Thetechnicalequipmentrequired(carriageorcraneforlargeweights)
shouldbeused.Improperhandlingandtheuseofunsuitabletoolsmaycausedamage.
max. 30

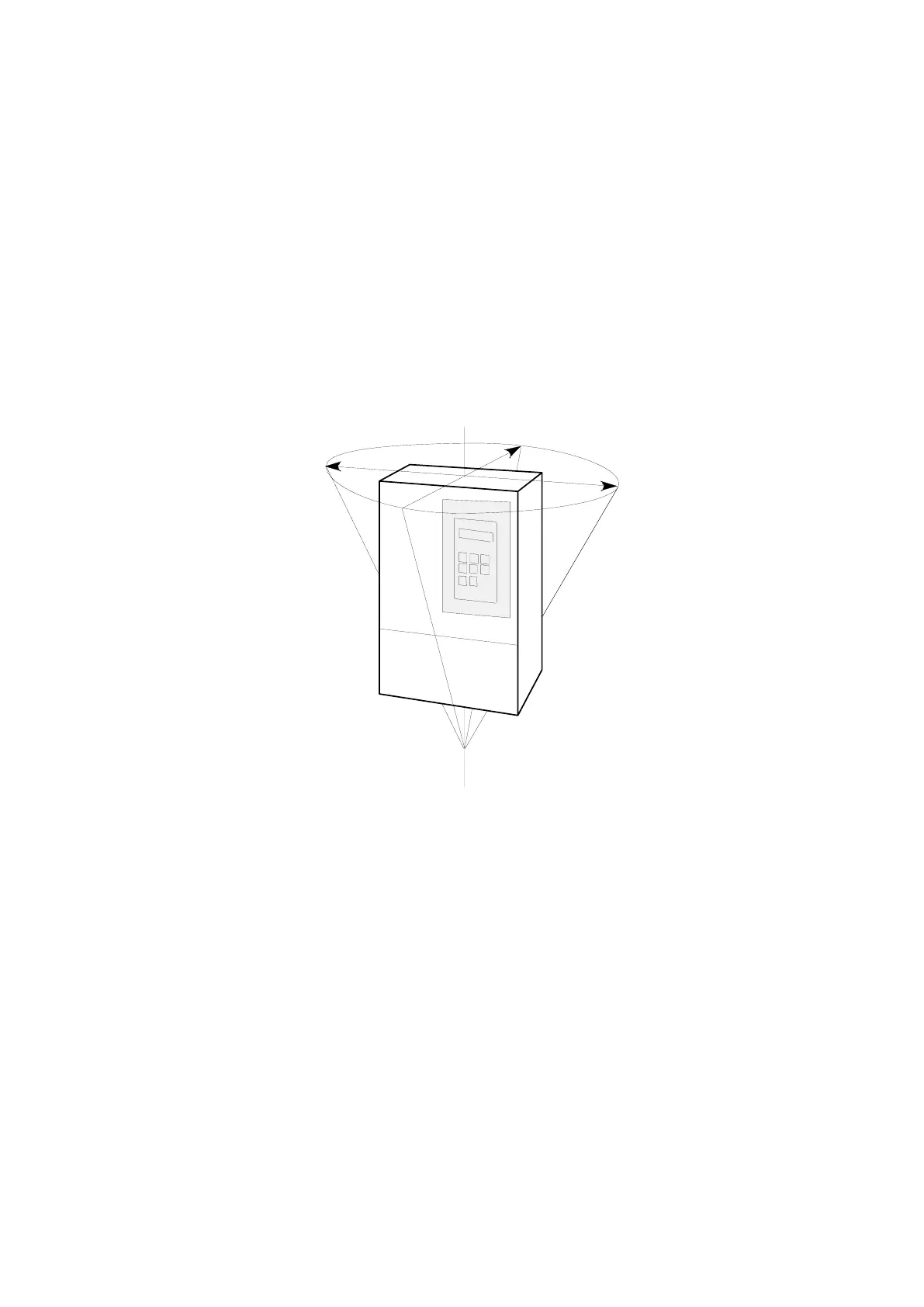

Figure 3.3.1: max Angle of Inclination
Thisequipmentisdesignedforuseinaclean,dryenvironment(see"3.1PermissibleAmbientCondition"on
page60).Itmustnotbepossibleforair-bornecontaminantssuchasoils,corrosivefumesorabrasivematerials
topenetrateinstallationcabinets.
TheIP20orIP00protectionratingdoesnotprotecttheequipmentagainstair-bornecontaminants.
Themaximumangleofinclinationis30°.
Theconvertersmustbemountedinsuchawaythatthefreeowofairisensured.
Theclearancetothedevicemustbeatleast6inches(150mm).
Aspaceofatleast2inches(50mm)mustbeensuredatthefront.
Devicesthatgeneratealargeamountofheatmustnotbemountedinthedirectvicinityofthefrequencyinverter.
note!  Mountingscrewsshouldbere-tightenedafterafewdaysofoperation.
