—————— Instruction manual ——————
79
4.6.2 Fitting the option card

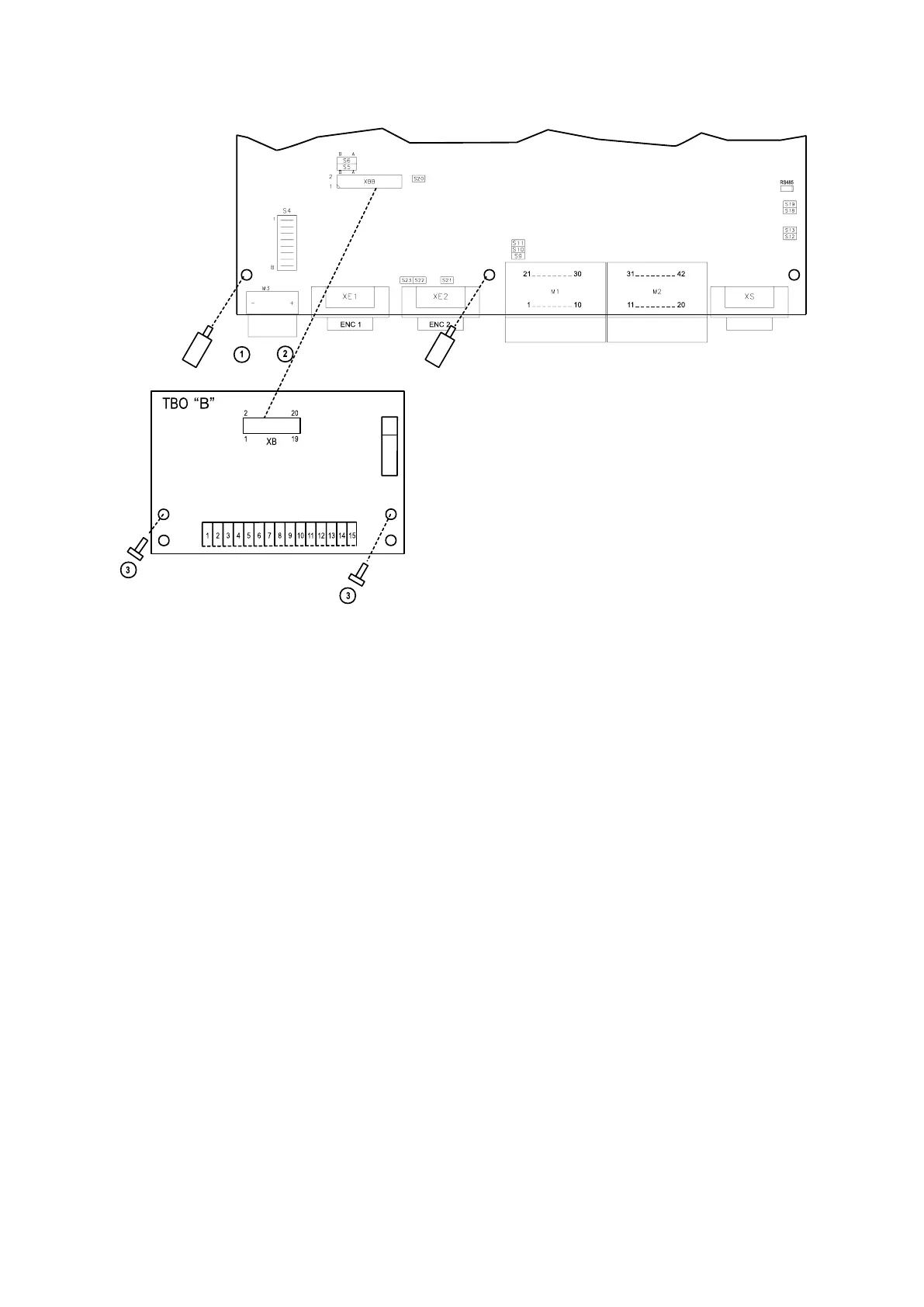

Figure 4.6.2.1: Installing the option card
1
Unscrewtheexistingxingscrewsandscrewthespacersinthethreadedholes
2
Fixtheoptioncard(connectorXBoftheoptionintheconnectorXBBofthedevice).
3
Fixtheoptioncardsonthespacerswiththescrews.
78
