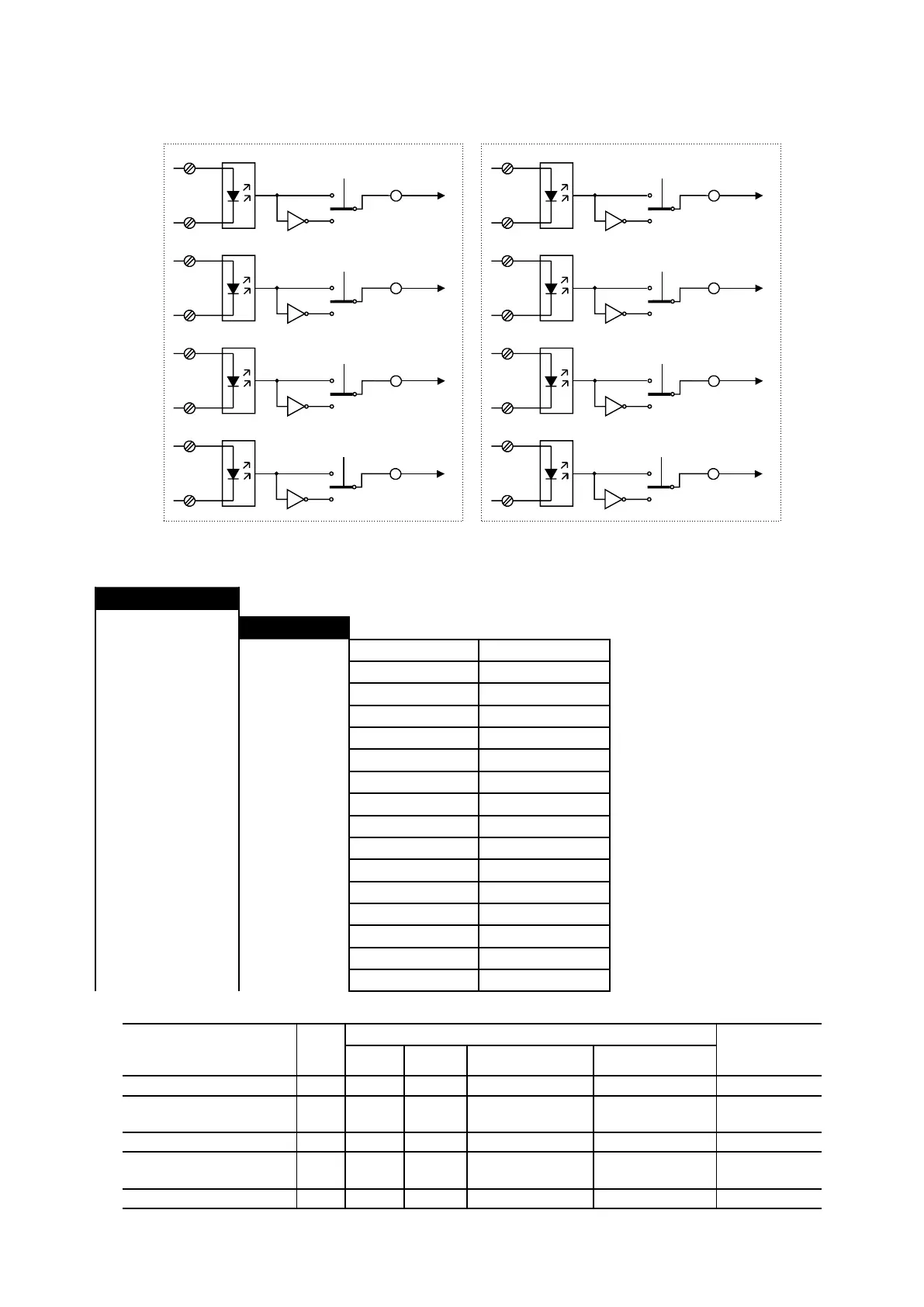

6.12.4 Digital Inputs
**
DG1- DG5-
37 15
DG1+ DG5+
31 11
**
DG2- DG6-
37 15
DG2+ DG6+
32 12
**
DG3- DG7-
37 15
DG3+ DG7+
33 13
**
DG4- DG8-
37 15
DG4+ DG8+
34 14
TBO card pos. “B” (option)
TBO integrated pos. “A”
Digital input 1 Digital input 5
OFF OFF
OFF OFF
OFF OFF
OFF OFF
Digital input 2 Digital input 6
Digital input 3 Digital input 7
Digital input 4 Digital input 8
Inversion out 1 Inversion out 5
Inversion out 2 Inversion out 6
Inversion out 3 Inversion out 7
Inversion out 4 Inversion out 8
Figure 6.12.4.1: Digital inputs
I/O CONFIG
Digital inputs
137 Digitalinput1
[1276] Inversionin1
[138] Digitalinput2
[1277] Inversionin2
[139] Digitalinput3
[1278] Inversionin3
[140] Digitalinput4
[1279] Inversionin4
[141] Digitalinput5
[1280] Inversionin5
[142] Digitalinput6
[1281] Inversionin6
[143] Digitalinput7
[1282] Inversionin7
[144] Digitalinput8
[1283] Inversionin8
Parameter N.
Value
Standard
conguration
min max
factory
America
factory
Standard
Digital input 1
137 0 87 OFF(0) OFF(0)
Inversion in 1
Enabled(1)/Disabled(0))
1267 0 1 Disabled(0) Disabled(0)
Digital input 2
146 0 87 OFF(0) OFF(0)
Inversion in 2
Enabled(1)/Disabled(0)
1268 0 1 Disabled(0) Disabled(0)
Digital input 3
147 0 87 OFF(0) OFF(0)
