2.4 DIMENSION AND WEIGHTS
note!  TPD32-EV-FC-...:referenceshouldbemadetothecorrespondingTPD32-EVStandardsizes.

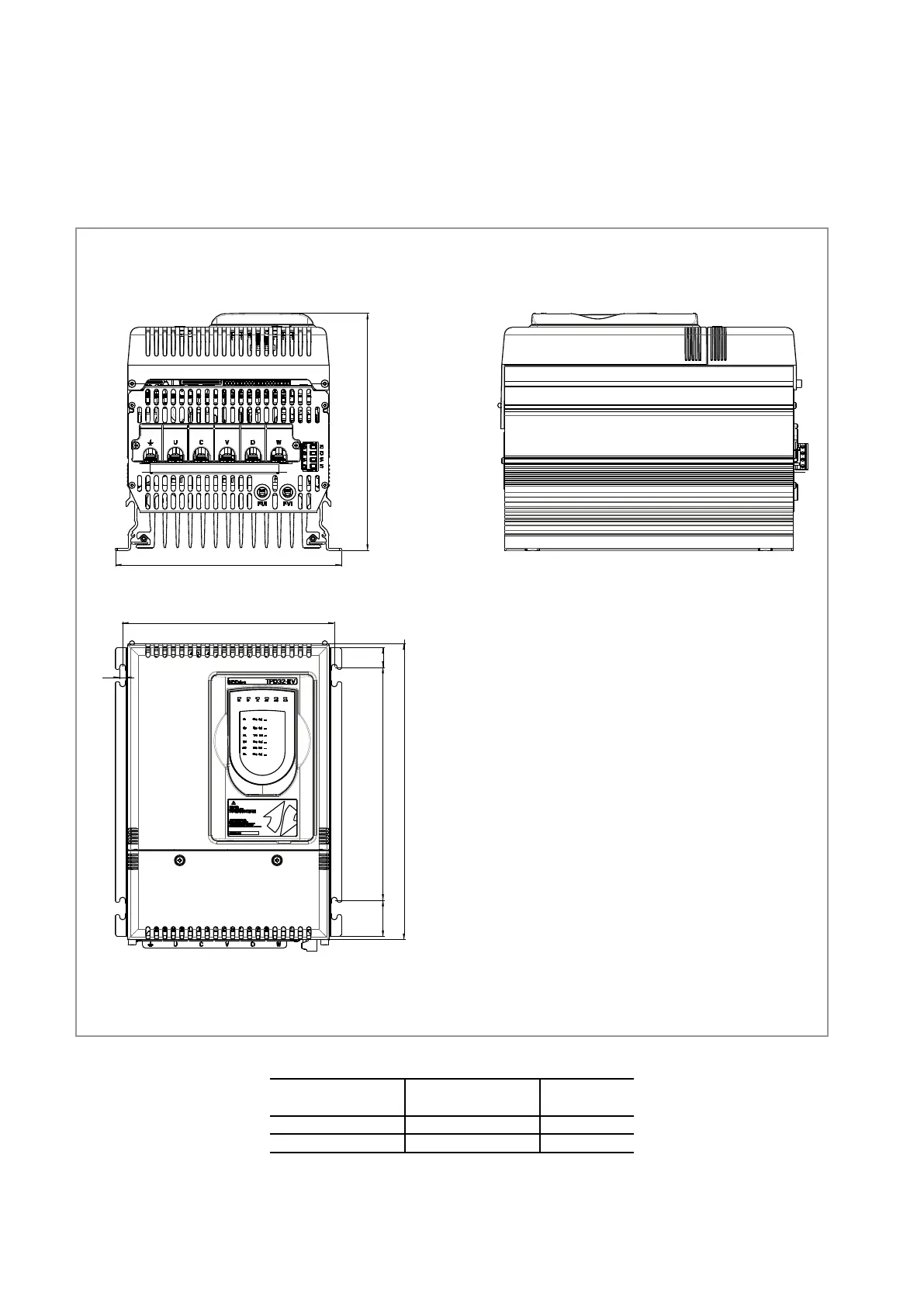

Figure 2.4.1: Type A1 dimensions
250mm [9.84”]
42.8mm 275mm [10.82”]
23.3mm
349.3mm [13.75”]
266.8mm [10.5”]
279.9mm [10,02”]
7mm
American Standard Weight
kg [lbs]
TPD32-EV-.../...-17-..-A TPD32-EV-.../...-20-.. 8.4 [18.5]
TPD32-EV-.../...-35-..-A TPD32-EV-.../...-40-.. 8.4 [18.5]
