—————— Instruction manual ——————
41

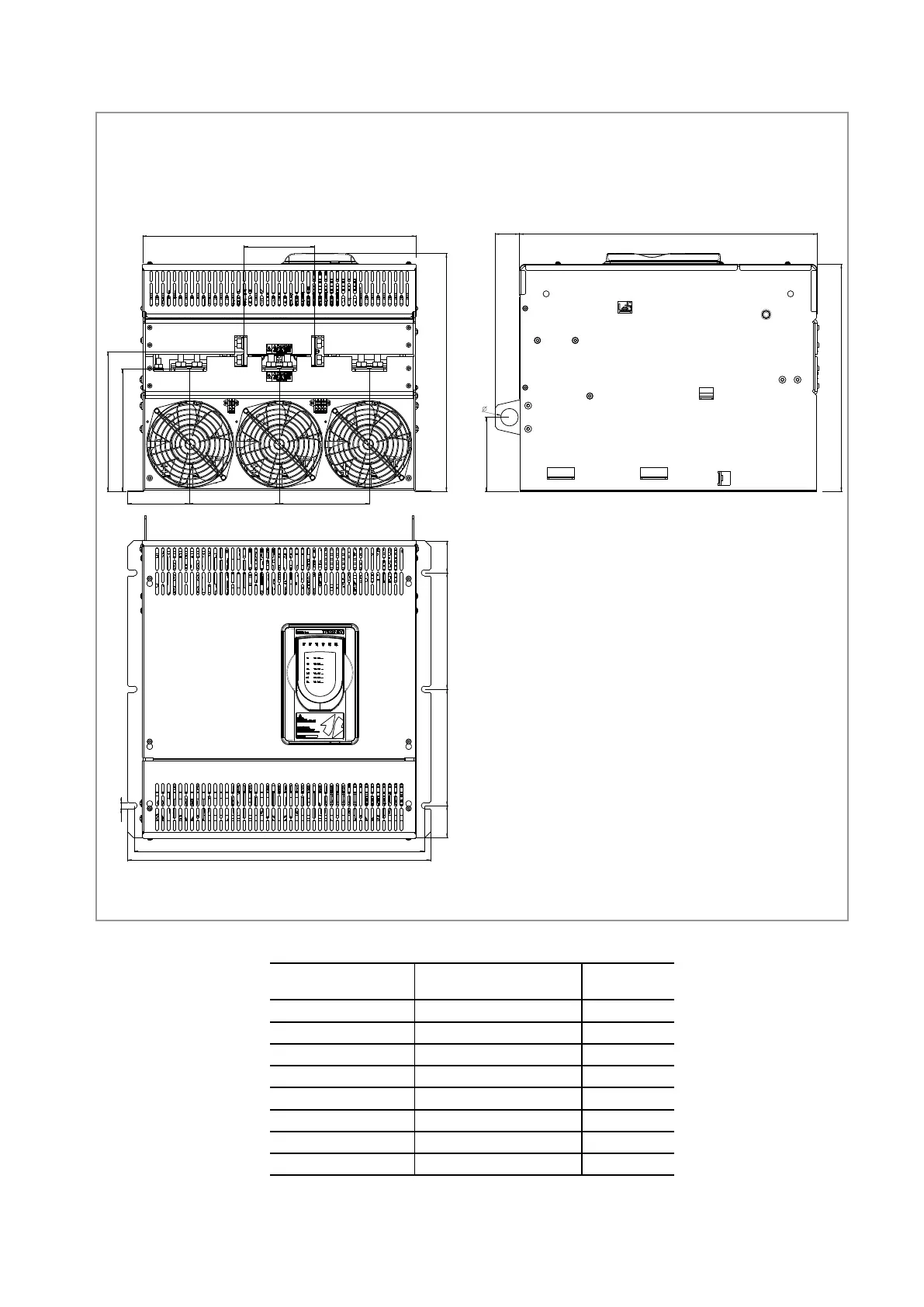

Figure 2.4.6: Type C dimensions
521mm [20.5”]
499mm [19.65”]
M10
55mm 200mm [7.87”]
200mm [7.87”]
55mm
512mm [20.16”]
391mm [15.4”]
42mm
128mm
30
105.5mm 155mm 155mm
211mm
241mm
121mm
470mm [18.5”]
410mm [16.14”]
American Standard Weight
kg [lbs]
TPD32-EV-.../...-360-..-C TPD32-EV-.../...-560-..-C 61 [134.5]
TPD32-EV-.../...-490-..-C TPD32-EV-.../...-700-..-C 61 [134.5]
TPD32-EV-.../...-560-..-C TPD32-EV-.../...-770-..-C 61 [134.5]
TPD32-EV-.../...-650-..-C TPD32-EV-.../...-900-..-C 65 [143.3]
TPD32-EV-.../...-750-..-C TPD32-EV-575/...-1000-..-C 72 [158.7]
TPD32-EV-.../...-750-..-C TPD32-EV-575/...-1050-..-C 72 [158.7]
TPD32-EV-.../...-800-..-C TPD32-EV-500/...-1000-..-C 72 [158.7]
TPD32-EV-.../...-850-..-C TPD32-EV-500/...-1050-..-C 72 [158.7]
