—————— TPD32-EV ——————
246

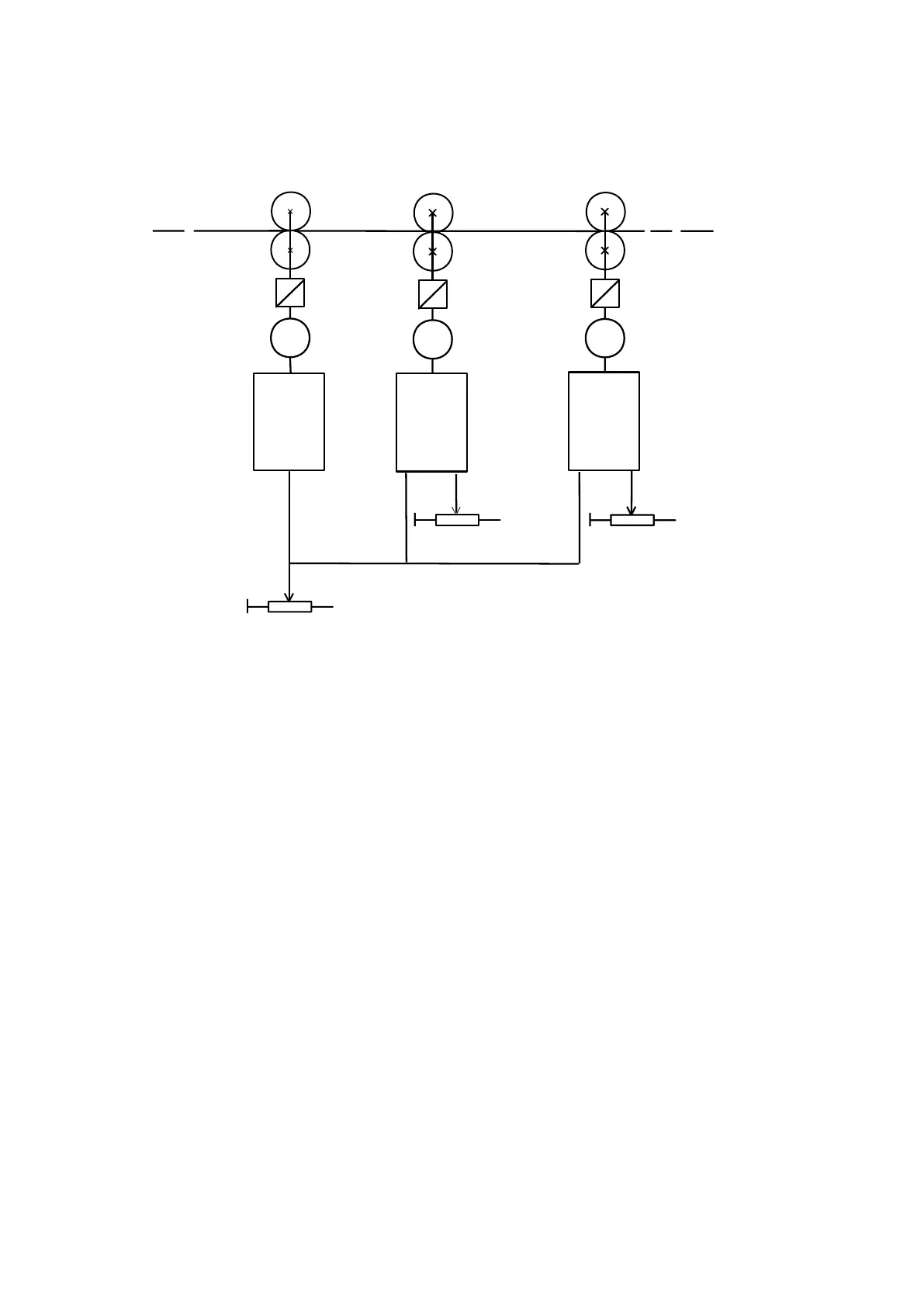

EXAMPLE (RUBBER CALENDER)
Example Setting:
M
DRIVE A
MASTER=1000 rpm
1050 rpm
1100 rpm
+
LINE SPEED
M
DRIVE B
M
DRIVE C
+
Speed Ratio=5.25V
(10500 count)
+
Speed Ratio=5.5V
(11000 count)
Line speed
ratio1=+5%
Line speed
ratio2=+10%
AN. INPUT
1
AN. INPUT
12
AN. INPUT
12
Figure 6.14.5.2: Rubber calender example
DRIVE A (master)
SetAnalog input 1 =Ramp ref 1
DRIVE B
Linespeedratio1=Linespeed+5%
SetAnalog input 1=Ramp ref 1
SetAnalog input 2=Speed ratio
SetSpeed ratioparameter=10500
DRIVE C
Line speed ratio 2=Line speed + 10%
SetAnalog input 1=Ramp ref 1
SetAnalog input 2=Speed ratio
SetSpeed ratioparameter=11000
