Mitsubishi FX3UC Series User Manual

115
FX3UC Series Programmable Controllers
User’s Manual - Hardware Edition
3 Generic Specifications/Installation Work
3.7 How to remove and install memory cassette
1
Outline
2
External Dimensions
3
Generic Specifications
4
Power Supply Specifications
5
Input Specifications
6
Output Specifications
7
Examples of Wiring for Various Uses
8
Terminal Block
9
CC-Link/LT Master FX
3UC
-LT only
10
Display module FX
3UC
-LT only
1
Outline
2
External Dimensions
3
Generic Specifications
4
Power Supply Specifications
5
Input Specifications
6
Output Specifications
7
Examples of Wiring for Various Uses
8
Terminal Block
9
CC-Link/LT Master FX
3UC
(LT only)
10
Display module FX
3UC
(LT only)

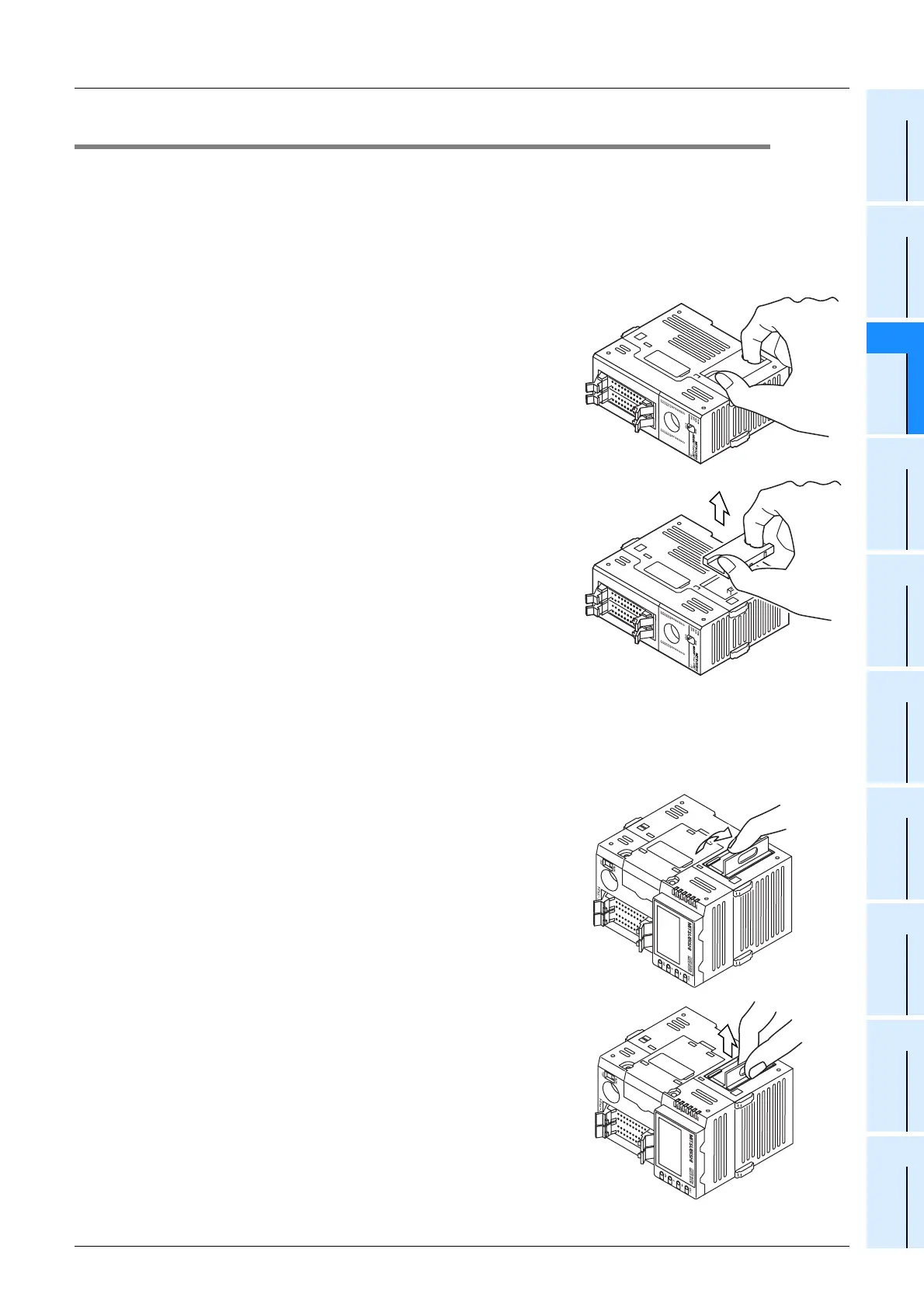

3.7 How to remove and install memory cassette
1. How to remove the memory cassette dummy cover
Note : Some memory cassette dummy covers have the same shape as the memory cassette.
In such a case, refer to "2. How to remove the memory cassette" below.
The figure shows the FX
3UC-32MT/D as an example.
1) Remove the product from the DIN rail.
→ For the removal method, refer to Section 3.3.
2) Hold the memory cassette dummy cover securely as shown
in the figure on the right.
3) Pull the memory cassette dummy cover vertically as shown
in the figure on the right, and remove it.
2. How to remove the memory cassette
Note : The figure shows the FX3UC-32MT-LT as an example.
1) Remove the product from the DIN rail.
→ For the removal method, refer to Section 3.3.
2) Raise the removal lever of the memory cassette (or memory
cassette dummy cover) with your nail as shown in the figure
on the right.
3) Pick and pull the removal lever vertically as shown in the
figure on the right, and remove the memory cassette (or
memory cassette dummy cover).
Caution:
Do not twist the removal lever when removing the memory
cassette (or memory cassette dummy cover).
