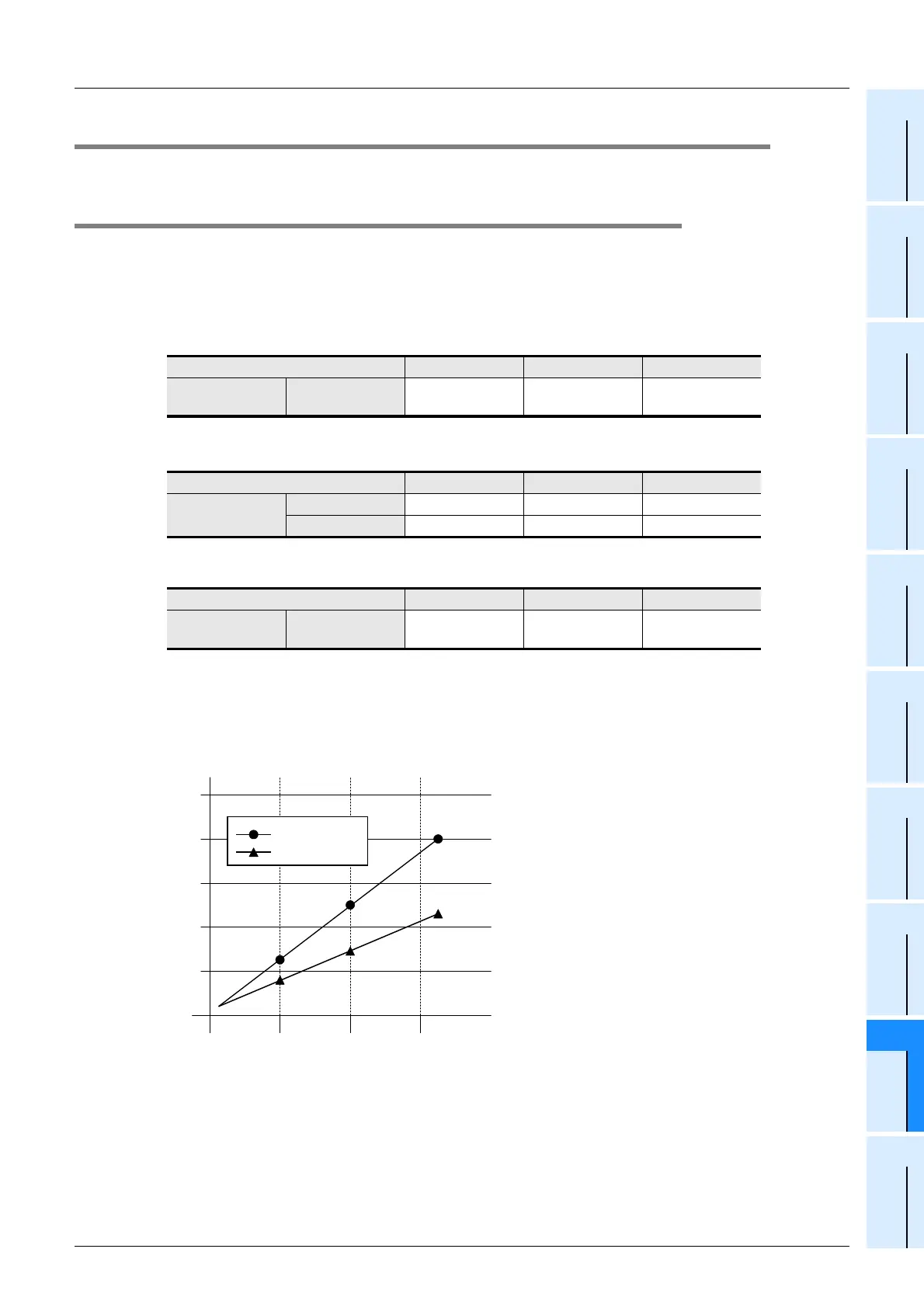

9.16 Data Link Processing Time
This section explains the link scan time and transmission delay time.
9.16.1 Link scan time
This paragraph explains the link scan time for the CC-Link/LT network.
1. Calculation formula
Link scan time[µs] = a + (b × N) × c
1) a: Constant
Depends on the transmission speed
2) b: Constant
Depends on the transmission speed and point mode
3) c: Constant
Depends on the transmission speed
4) N: Final station number
As shown in the formula above, if the number of stations is held constant, the link scan time is
shorter in 4-point mode than in 16-point mode.
2. Graph
Transmission speed 2.5Mbps 625kbps 156kbps
Value a
4-point, 16-point
mode
22 88 353
Transmission speed 2.5Mbps 625kbps 156kbps
Value b
4-point mode 46 41 37
16-point mode 76 71 67
Transmission speed 2.5Mbps 625kbps 156kbps
Value c
4-point, 16-point
mode
0.4 1.6 6.4
0 204060
Number of
stations
0
0.5
1.0
1.5
2.0
2.5
16-point mode
4-point mode
Link scan time (ms)
Link scan time (at 2.5 Mbps)
