FX3UC Series Programmable Controllers
User’s Manual - Hardware Edition

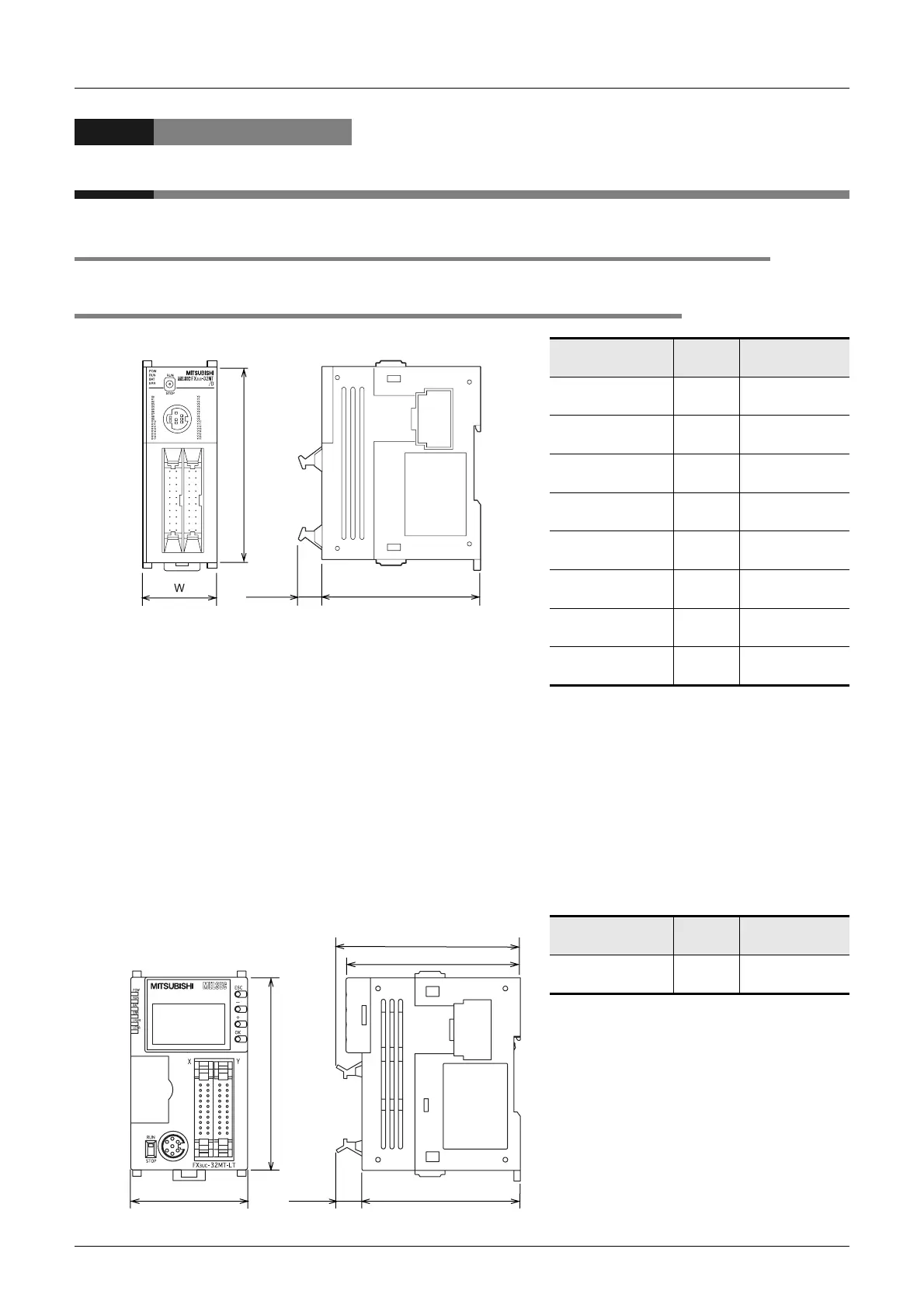

2 External Dimensions and Terminal Arrangement
2.1 External Dimensions (MASS/Installation/Accessories)
2. External Dimensions and Terminal Arrangement
2.1 External Dimensions (MASS/Installation/Accessories)
2.1.1 Main Units
• Installation: DIN rail of 35mm (1.38") in
width only
• Accessories:
1) FX
3UC-MT/D
FX
2NC-100MPCB power cable
FX
2NC-100BPCB power cable
Manual supplied with product
2) FX
3UC-MT/DSS
FX
2NC-100MPCB power cable
Manual supplied with product
• Installation: DIN rail of 35mm (1.38") in
width only
• Accessories:
FX2NC-100MPCB power cable
FX
2NC-100BPCB power cable
Manual supplied with product
Model name
W:mm
(inches)
MASS(Weight):
kg (lbs)
FX
3UC-16MT/D
34.0
(1.34")
0.2
(0.44lbs)
FX
3UC-32MT/D
34.0
(1.34")
0.2
(0.44lbs)
FX
3UC-64MT/D
59.7
(2.36")
0.3
(0.66lbs)
FX
3UC-96MT/D
85.4
(3.37")
0.35
(0.77lbs)
FX
3UC-16MT/DSS
34.0
(1.34")
0.2
(0.44lbs)
FX
3UC-32MT/DSS
34.0
(1.34")
0.2
(0.44lbs)
FX
3UC-64MT/DSS
59.7
(2.36")
0.3
(0.66lbs)
FX
3UC-96MT/DSS
85.4
(3.37")
0.35
(0.77lbs)
Model name
W:mm
(inches)
MASS(Weight):
kg (lbs)
FX
3UC-32MT-LT
55
(2.17")
0.25
(0.55lbs)
74(2.92")(13)
(0.52")
90(3.55")
Unit:mm (inches)
74(2.92")
W:55(2.17")
90(3.55")
13
(0.52")
87(3.43")
Unit:mm (inches)
83(3.27")
