FX3UC Series Programmable Controllers
User’s Manual - Hardware Edition
3 Generic Specifications/Installation Work
3.9 Connection to peripheral device connecting connector
3.9 Connection to peripheral device connecting connector

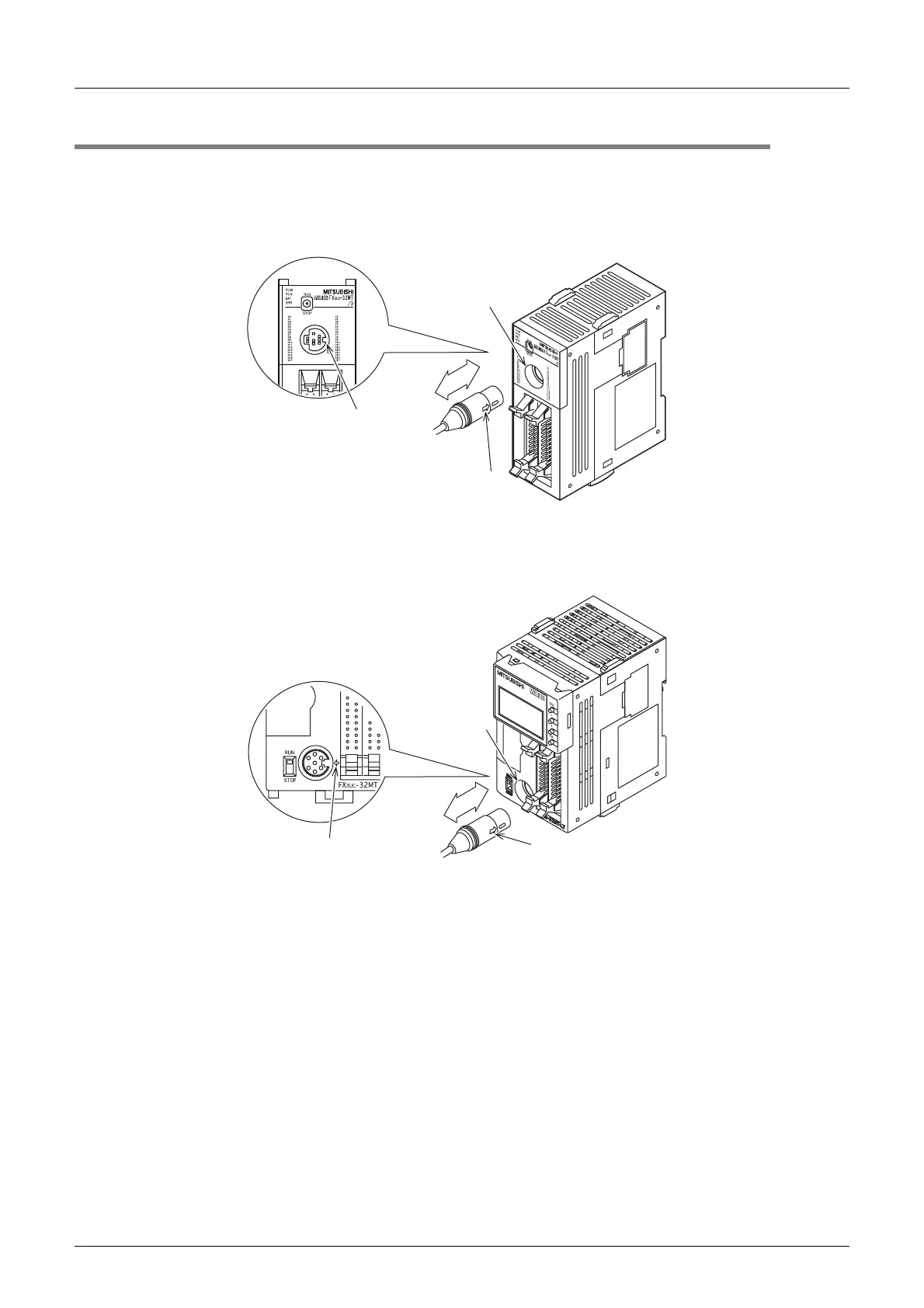

This section explains how to connect and disconnect communication cables for peripheral devices.
1. FX3UC-MT/D, DSS
When connecting a communication cable, align the "positioning mark" in the cable with the "connector notch"
in the peripheral device.
2. FX3UC-32MT-LT
When connecting the communication cable of a peripheral device, align the positioning mark of the cable with
that of the main unit.
connecting connector
Positioning mark
Connector notch
Communication
cable
Peripheral device
Programming
Positioning mark
Positioning mark
Communication cable
connector
