FX3UC Series Programmable Controllers
User’s Manual - Hardware Edition
A Version Information and Peripheral Equipment Connect ability
A-2 Programming Tool Applicability
11
Memory Cassette/Battery
12
Test Run, Maintenance, Troubleshooting
A
Version Information
B
Performance Specifications
C
Special Devices (M8000 -,D8000 -)
D
Instruction List
E
Character-code
F
Discontinued models

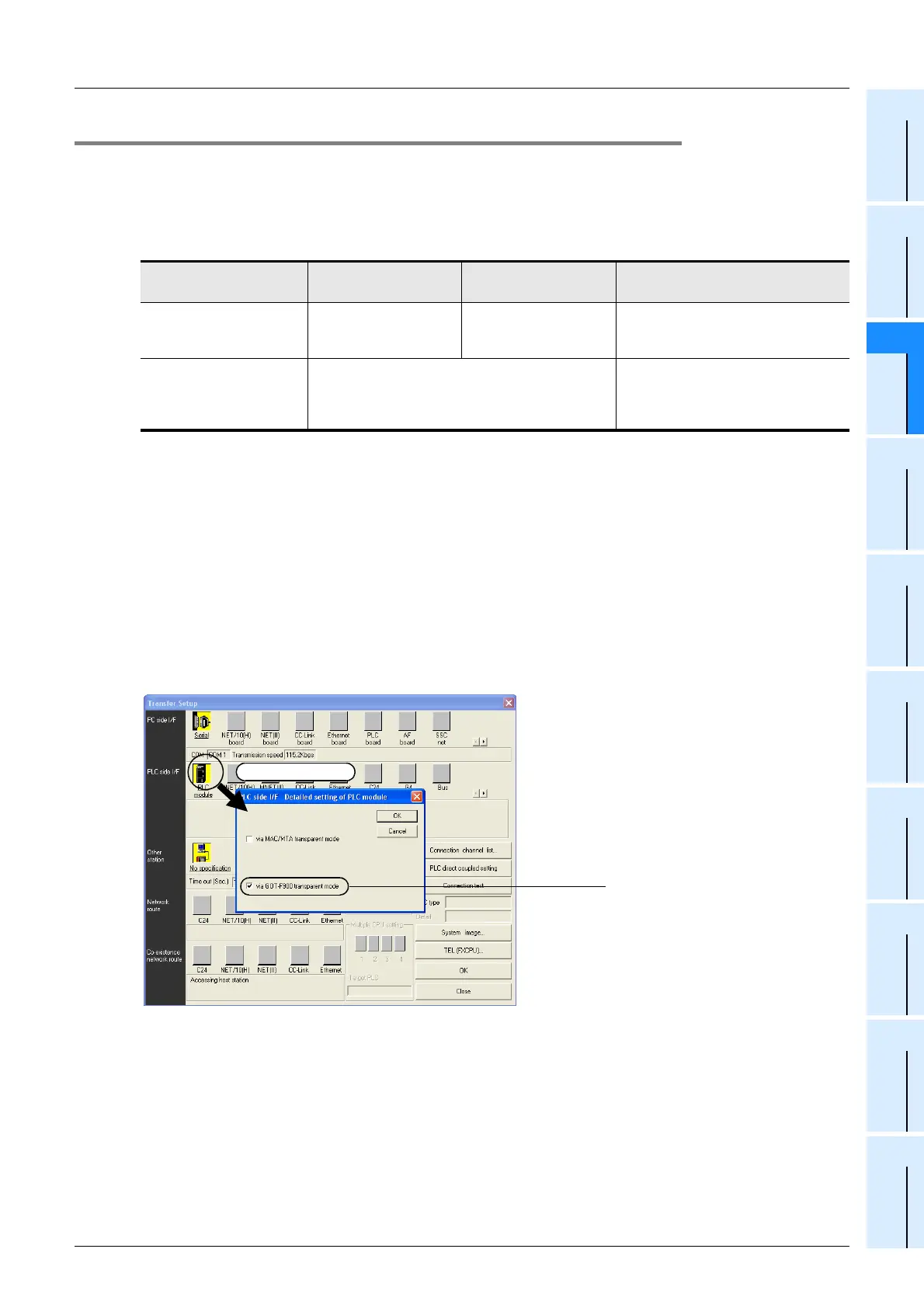

Appendix A-2-7 Cautions on using transparent port (2-port) function of GOT-F900 Series
When monitoring circuits, device registration, etc. in an FX3UC PLC from GX Developer Ver. 8.13P or later
using the transparent (2-port) function in the GOT-F900 Series, make sure to execute the following setting.
• If the following setting is not provided, monitoring cannot be executed normally.
• This setting is not necessary when the FX
3UC Series PLC is directly connected to GX Developer for
monitoring without using the transparent function of the GOT-F900 Series.
*1. GX Developer Ver.8.13P or later supports the FX
3UC Series.
Setting in GX Developer (Ver.8.13P or later)
1 Select [Online] → [Transfer setup...] to open the "Transfer Setup" dialog box.
2 Double-click [PLC module] in [PLC side I/F] to open the [PLC side I/F Detailed
setting of PLC module] dialog box.
3 Put a check mark to the check box [via GOT-F900 transparent mode] as
shown below.
4 Click the [OK] button to finish the setting.
GX Developer
Ver.8.12N or earlier
*1
GX Developer
Ver.8.13P or later
GX Developer Ver.8.22Y or later
When using transparent
function in GOT-F900
Series
Setting shown below is
required.
Setting shown below is
not required.
Select "RS-232C" on "PC side I/F
Serial setting" dialog box, and
execute setting shown below.
When directly
connecting GX Developer
to PLC
Set "COM port" and "Transmission speed" on "PC
side I/F Serial setting" dialog box.
Select "RS-232C" on "PC side I/F
Serial setting" dialog box, and set
"COM port" and "Transmission
speed."
Double-click it.
Put a check mark to the
check box "via GOT-F900
transparent mode."
