FX3UC Series Programmable Controllers
User’s Manual - Hardware Edition

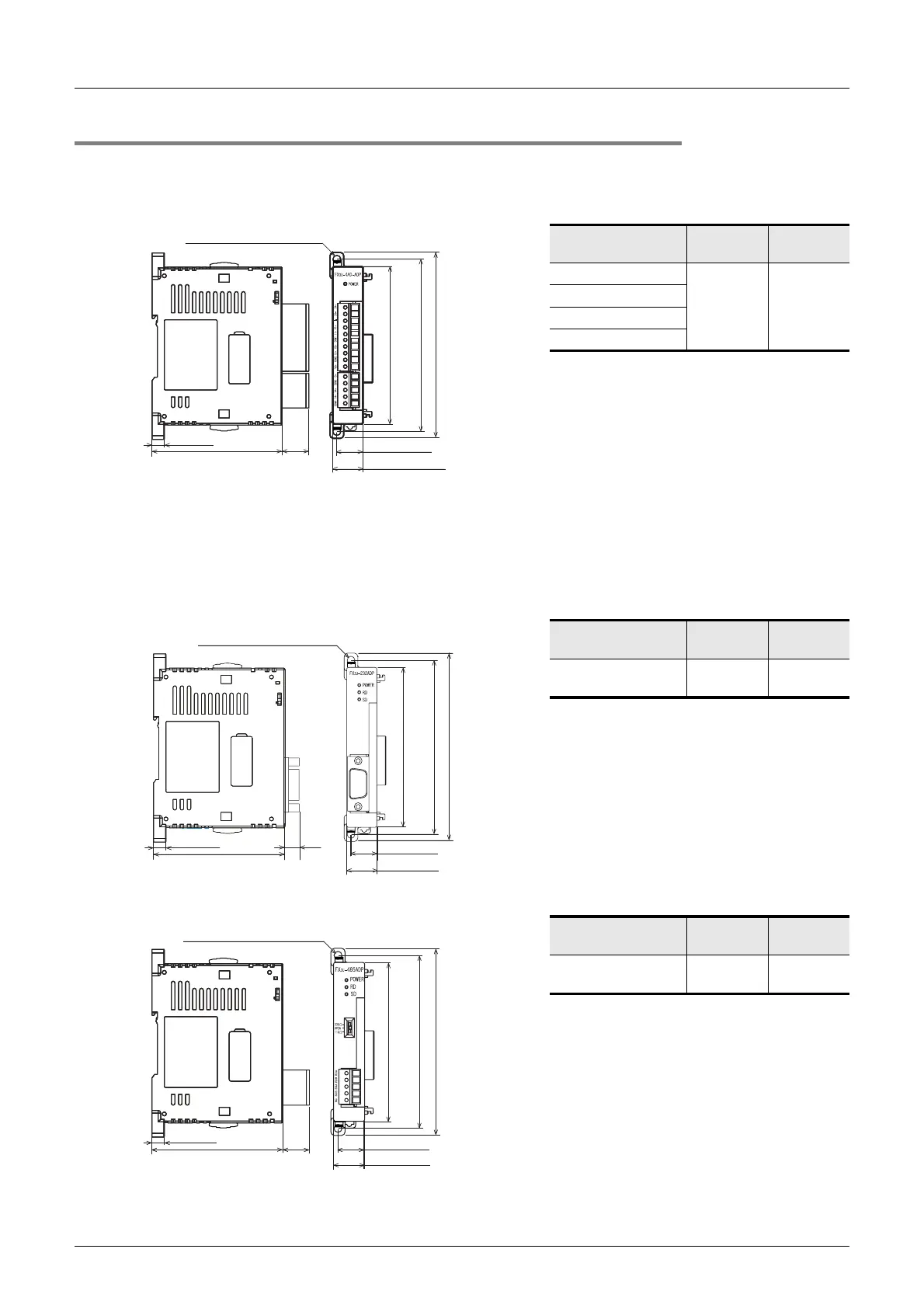

2 External Dimensions and Terminal Arrangement
2.1 External Dimensions (MASS/Installation/Accessories)
2.1.7 Special adapters
1. Analog special adapter
FX3U-4AD-ADP/FX3U-4DA-ADP/FX3U-4AD-PT-ADP/FX3U-4AD-TC-ADP
• Installation: DIN rail of 35 mm (1.38") in
width or screws
*1
• Accessories: Manual supplied with
product
• Terminal block: European type
*1.When an analog special adapter is
connected to the FX
3UC PLC, direct
screw mounting is not possible.
2. Communication special adapter
FX3U-232ADP(-MB)
• Installation: DIN rail of 35 mm (1.38") in
width or screws
*1
• Accessories: Manual supplied with
product
• RS-232C connector: D-SUB 9-pin, male
*1.When the FX
3U-232ADP(-MB) is connected
to the FX
3UC PLC, direct screw mounting is
not possible.
FX
3U-485ADP(-MB)
• Installation: DIN rail of 35 mm (1.38") in
width or screws
*1
• Accessories: Label for indication of link
station number, Manual
supplied with product
• Terminal block: European type
• Terminal resistance: 330Ω/110Ω, built-in
*1.When the FX
3U-485ADP(-MB) is connected
to the FX
3UC PLC, direct screw mounting is
not possible.
Model name W(mm)
MASS
(Weight)
FX
3U-4AD-ADP
17.6
(0.70")
0.1
(0.22lbs)
FX
3U-4DA-ADP
FX
3U-4AD-PT-ADP
FX
3U-4AD-TC-ADP
Model name W(mm)
MASS
(Weight)
FX
3U-232ADP(-MB)
17.6
(0.70")
80
(0.18lbs)
Model name W(mm)
MASS
(Weight)
FX
3U-485ADP(-MB)
17.6
(0.70")
80
(0.18lbs)
7(0.28")
15.1(0.60")
W:17.6(0.70")
98(3.86")
(mounting hole pitch)
90(3.55")
106(4.18")
Unit:mm (inches)
74
(2.92")
15.5
(0.62")
2-φ4.5 mounting holes
*1
7(0.28")
15.1(0.60")
17.6(0.70")
98(3.86")
(mounting hole pitch)
90(3.55")
106(4.18")
Unit:mm (inches)
74
(2.92")
7.5
(0.30")
2-φ4.5 mounting holes
*1
7(0.28")
15.1(0.60")
17.6(0.70")
98(3.86")
(mounting hole pitch)
90(3.55")
106(4.18")
Unit:mm (inches)
74
(2.92")
15.5
(0.62")
2-φ4.5 mounting holes
*1
