FX3UC Series Programmable Controllers
User’s Manual - Hardware Edition
2 External Dimensions and Terminal Arrangement

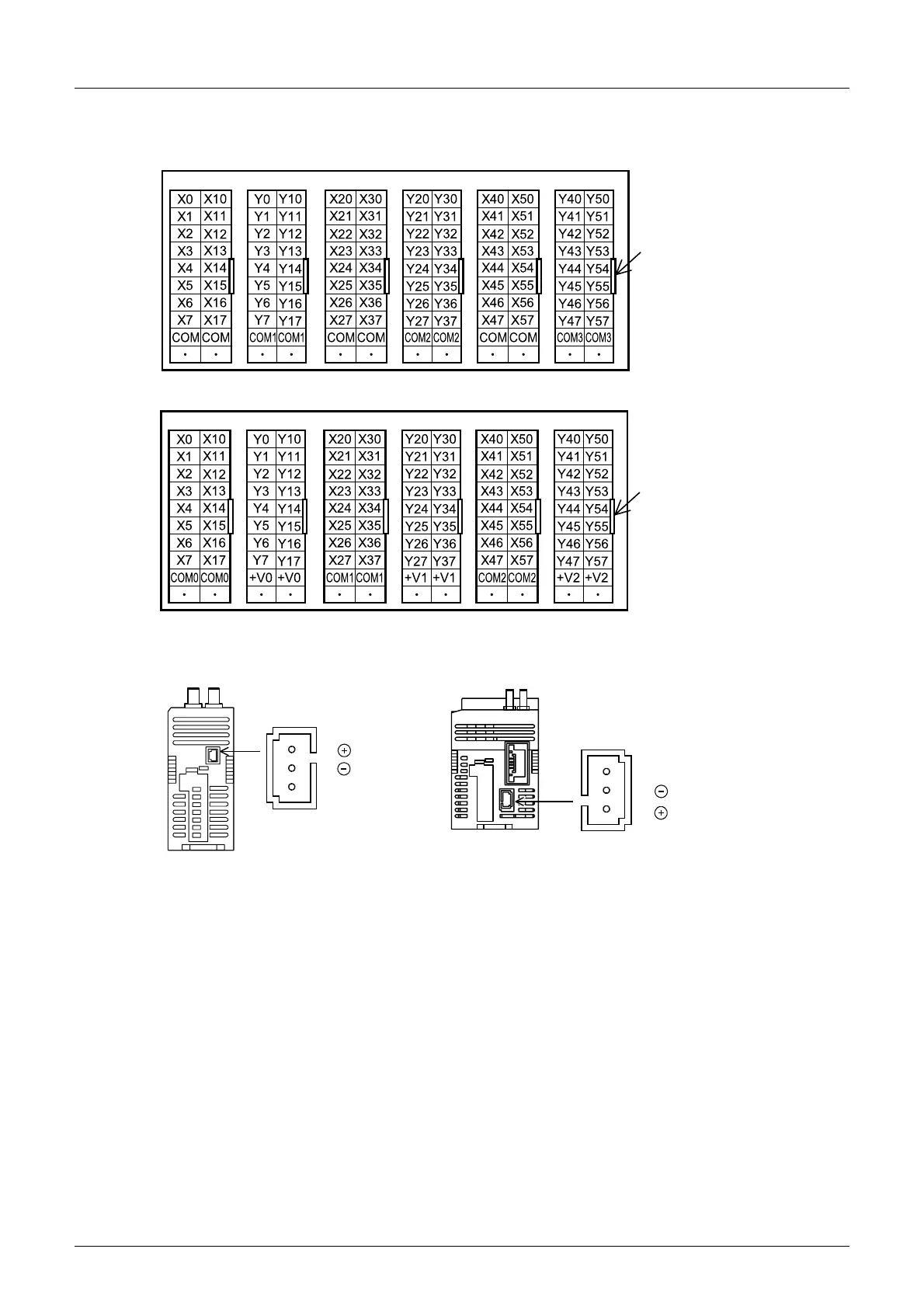

2.2 Terminal layout
4. FX3UC-96MT/D, FX3UC-96MT/DSS
5. FX3UC-MT/D, DSS and FX3UC-32MT-LT power connector
•FX3UC-96MT/D
•FX
3UC-96MT/DSS
•FX
3UC-MT/D, DSS • FX3UC-32MT-LT
Input OutputInput OutputInput Output
Notch
Input OutputInput OutputInput Output
Notch
Power supply
3 Ground
(Green)
1 (Red)
2 (Black)
Power supply
3 Ground
(Green)
1 (Red)
2 (Black)
