2 External Dimensions and Terminal Arrangement
2.1 External Dimensions (MASS/Installation/Accessories)

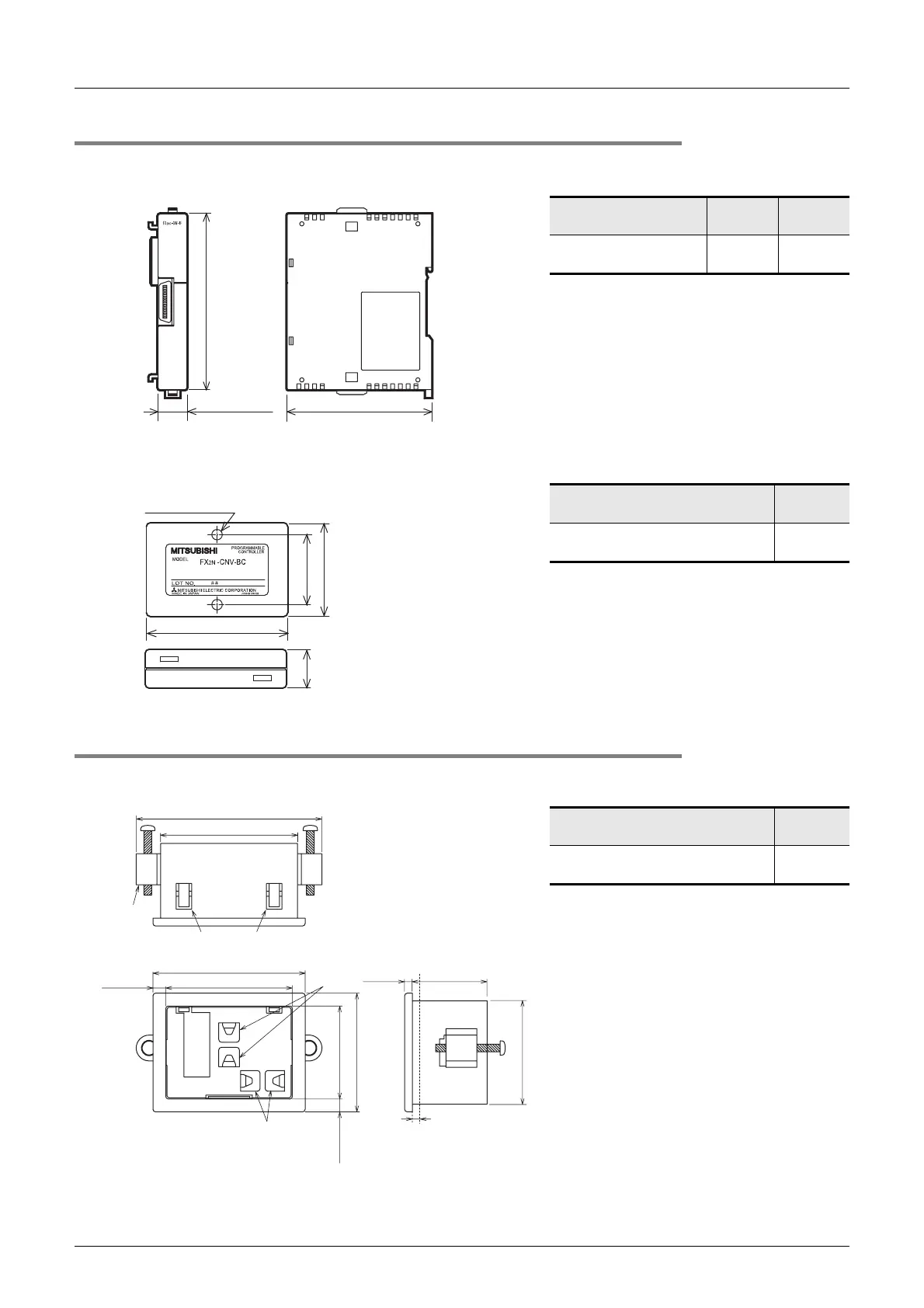

2.1.9 Connector conversion adapter
1. FX2NC-CNV-IF
• Installation: DIN rail of 35mm (1.38") in
width only
2. FX2N-CNV-BC
• Installation: Direct mounting only
2.1.10 Option
FX3U-7DM-HLD
• Accessories: PLC cover,
Mounting bracket × 2
pieces,
Tightening bolt
(M4 × 25) × 2 pieces,
Extension cable with ferrite
core (1.4m(4’7")),
Clamp A × 5 pieces,
Clamp B × 1 piece,
Cable tie × 1 piece,
Manual supplied with
product
Model name W(mm)
MASS
(Weight)
FX
2NC-CNV-IF
14.6
(0.58")
60
(0.14lbs)
Model name
MASS
(Weight)
FX
2N-CNV-BC
40
(0.09lbs)
Model name
MASS
(Weight)
FX
3U-7DM-HLD
20
(0.05lbs)
74(2.92")
90(3.55")
Unit:mm (inches)
W:14.6(0.58")
60.5(2.39")
30(1.19") 40(1.58")
Unit:mm (inches)
16.4
(0.65")
2-φ3.2
mounting holes
70 (2.76")
53 (2.09")
59 (2.33")
28 (1.11")
4
(0.16")
49 (1.93")
36 (1.42") 46 (1.82") 40 (1.58")
5 (0.20")
5 (0.20")
Panel thickness must be
between 1 and 5 mm
(0.04" and 0.19").
Guides
Mounting
bracket
Display module fixing hooks
Guides
Unit:mm (inches)
