FX3UC Series Programmable Controllers
User’s Manual - Hardware Edition
2 External Dimensions and Terminal Arrangement
2.1 External Dimensions (MASS/Installation/Accessories)
1
Outline
2
External Dimensions
3
Generic Specifications
4
Power Supply Specifications
5
Input Specifications
6
Output Specifications
7
Examples of Wiring for Various Uses
8
Terminal Block
9
CC-Link/LT Master FX
3UC
(LT only)
10
Display module FX
3UC
(LT only)

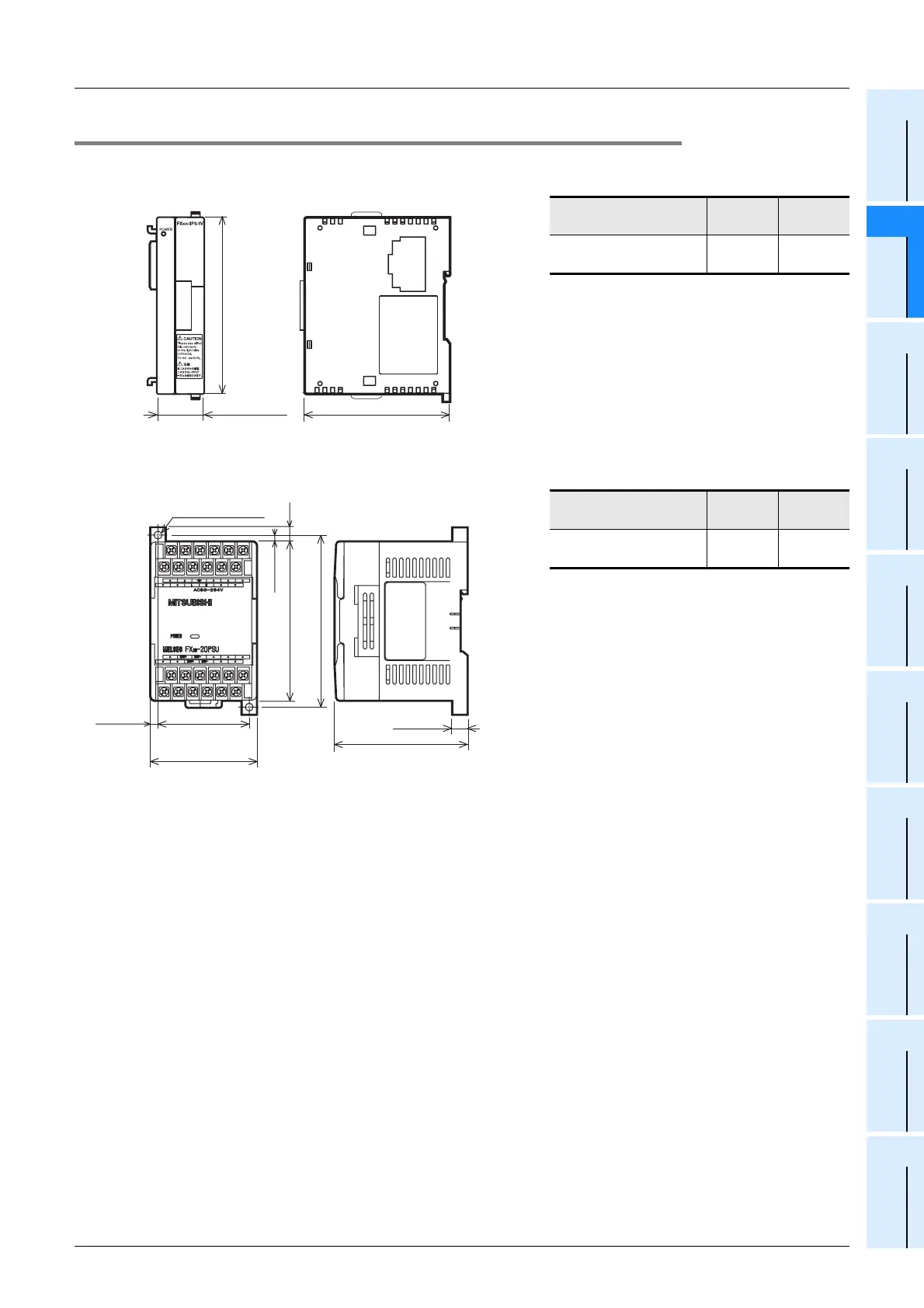

2.1.8 Power supply unit
1. Extension Power Supply Unit
• Installation: DIN rail of 35mm (1.38") in
width only
• Accessories: FX
2NC-100MPCB Power
supply cable, Manual
supplied with product
2. 24V DC power supply unit
• Installation: DIN rail of 35 mm (1.38") in
width or screws
• Accessories: Manual supplied with
product
• Terminal block: M3.5 screws
Model name W(mm)
MASS
(Weight)
FX
3UC-1PS-5V
24.2
(0.96")
0.15
(0.33lbs)
Model name W(mm)
MASS
(Weight)
FX
2N-20PSU
60
(2.37")
0.3
(0.66lbs)
W:24.2(0.96") 74(2.92")
90(3.55")
Unit:mm (inches)
75(2.96")
98(3.86")
(mounting hole pitch)
90(3.55")
Unit:mm (inches)
52(2.05")
(mounting hole pitch)
9(0.36")
W:60(2.37")
2-φ4.5
mounting holes
4(0.16")
4(0.16")
7.5 (0.3")
