Appendix A-2-4 Cautions on connecting peripheral equipment by way of expansion board
or special adapter.
When connecting peripheral equipment (programming tool or GOT [CPU direct connection]) by way of the
FX
3U-232-BD, FX3U-422-BD, FX3U-USB-BD or FX3U-232ADP(-MB), set the connection channel (CH1 or
CH2) as follows. If the connection channel is not specified with the status below, communication error may
occur in the connected peripheral equipment.
→ For details, refer to the Data Communication Edition.
- Set to "K0" the special data register for communication format setting of the channel connecting the
peripheral equipment (CH1: D8400 or D8120, CH2: 8420).

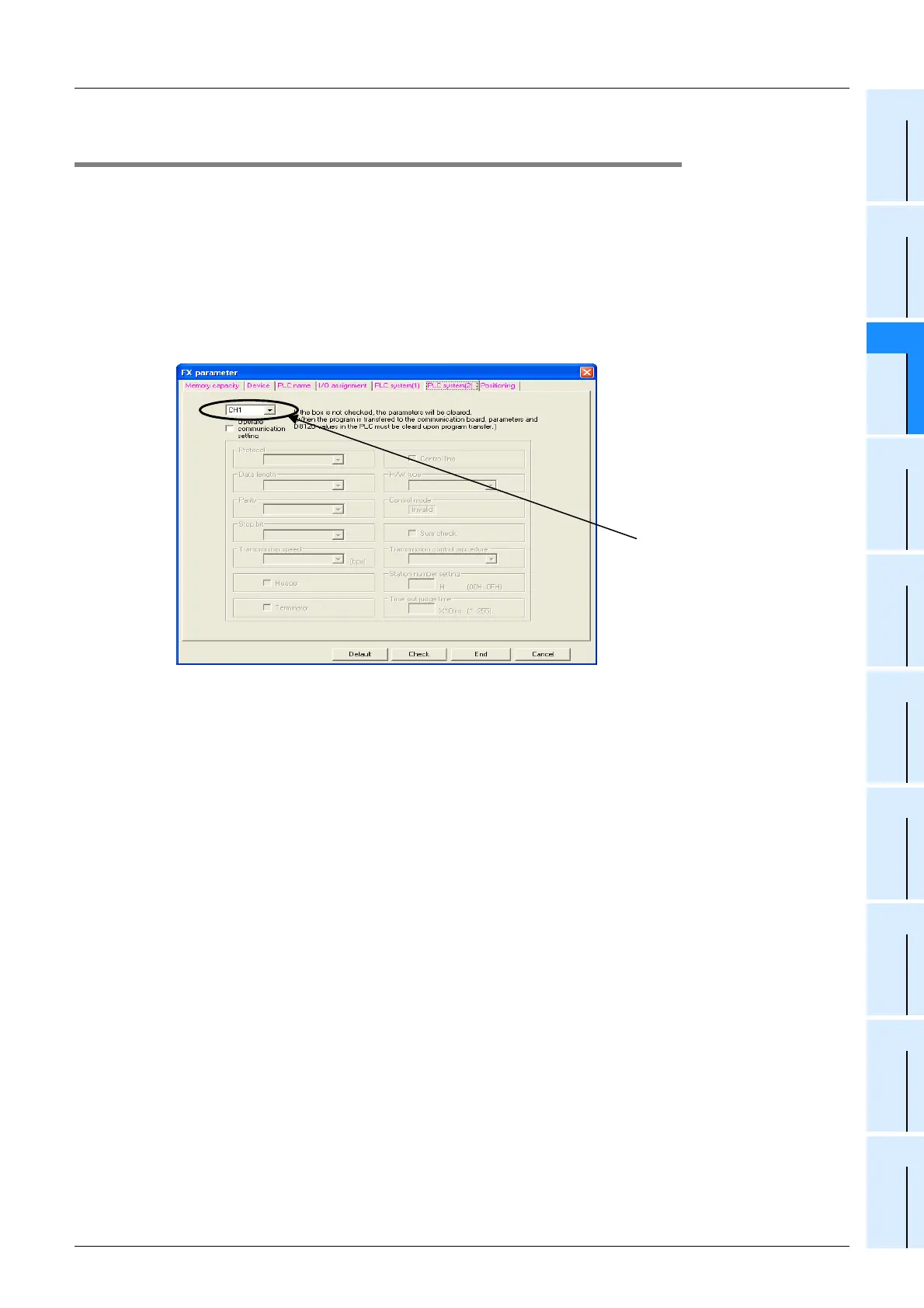

- Set the communication parameter "PLC system [2]" of the channel connecting the peripheral equipment
to "Not set" (as shown in the window below).
Leave this unchecked.
