FX3UC Series Programmable Controllers
User’s Manual - Hardware Edition
10 Display Module (Only FX3UC-32MT-LT)
10.21 User Message Display Function
1
Outline
2
External Dimensions
3
Generic Specifications
4
Power Supply Specifications
5
Input Specifications
6
Output Specifications
7
Examples of Wiring for Various Uses
8
Terminal Block
9
CC-Link/LT Master FX
3UC
(LT only)
10
Display module FX
3UC
(LT only)

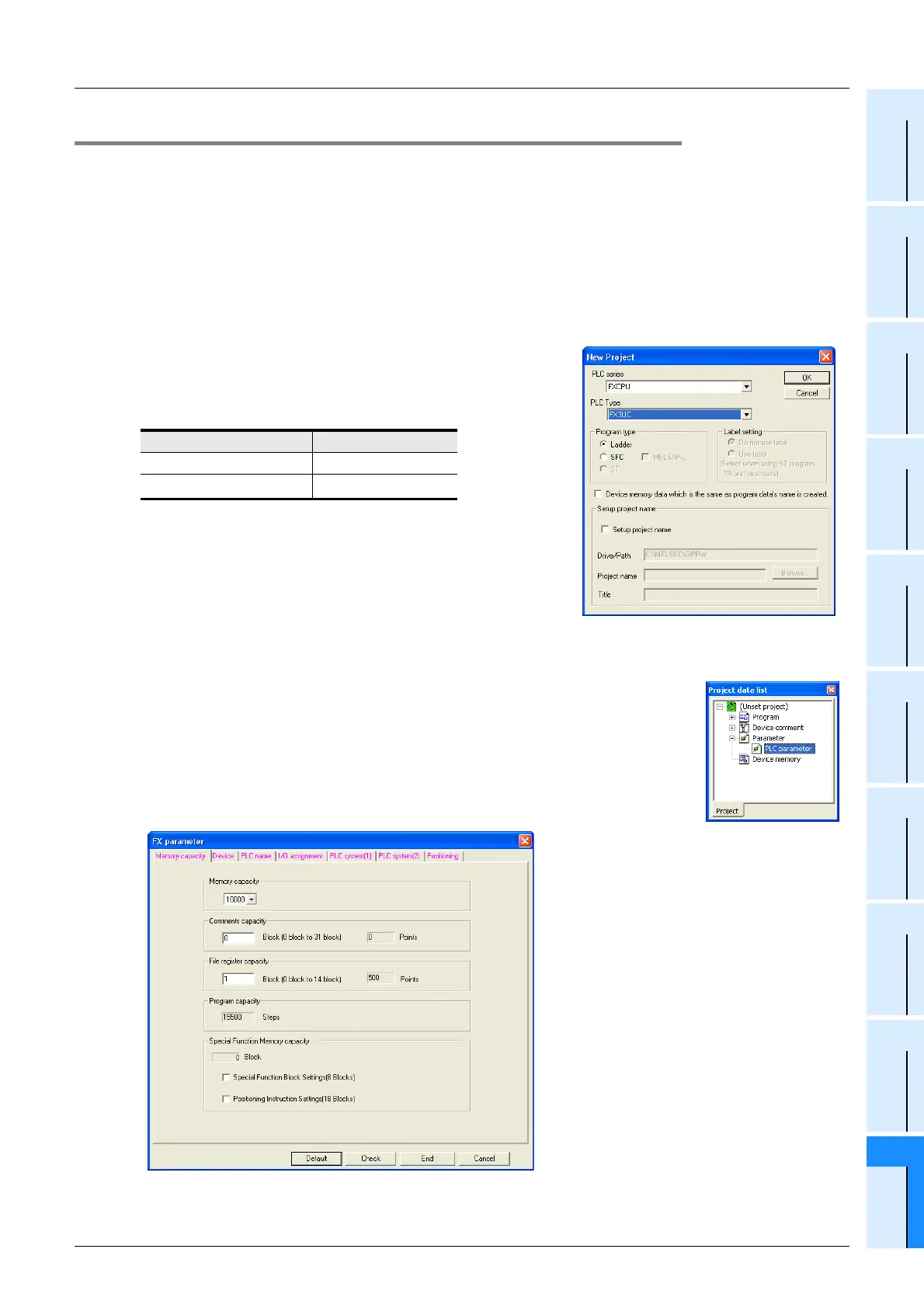

10.21.7 Character data input procedure
User messages are entered and assigned to file registers in advance, using GX Developer.
Messages are displayed by a file register → data register transfer, with the message being created in place of
the numeric values, etc.
32 data register points are assigned to each message.
1 Starting GX Developer
To start up GX Developer, click the Windows
®
[Start] button, then click [Programs] - [MELSOFT
Application] - [GX Developer].
2 Setting The PLC Model Name
Set the "PLC series" and the "PLC Type" settings as
shown below.
*1. For Ver.8.13P to 8.24A of GX Developer, the PLC type is
FX3UC.
3 Parameter Settings
To specify the parameter settings, select "PLC parameter" from the project
data list.
If the project data list does not display, click the toolbar’s [Display] - [Project
data list] items.
Click the "Memory capacity" tab to perform file register assignments.
Required Setting Items Setting Content
PLC series FXCPU
PLC Type
FX3U(C)
*1
*
