1 Outline
1.8 Number of Input/Output Points and Maximum Number of Input/Output Points
1.8.3 Maximum number of input/output points when AS-i master is used
1. Calculation of maximum number of input/output points
The maximum number of input/output points available is as follows when the FX3UC-32MT-LT Ver. 2.20 or
later, FX
3UC-MT/D or FX3UC-MT/DSS and an AS-i master block are used.
→ For the method of calculating the number of I/O points, refer to Subsection 1.8.1.
*1. Up to 31 slaves can be connected to the AS-i system master block.
The maximum number is calculated by the formula "8 points × number of slaves" regardless of the
number of I/O points used on one slave.
For details, refer to the AS-i System User’s Manual.

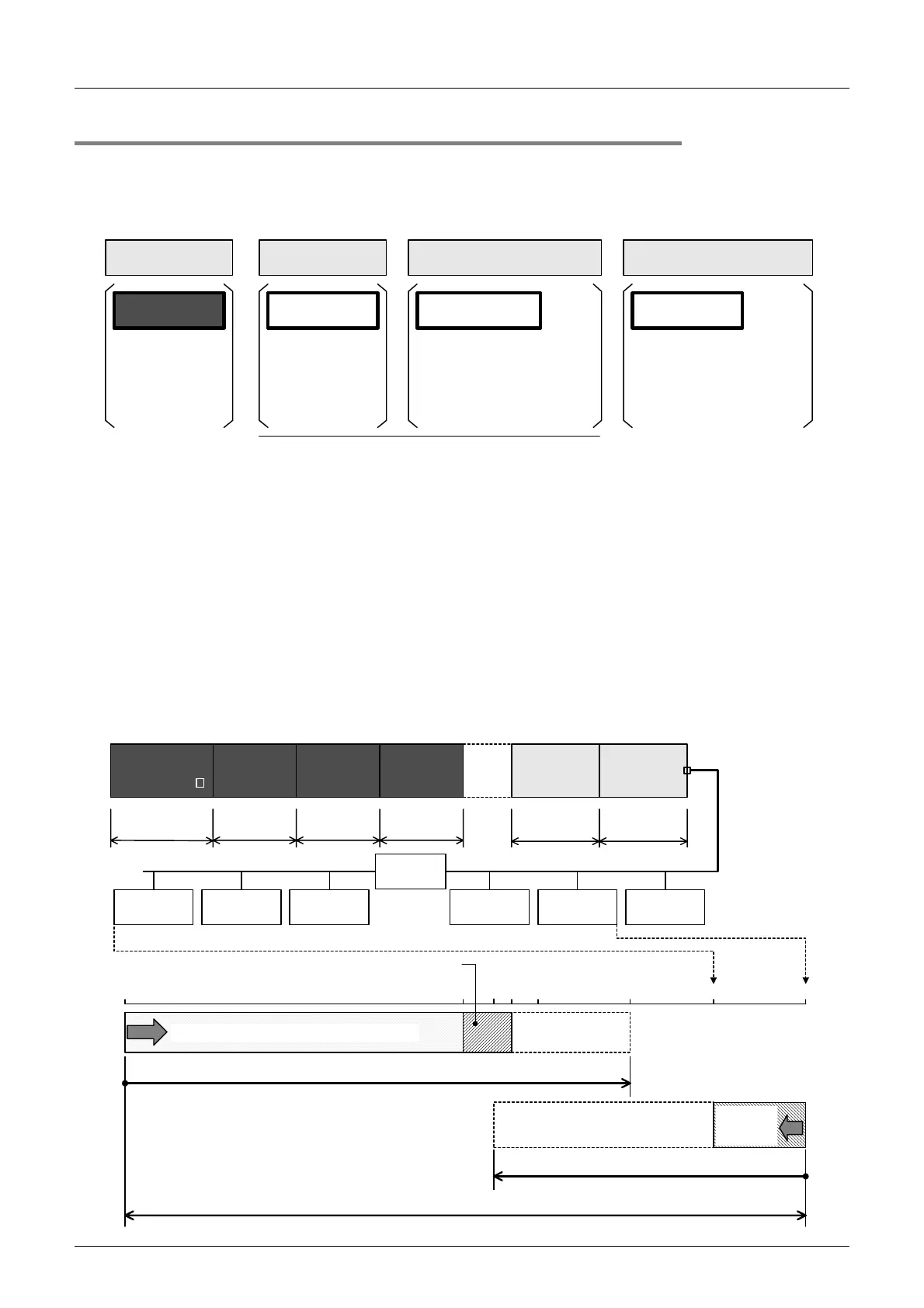

2. Procedures for calculating number of input/output points based on example of system
configuration
For the main unit, input/output blocks and AS-i system, the number of input/output points and the total
number of points are restricted.
≥
Maximum number of
input/output points
384 points
Maximum number
of points
controllable on
system
Number of input/
output points
+
Total number of
input/output points
(A)(B)(C)
Number of input/output occupied
points
(D) units
Number of points occupied by
special function units/blocks
+
Number of active slaves
(E)
Total number of points obtained by
formula "number of active slaves
× 8
points"
(The number is calculated by
multiplying by 8 points regardless of
the number of input/output points of
the active slaves.)
For the details, refer to Subsection 1.8.1.
(A): Number of input/output points of main unit
(B): Number of input/output points of input/output extension
blocks
(C): Number of remote I/O points of CC-Link/LT built-in
master(FX3UC-32MT-LT), FX2N-64CL-M, FX2N-16LNK-M.
(D): Number of input/output points occupied by special
function units/blocks
(E): Number of active slaves connected to AS-i system
master block
× 8
points
× 8
points
-
-
Special
function unit
-
-
FX 2N -32ASI-M
Output
extension
block
X020 to X057
-
Input
extension
block
X060 to X117
-
Input
extension
block
AS-i system
Slave 2
(8 points)
Slave 1
(4 points)
AS-i power
supply
Number of
remaining points
Number of input/output points (128 points)
0 points
384 points
128
344
256160144
Number of remaining points
8 points
× 5 units
= 40 points
Up to 256 points
Number of input/output points occupied by special function units/blocks
Number of AS-i system input/output points
Up to 248 points (31 slaves
× 8 points)
384 points or less in total
136
Slave 4
(4 points)
Slave 3
(8 points)
Slave 5
(4 points)
Repeater
8 points
-
Y020 to Y057
Number of input/output points (excluding number of input/output points on
AS-i system) + Number of input/output occupied points
32/0
= 32 points
32/0
= 32 points
0/32
= 32 points
8 points
X000 to X017
Y000 to Y017
Main unit
(Example:
FX
3UC -32MT/ )
16/16
= 32 points
