RL78/G15 CHAPTER 1 OUTLINE
R01UH0959EJ0110 Rev.1.10 Page 24 of 765
Mar 7, 2023

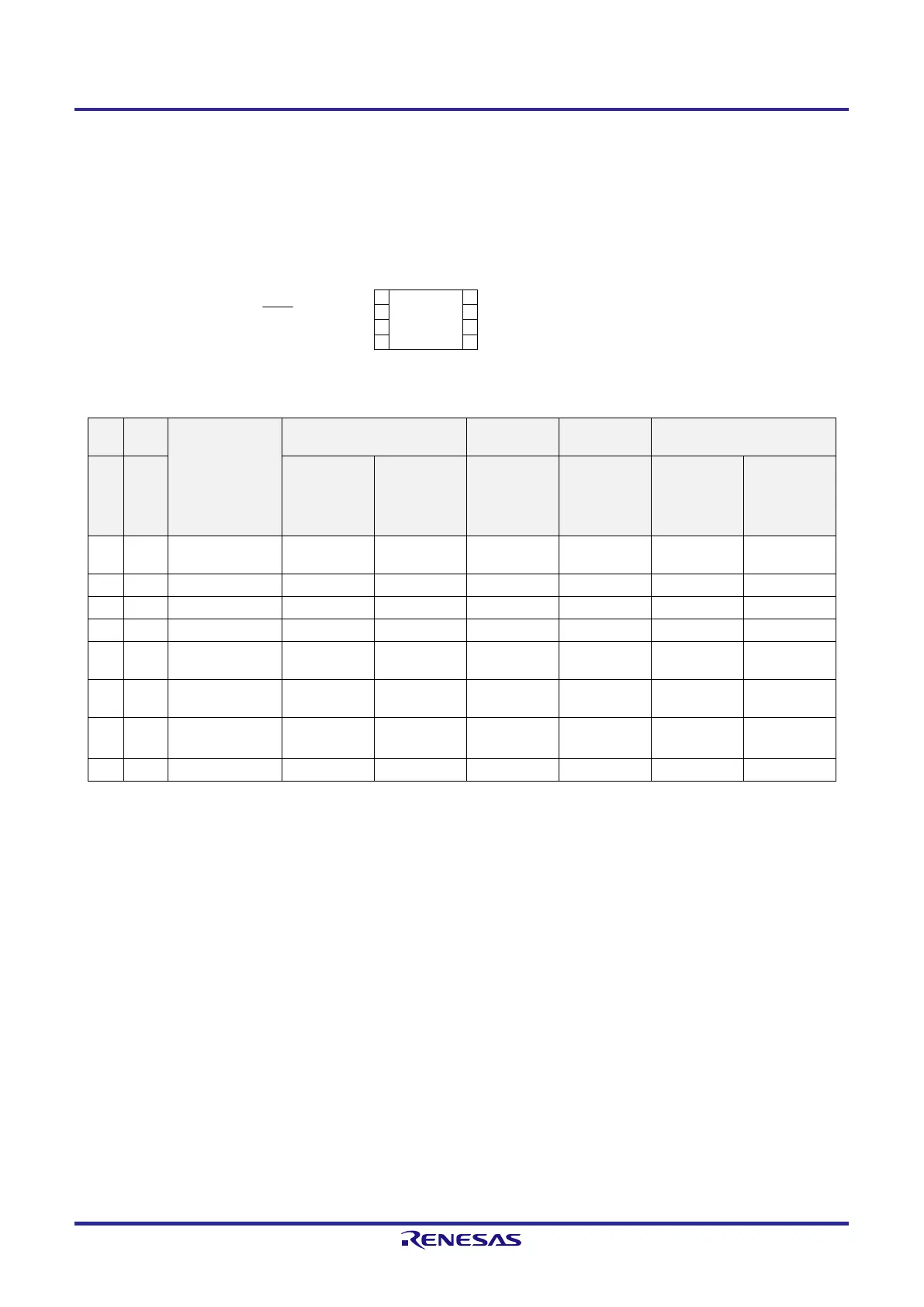

1.3 Pin Configuration (Top View)
1.3.1 8-pin products
 8-pin plastic WDFN (3 × 3 mm, 0.65-mm pitch)
1
RL78/G15
(Top View)
2
3
4
8
7
6
5
P40/TOOL0/PCLBUZ0/VCOUT0/INTP2/(TI01/TO01)
P125/RESET/INTP1/(VCOUT0)
V
SS
V
DD
P137/INTP0/TI00
P04/ANI3/IVREF0/INTP3/TI01/TO01/SCK00/SCL00
P03/TOOLTxD/ANI2/IVCMP0/INTP4/TO00/SO00/TxD0/SCLA0/(TI00)
P01/TOOLRxD/ANI0/INTP5/TI02/TO02/SI00/RxD0/SDA00/SDAA0
Table 1-2. Multiplexed Functions of 8-pin Products
Pin
No.
I/O
Power supply, system, clock, debug
Analog HMI Timer Communications Interface
8WDFN Digital port A/D converter Comparator Interrupt function Timer array unit Serial array unit Serial interface IICA
1 P40 TOOL0
PCLBUZ0
— VCOUT0 INTP2 (TI01/TO01) — —
2 P125 RESET
¯¯¯¯¯¯
— (VCOUT0) INTP1 — — —
3 — V
SS
— — — — — —
4 — V
DD
— — — — — —
5 P01 TOOLRxD ANI0 — INTP5 TI02/TO02 SI00/RxD0/
SDA00
SDAA0
6 P03 TOOLTxD ANI2 IVCMP0 INTP4 (TI00)
TO00
SO00/TxD0 SCLA0
7 P04 — ANI3 IVREF0 INTP3 TI01/TO01 SCK00/SCL00 —
8 P137 — — — INTP0 TI00 — —
Remark 1. For pin identification, see 1.4 Pin Identification.
Remark 2. Functions in parentheses can be assigned via settings in the peripheral I/O redirection register (PIOR).
Refer to Figure 4-6 Format of Peripheral I/O Redirection Registers 0 to 3 (PIOR0 to PIOR3).
