RL78/G15 CHAPTER 13 SERIAL INTERFACE IICA

R01UH0959EJ0110 Rev.1.10 Page 532 of 765

Mar 7, 2023

13.5.1 Start condition

A start condition is generated when the SDAA0 pin changes from the high to the low level while the SCLA0 pin is at the

high level. A start condition is a signal that the master generates to the slave when starting a serial transfer. When the

device is used as a slave, a start condition can be detected.

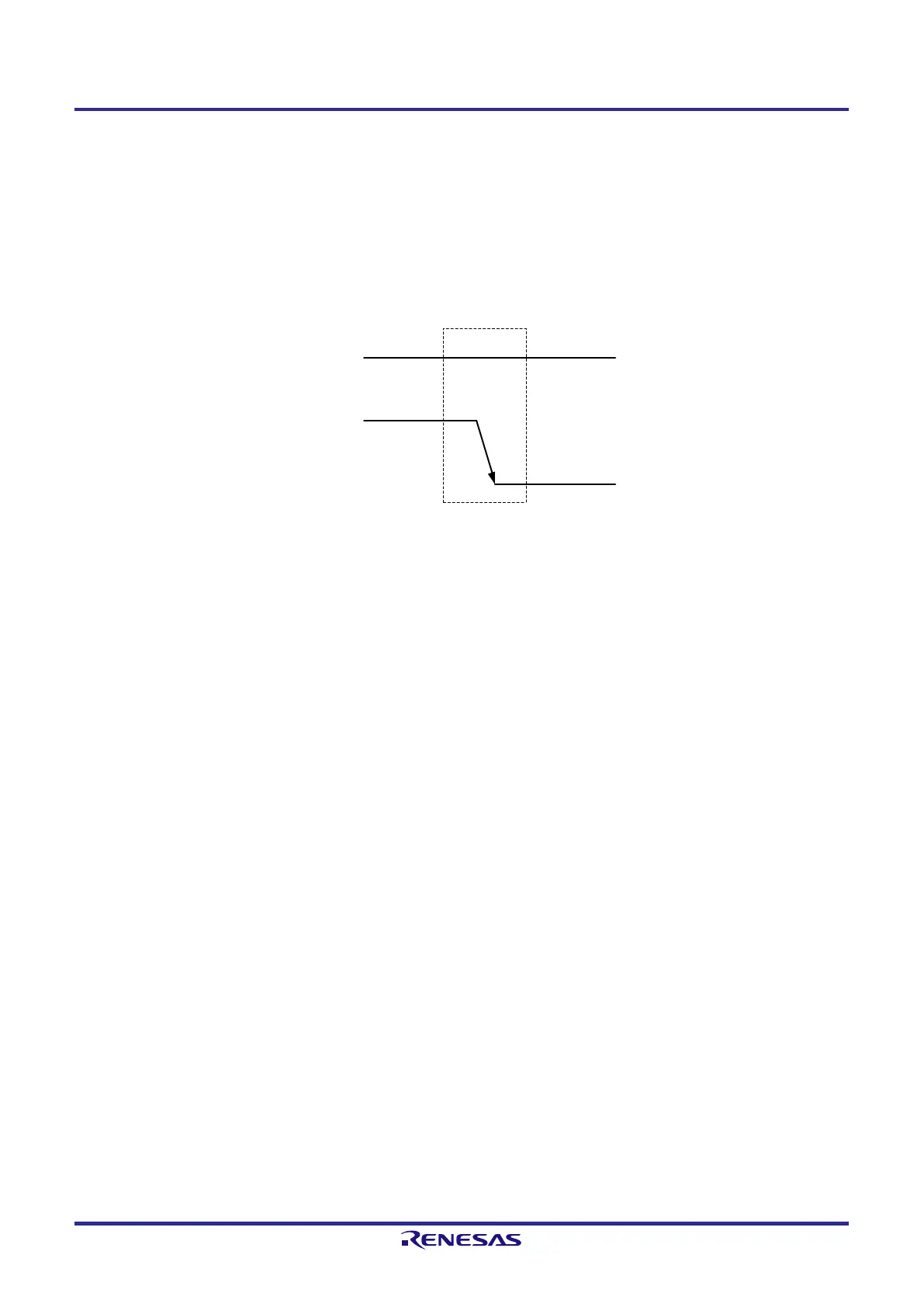

Figure 13-14. Start Condition

SCLA

SDAA0

A start condition is output when bit 1 (STT0) of IICA control register 00 (IICCTL00) is set (1) after a stop condition has

been detected (SPD0: Bit 0 of IICA status register 0 (IICS0) = 1). When a start condition is detected, bit 1 (STD0) of the

IICS0 register is set (1).
