Renesas RL78/G15 User Manual

RL78/G15 CHAPTER 14 INTERRUPT FUNCTIONS
R01UH0959EJ0110 Rev.1.10 Page 621 of 765
Mar 7, 2023

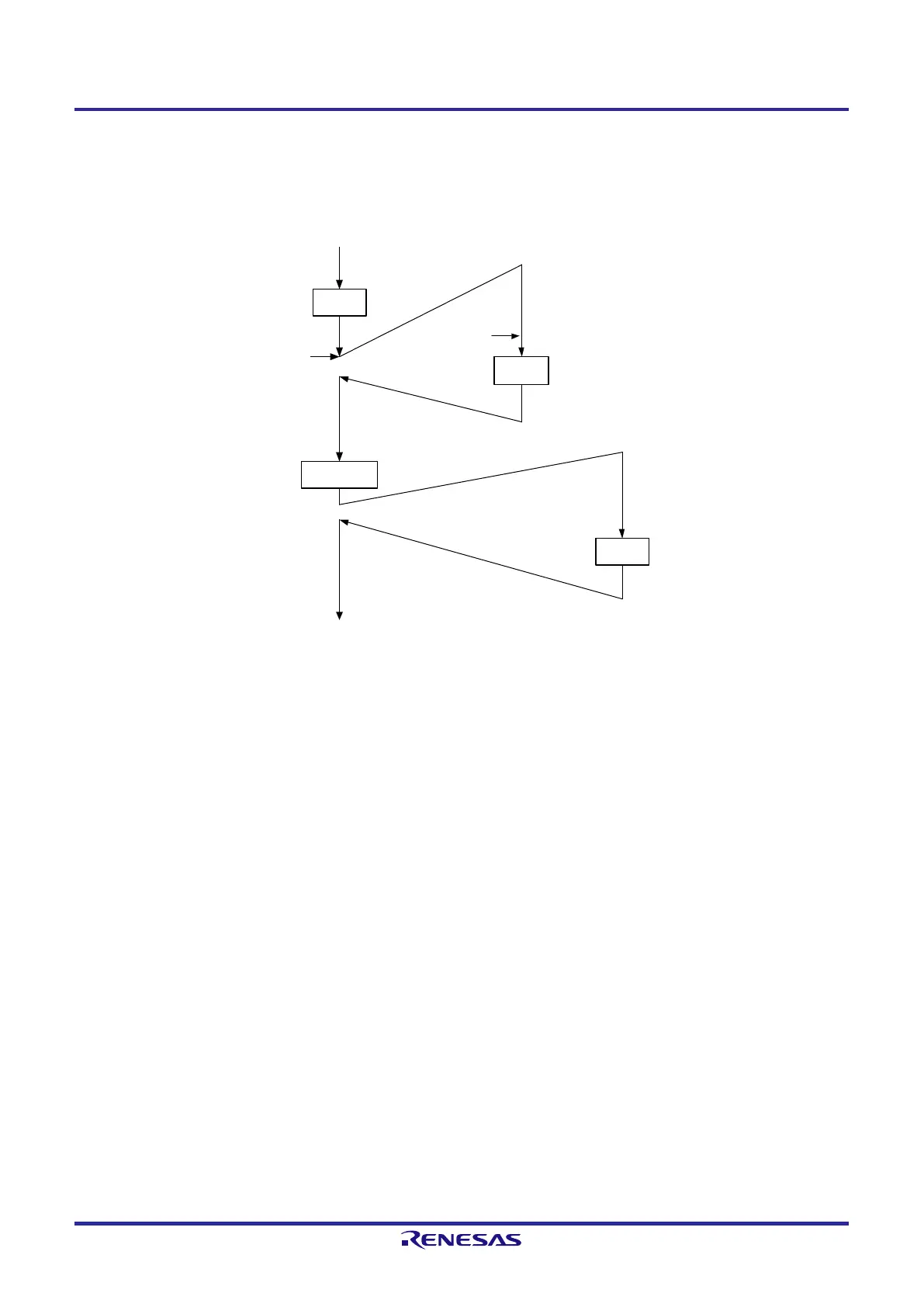

Figure 14-10. Examples of Multiple Interrupt Servicing (2/2)
Example 3. Multiple interrupt servicing does not occur because interrupts are not enabled
EI
RETI
RETI
1 instruction
execution
Main processing INTxx processing INTyy processing
INTxx
(PR = 11)
INTyy
(PR = 00)
IE = 0
IE = 1
IE = 0
IE = 1
Interrupts are not enabled during servicing of interrupt INTxx (EI instruction is not issued), therefore, interrupt request
INTyy is not acknowledged and multiple interrupt servicing does not take place. The INTyy interrupt request is held
pending, and is acknowledged following execution of one main processing instruction.
PR = 00: Specify level 0 with xxPR1x = 0, xxPR0x = 0 (higher priority level)
PR = 01: Specify level 1 with xxPR1x = 0, xxPR0x = 1
PR = 10: Specify level 2 with xxPR1x = 1, xxPR0x = 0
PR = 11: Specify level 3 with xxPR1x = 1, xxPR0x = 1 (lower priority level)
IE = 0: Interrupt request acknowledgment is disabled
IE = 1: Interrupt request acknowledgment is enabled.
