110 Rockwell Automation Publication 2711P-UM008I-EN-P - February 2022

Chapter 3

View FactoryTalk View ME Station Information

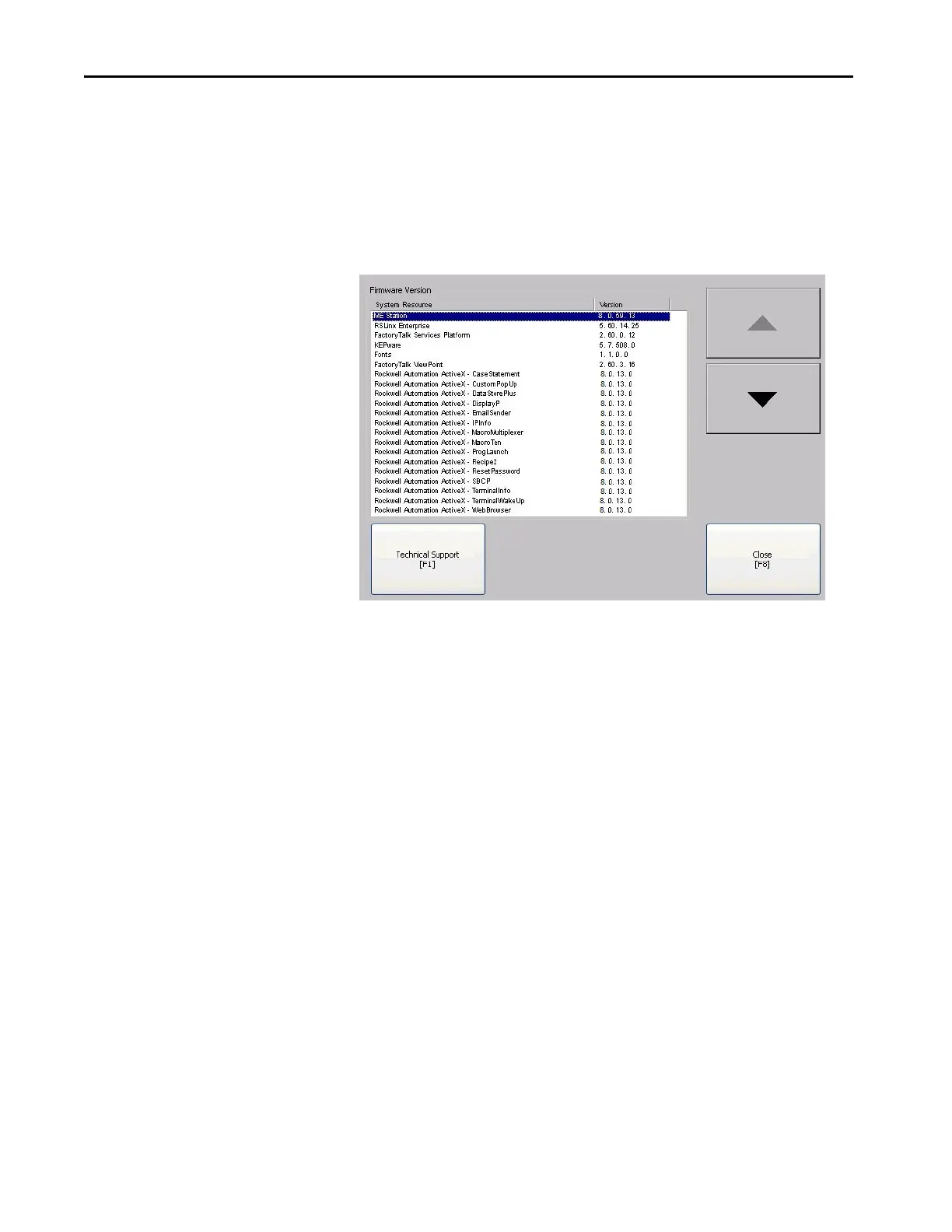

You can view firmware and version information for components that are

installed on your terminal and access technical support information.

1. Press Terminal Settings, then choose System Information>About

FactoryTalk View ME Station.

2. To display the support telephone number and website, press Technical

Support.

3. Press Close until you return to terminal settings.

Table of Contents3
Preface9
Summary of Changes9
Package Contents9
Product Firmware and Release Notes10
Additional Resources11
Overview13
About the Panelview Plus 7 Performance Terminals13
Hardware Features14
Operator Control16
Touch Gestures17
Software Support17
Windows Operating System18
Open Versus Closed System19
Series a Terminals19
Series B Terminals19
Desktop Access19
Start-Up Options20
Ethernet/Ip Communication20
Typical Configuration20
Catalog Number Explanation21
Product Selections22
Accessories23
Ethernet Cables24
Install the Panelview Plus25
Hazardous Locations27
Performance Terminal28
Required Circuit Port Parameters for USB Peripheral Devices28
Mounting Considerations29
Mounting Clearances30
Panel Guidelines30
Panel Cutout Dimensions30
Prepare for Panel Mounting31
Mount the Aluminum Terminal in a Panel35
Mount the Stainless Steel Terminal in a Panel38
Outdoor Installation41
Remove and Replace Power Terminal Block42
Connect to DC Power43
Connect to AC Power44
Connect to a Network45
Ethernet Ports45
Device Level Ring Network Topology48
Linear Network Topology49
Star Network Topology50
Initial Startup - Series a Terminals50
Initial Startup - Series B Terminals52
Calibrate the Panelview Terminal52
Update the System Firmware57
Enter a Password69
Transfer Runtime Files (.Mer)71
Configure Terminal Settings73
Factorytalk View ME Station73
Terminal Settings76
Soft Keyboard77
Load and Run Application78
Windows CE Desktop Access - Series a Terminals79
Enable Desktop Access79
Disable Desktop Access80
Set a Desktop Password82
Reset the Desktop Password83
Configure Start-Up Options84
Disable Factorytalk View ME Station on Startup84
Enter Configuration Mode on Startup85
Run the Loaded Application on Startup86
Configure Controller Address87
Configure Ethernet Settings87
Set the Ethernet Address of the Terminal88
Set the Ethernet Link Speed89
Define Name Server Addresses90
Configure the Ethernet Ports90
View the Network Diagnostic Data91
Modify Device Name of Terminal92
Copy Files on Terminal93
Delete Files from Terminal94
Delete Log Files94
Display Settings95
Adjust Display Intensity95
Configure the Screen Saver95
Disable the Screen Cursor96
Input Device Settings97
Configure Keyboard or Keypad Settings97
Calibrate the Touch Screen98
Set the Double-Tap Sensitivity for a Touch Screen99
Change the Popup for String Entry99
Change Popup Input Color Settings100
Configure Print Options102
Configure Diagnostics105
Check Integrity of Application Files106
View and Clear the System Event Log107
Enable or Disable the Alarm Display107
Display System Information108
View Terminal Information108
View Factorytalk View ME Station Information110
Time and Date Settings111
Change the Time Zone on Terminal111
Change the Current Date on Terminal112
Change the Current Time on Terminal112
Regional Settings113
Change the Decimal Separator113
Change the Time Format for a Language114
Change the Short Date Format for a Language115
Change the Long Date Format for a Language115
Kepserver Driver Configuration (Series B Only)116
Certificate Management (Series B Only)118
Windows CE Operating System - Series a Terminals121
Operating System Features121
Application Support122
Scripting Support122
Network Support122
Server Support123
Extended Features123
Windows Explorer124
Taskbar124
Soft Input Panels124
Windows Control Panel125
Backup and Restore126
Perform a Backup126
Restore a Back-Up Image128
Display Properties129
Desktop Background129
Desktop Appearance130
Backlight Intensity130
Screen Saver130
Cursor131
Screen Rotation131
Hardware Monitor132
Processes132
System Event Log132
Monitors133
Logo Manager134
User Accounts136
Services137
Network Server Configuration138
VNC Server Configuration138
VNC Connection Requiring a Password for View-Only Operations139
VNC Connection with Separate Passwords for View and Control Operations141
Establish a VNC Connection between a Local Terminal and a143
Remote Terminal143
Close a VNC Connection to a Remote Terminal144
Make a New VNC Connection to a Remote Terminal145
Transfer Files between a Local and a Remote Terminal145
Web Server Configuration146
FTP Server Configuration148
File Server151
Kepserver Configuration152
System Information152
General Information152
Startup Options153
Device Name155
Touch Properties156
Calibration156
Double-Tap156
PDF Reader157
Command Prompt Parameters158
Windows 10 I0T Core Operating System - Series B Terminals159
System Features159
Windows Control Panel160
Menu Icons160
Navigation Icons161
Start Menu162
Device Info Menu165
Web Browser Menu166
Account Management Menu167
Menu Settings Screen168
System Screen169
Network & Wi-Fi Screen170
Firmware Updates Screen171
Power Options Screen172
Touch Screen173
Services Screen174
Event Log Screen175
Install and Replace Components177
Connect to USB Ports178
USB Cables179
Install a USB Printer179
Series a Terminals179
Plug-And-Play Installation180
Manual Printer Installation181
Series B Terminals182
Insert an SD Card183
Connect a Speaker184
Replace the Battery185
Install a Protective Overlay187
Clean the Overlay189
Remove the Overlay189
Replace the Stainless Steel Terminal Gasket189
Update Firmware193
Terminal Firmware193
Download Firmware Files (Series a Terminals Only)194
Performance Terminal194
Firmware Upgrade Wizard (Series a Terminals Only)195
Upgrade Terminal Firmware from a Storage Device195
Only)195
Create a Firmware Update Card195
Update Terminal Firmware by Using Firmware Update Card198
Update Terminal Firmware over the Network199
Only)199
Terminals Only)199
Update System Firmware (Series B Terminals Only)203
USB Storage Device203
Controlflash Client205
Using Controlflash Plus207
Update DLR Network Switch Firmware (Series B Terminals Only)213
Troubleshooting217
View System Information217
Status Indicators218
View Network Status Information219
Series a Terminals Only219
Series a and Series B Terminals220
Terminals)220
Terminal Does Not Start up220
Terminal Restarts Intermittently220
Touch Screen Issues221
Display Issues221
Ethernet Issues222
Performance Is Slow222
Resistance to Chemicals222
Clean the Terminal Display223
Remove Paint and Grease223
Equipment Wash Downs223
Ship the Terminal224
Maintenance Mode Operations - Series a Terminals224
Maintenance Mode Operations - Series B Terminals225
Fonts Resident on Terminal227
True Type Fonts227
Languages Supported231
Available Languages231
