Rockwell Automation Publication 2711P-UM008I-EN-P - February 2022 35
Chapter 2

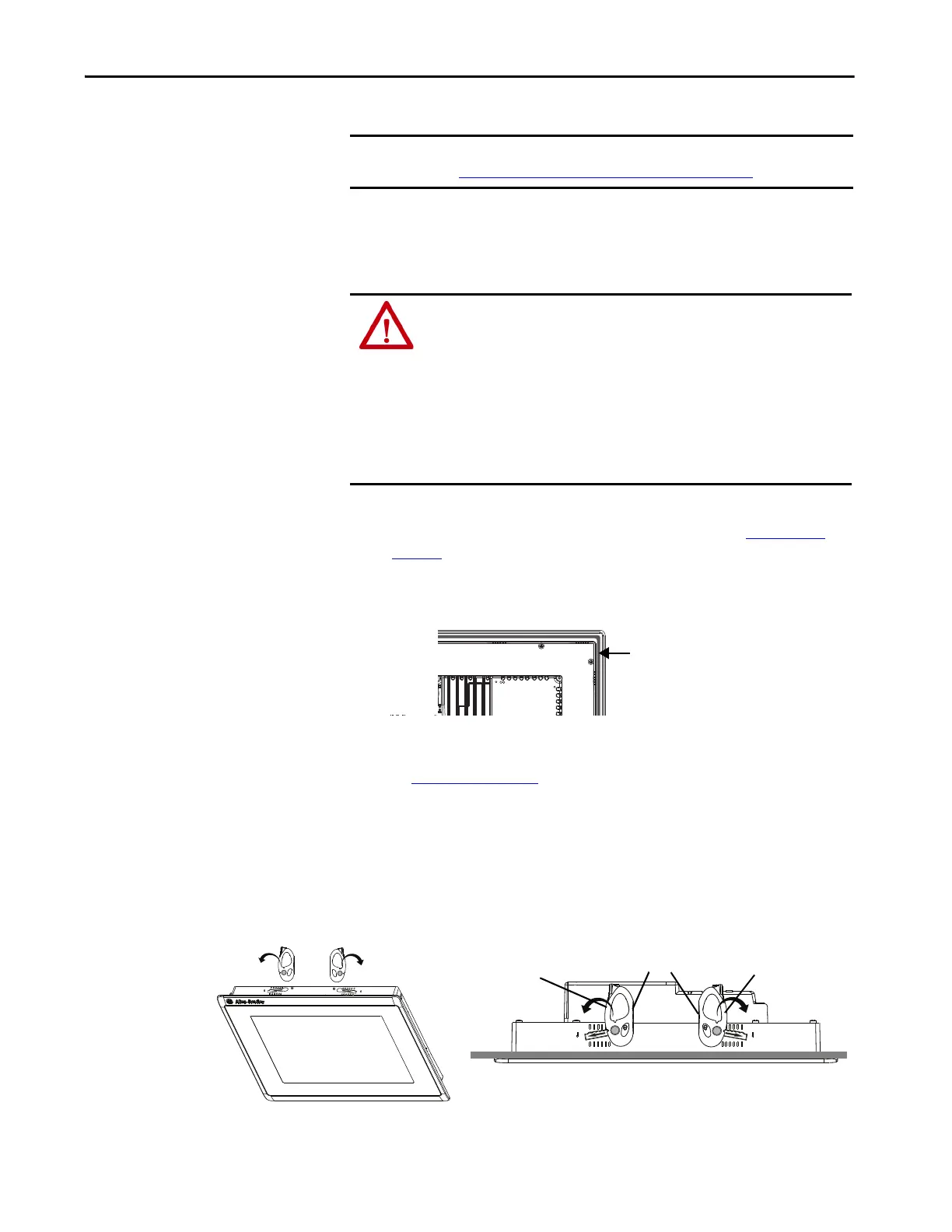

Mount the Aluminum
Terminal in a Panel
The terminals are designed for single-person installation. No tools are required
except for the tools that are used to make the panel cutout.
To mount the terminal in a panel, follow these steps.
1. Cut an opening in the panel by using the panel cutout template that
shipped with the terminal, or the cutout dimensions in Table 14 on
page 30.
2. Verify that the sealing gasket is present on the terminal.
This gasket forms a compression seal. Do not use sealing compounds.
3. Insert and stabilize the terminal in the panel cutout.
a. Insert levers in the top corner slots by using the orientation in
Figure 3 on page 34
, and rotate the curved side of the levers toward
the panel.
IMPORTANT To mount a stainless steel terminal, skip this section and continue with
Mount the Stainless Steel Terminal in a Panel
on page 38.
ATTENTION:
Disconnect all electric power from the panel before making the panel cutout.
Make sure that the area around the panel cutout is clear and that the panel is
clean of any debris, oil, or other chemicals.
Make sure that metal cuttings do not enter any components that are installed in
the panel, and that the edges of the cutout have no burrs or sharp edges.
Failure to follow these warnings can result in personal injury or damage to
panel components.
TIP The mounting levers for PanelView Plus 7 Performance terminals are black
(catalog number 2711P-RMCP).
Do not use gray mounting levers; they are not compatible with PanelView
Plus 7 Performance terminals.
Flat Side
Curved Side
Curved Side
