Rockwell Automation Publication 2711P-UM008I-EN-P - February 2022 49
Chapter 2
Linear Network Topology
A linear network topology is a collection of devices that are daisy-chained
together across an EtherNet/IP network. Devices capable of connecting to a
linear network topology use embedded switch technology to remove the need
for a separate switch, as required in Star network topologies.

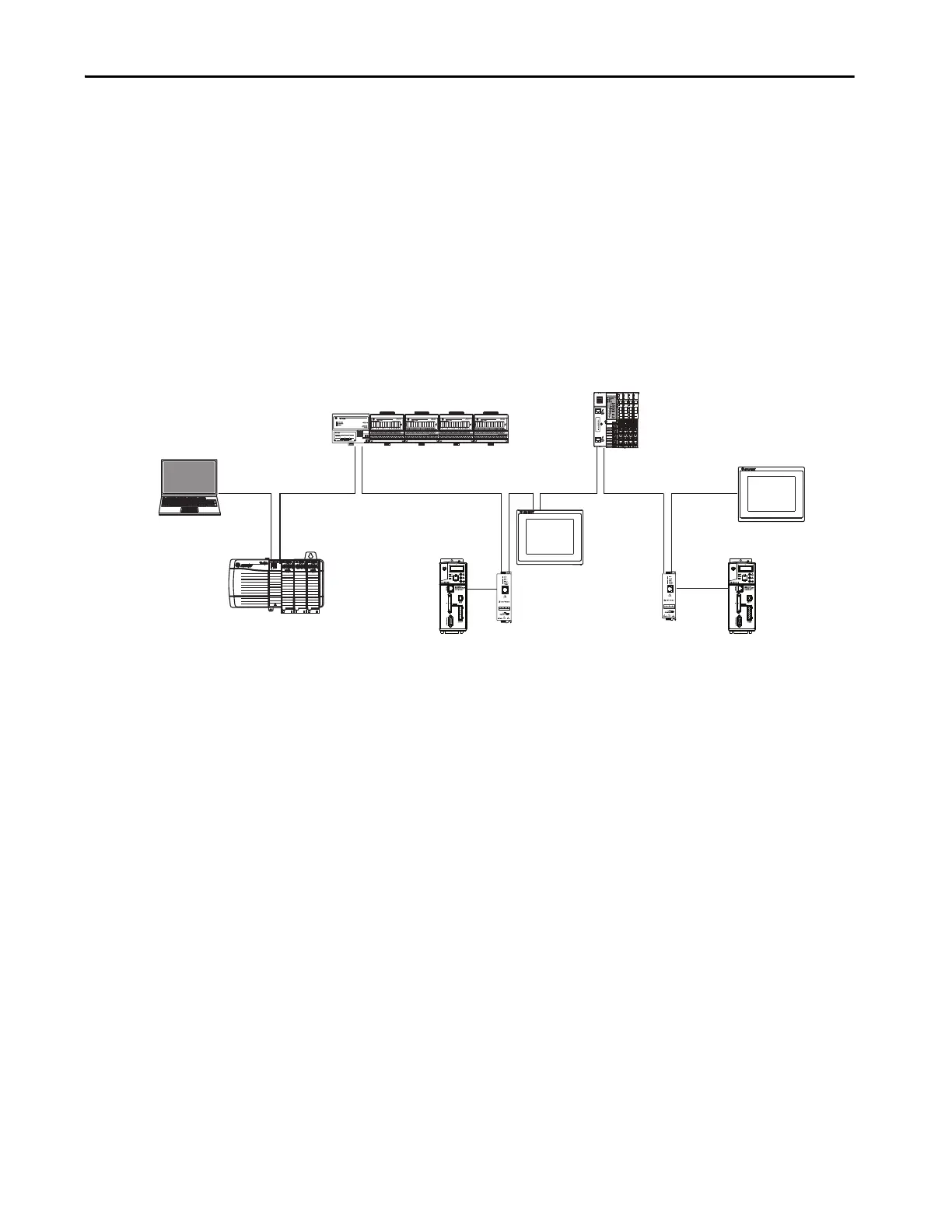

Figure 5 - PanelView Plus 7 Performance Terminal in a Linear Topology Network
TIP The PanelView Plus 7 Performance terminal with dual Ethernet ports can
be attached in the middle, or at the end, of a linear network.
PanelView Plus 7 Performance Terminal
Connected Via One Ethernet Port
Kinetix 350 Drive Connected
Via a 1783-ETAP EtherNet/IP Tap
Kinetix 350 Drive Connected
Via a 1783-ETAP EtherNet/IP Tap
ControlLogix Controller with
1756-EN*TR Module
1794-AENTR FLEX I/O Adapter
with FLEX I/O Modules
1734-AENTR POINT I/O Adapter
with POINT I/O Modules
Computer
PanelView Plus 7
Performance Terminal
Connected Via Two DLR Ports
To Next Page
