Rockwell Automation Publication 2711P-UM008I-EN-P - February 2022 13
Chapter 1
Overview

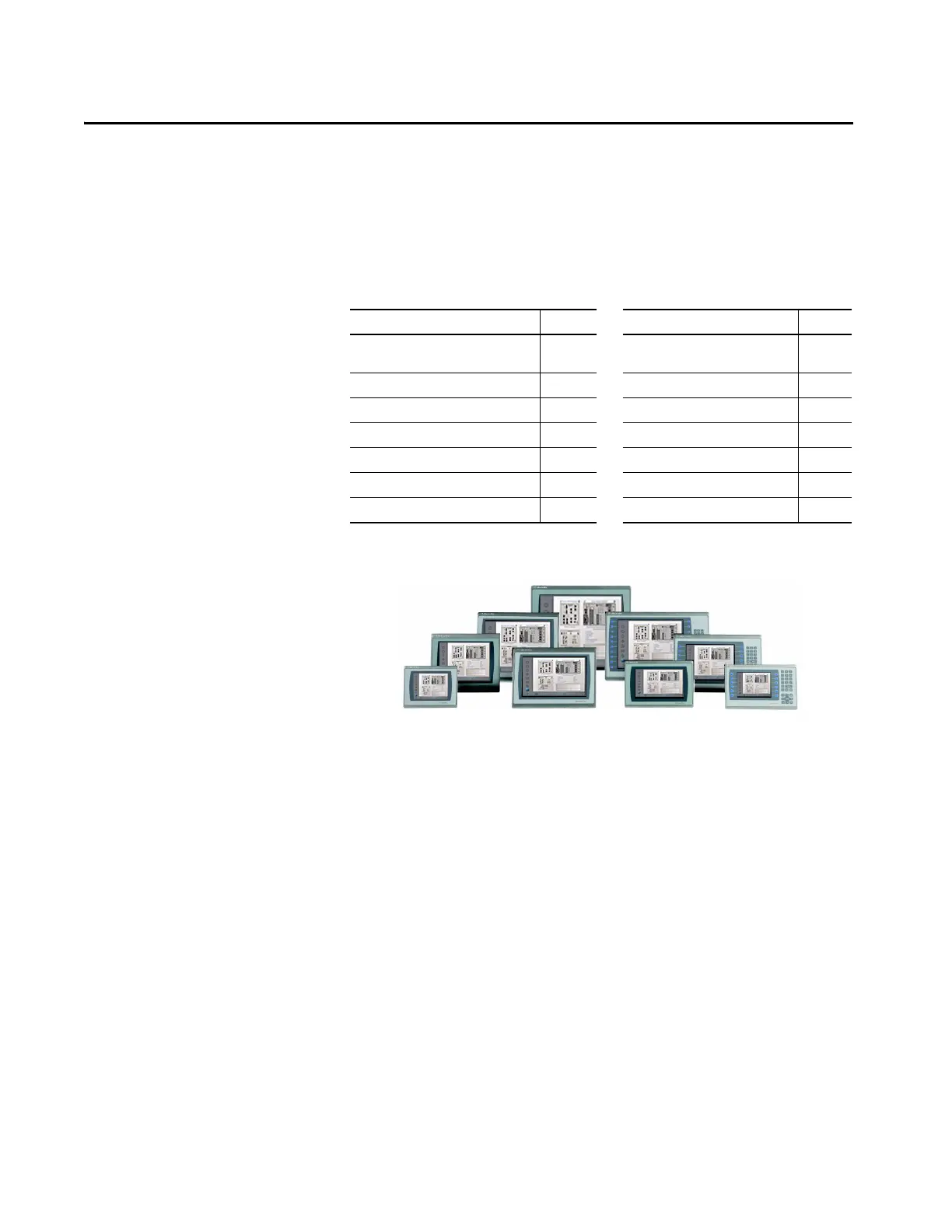

About the PanelView Plus 7
Performance Terminals
The PanelViewâ„¢ Plus 7 Performance terminals are operator interface devices.
They monitor and control devices that are attached to ControlLogix® and
CompactLogixâ„¢ controllers on an EtherNet/IPâ„¢ network. Animated graphic
and text displays provide operators a view into the operating state of a machine
or process. Operators interact with the control system by using touch screen or
keypad input.
Features include the following:
• FactoryTalk® View Machine Edition software provides a familiar
environment for creating HMI applications.
• Microsoft® Windows® operating system:
• Series A (and Stainless Steel Series A and B): Windows CE 6.0
• Series B (and Stainless Steel Series C): Windows 10 IoT Core
• Ethernet communication that can support Device Level Ring (DLR),
linear, or star network topologies.
• Web browser, Microsoft file viewers, text editor, PDF viewer, remote
connection capabilities.
• Conformal-coating available for all DC power, touch-only terminals
and the 15-inch DC power, touch and keypad terminal.
Topic Page Topic Page
About the PanelView Plus 7 Performance
Te rm in a ls
13 Start-up Options 20
Hardware Features 14 EtherNet/IP Communication 20
Operator Control 16 Typical Configuration 20
Software Support 17 Catalog Number Explanation 21
Windows Operating System 18 Product Selections 22
Open Versus Closed System 19 Accessories 23
Desktop Access 19 Ethernet Cables 24
