Rockwell Automation Publication 2711P-UM008I-EN-P - February 2022 29
Chapter 2
Nonincendive field wiring must be wired and separated in accordance with 501.10(B)(3) of the National Electrical
Code, ANSI/NFPA 70, or other local codes as applicable. This associated nonincendive field wiring apparatus has not
been evaluated for use in combination with another associated nonincendive field wiring apparatus.
Mounting Considerations
Consider the following when mounting the terminal:
• Mount the terminal at a height suitable for most operators. You can
mount the cabinet at a different level than the operator floor.
• Use appropriate lighting. Do not operate the terminal in direct sunlight.
• Terminals are rated to operate at mounting angles between 0…180°.
Since the ArmorView Plus 7 terminals are pre-mounted in a custom enclosure
for easy deployment, you may skip the following sections about mounting. For
instructions on how to mount the ArmorView Plus 7 terminal, see the
ArmorView Plus 7 Installation Instructions, publication 2711P-IN013
.

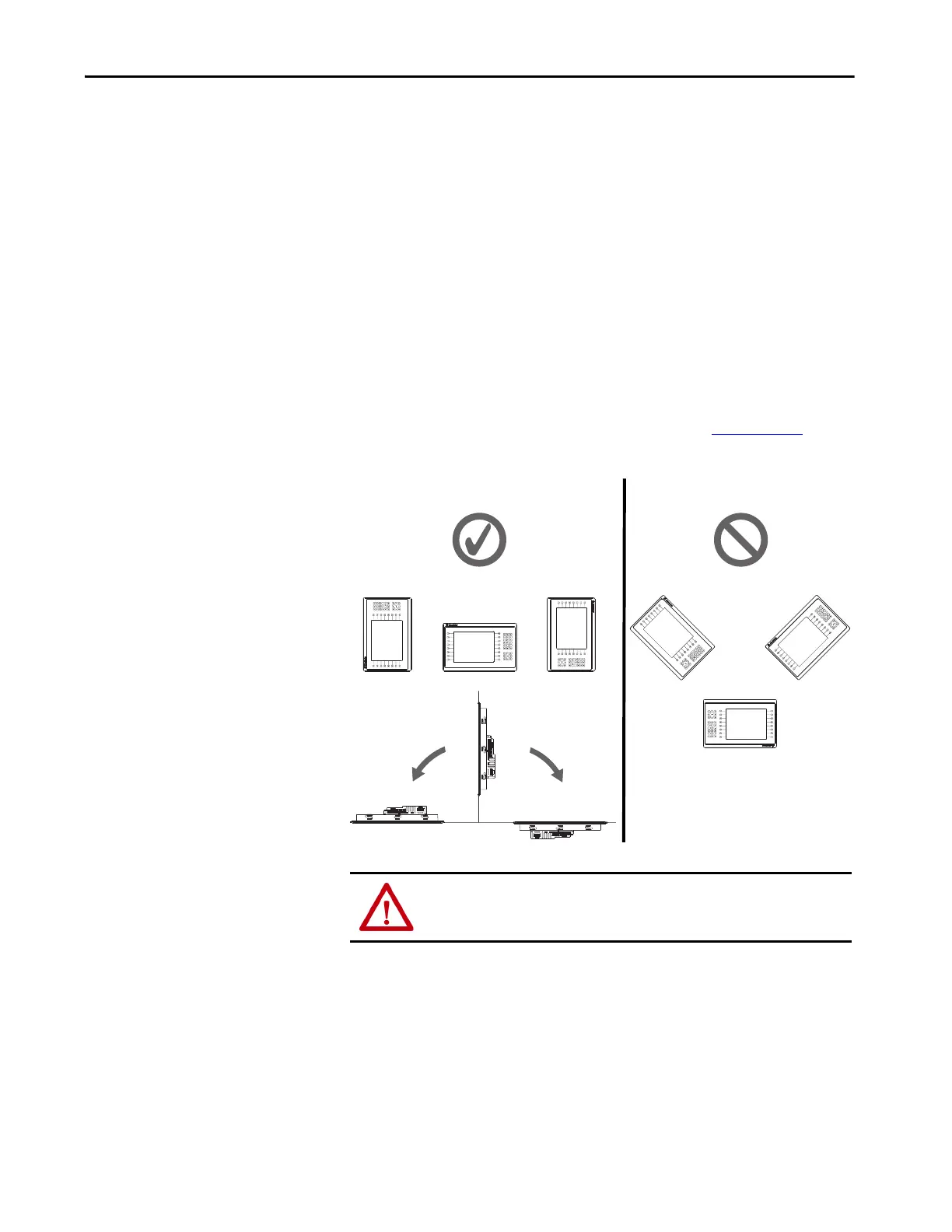

Figure 2 - Acceptable and Unacceptable Mounting Positions
ATTENTION: Failure to follow these guidelines can result in personal injury
or damage to the panel components.
1
6
6
6
1
1
1
6
6
6
1
1
1
6
6
6
1
1
Yes No
≤ 90°
From Vertical
≤ 90°
From Vertical
