Chapter 1
• Stainless steel, hygienic, brandless, DC-power, and conformal-coating
are available for the 9-in. wide-screen, touch-only units and the 12-in.
wide-screen, touch- only units.
• On-machine mounting available for the 12-in. terminal. For
information on the options available, see the ArmorView™ Plus 7
Installation Instructions, publication 2711P-IN013
.
Hardware Features

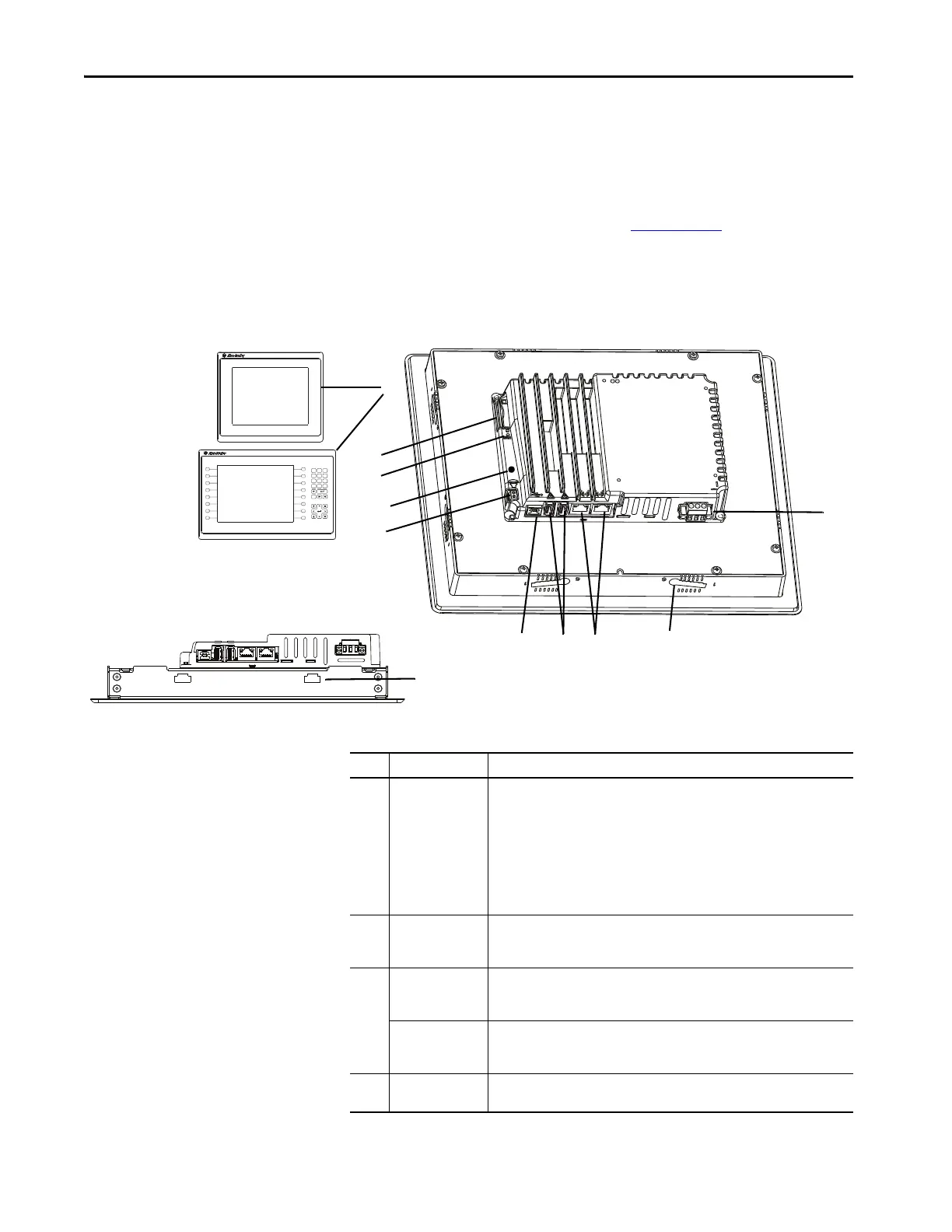

The PanelView Plus 7 Performance terminals feature fixed hardware
configurations with a range of display sizes and operator input options.
F1
Esc
7
9
8
456
123
0
.
–
F2
F3
F6
F4
F5
F9
F7
F8
F10
F12
F11
F14
F13
F16
F15
2
4
6
7
1
5
9
10
3
3
Stainless steel terminals use mounting clips. All other
hardware features are the same as the aluminum terminals.
8
Table 1 - Hardware Features
(1)
Item Feature Description
1 Display/Keypad
TFT color graphic displays with a touch screen and navigation button in a range of
sizes. Some models also have a keypad and function keys providing additional
operator input options:
• 6.5-in. touch, or touch with keypad
• 9-in. widescreen touch
• 10.4-in. touch, or touch with keypad
• 12.1-in. widescreen touch
• 15-in. touch, or touch with keypad
•19-in. touch
2 Power
AC or DC
(3)
power input:
• 18…30V DC (isolated), aluminum and stainless steel terminals
• 100…240V AC (nom), only aluminum terminals (Series A terminals only)
3
Mounting slot
(aluminum
terminals)
Slots on top, bottom, and sides of terminal are for mounting levers to mount the
device to a panel or enclosure. The number of slots varies by terminal size.
Mounting slot
(stainless steel
terminals)
Slots on top, bottom, and sides of terminal are for mounting clips to mount the
device to a panel or enclosure. The number of slots varies by terminal size.
4 Ethernet ports
Two 10/100Base-T, Auto MDI/MDI-X, Ethernet ports for controller communication
supporting Device Level Ring (DLR) network topology.
