48 Rockwell Automation Publication 2711P-UM008I-EN-P - February 2022
Chapter 2
Device Level Ring Network Topology
A DLR network is a single-fault tolerant ring network that is intended for the
interconnection of automation devices. This topology is also implemented at
the device level. No additional switches are required.
DLR network topologies automatically convert to linear network topologies
when a fault is detected. The conversion to the new network topology
maintains communication of data on the network. The fault condition is
typically detected and corrected.
For more information on DLR network topology, see the EtherNet/IP
Embedded Switch Technology Application Guide, publication ENET-AP005
.

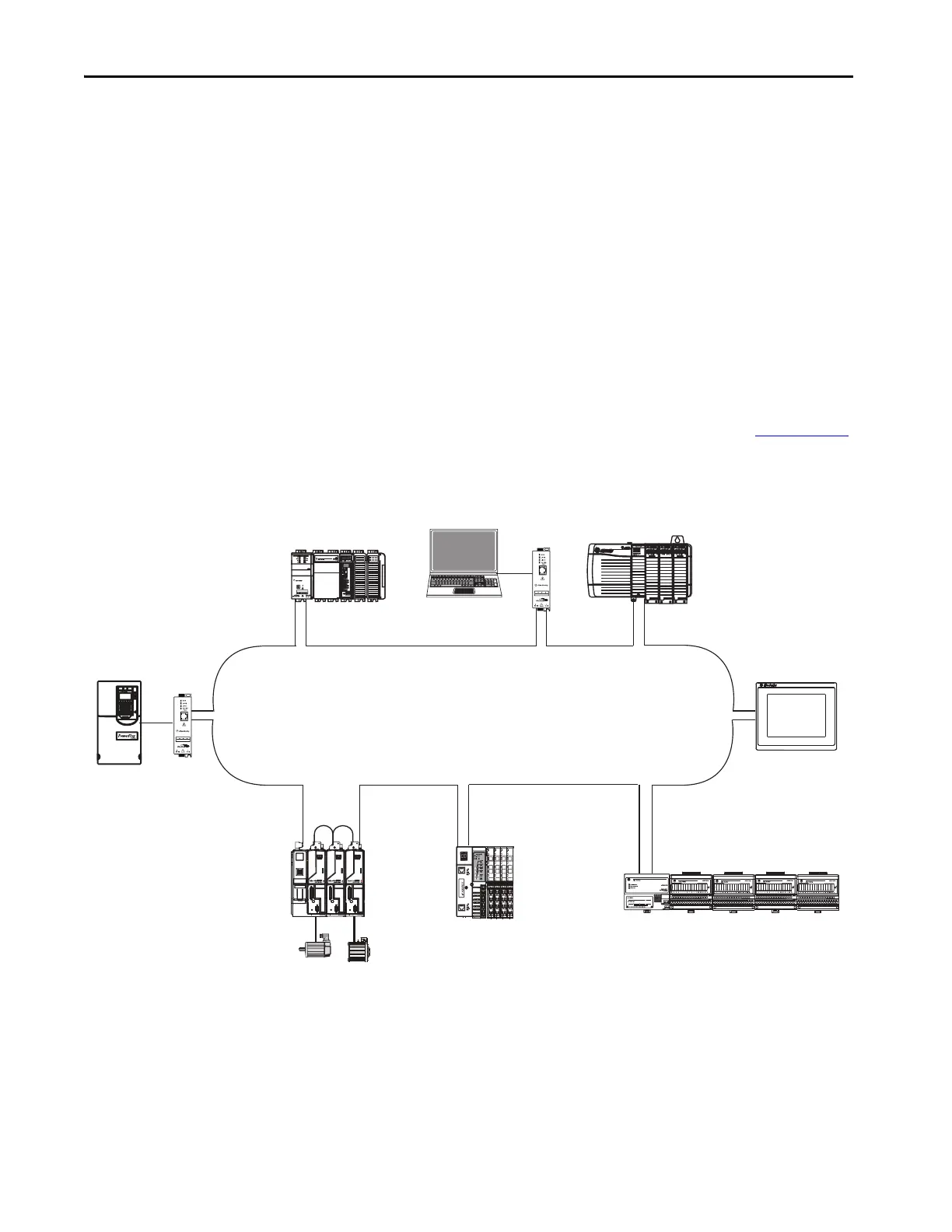

Figure 4 - PanelView Plus 7 Performance Terminal in a DLR Topology Network
TIP A DLR network has supervisor nodes and ring nodes. The PanelView Plus 7
Performance terminal operates only as a ring node on the network.
PanelView Plus 7
Performance Terminal
Connected Via Two
Ethernet Ports
1756-ControlLogix® Controller
1769-L18ERM-BB1B Control System
Computer Connected Via a
1783-ETAP EtherNet/IP Tap
Kinetix® 6500 Drives
with Motors
1734-AENTR POINT I/O™ Adapter
with POINT I/O Modules
1794-AENTR FLEX™ I/O Adapter
with FLEX I/O Modules
PowerFlex® 755 Drive
Connected Via a 1783-
ETAP EtherNet/IP Tap
To Next Page
