Hold the peeled back portion of the protective liner out of the way as
you perform the next step.
2. Center the overlay over the bezel and carefully position the adhesive
surface on the terminal.
While the protective liner is still covering the rest of the overlay, verify
that it is properly centered.
3. Slowly peel off the rest of the liner while using a soft cloth to press the
overlay on the screen.
Make sure that the overlay lies flat with no bubbles or warps.
4. With a soft cloth or finger, press around the edges of the overlay to seal
it, and remove any air bubbles trapped in the adhesive.
Clean the Overlay
Use a clean, lint-free cloth, and a mild glass cleaner that leaves no streaks to
clean the overlay. Windex or an eye glass cleaner is recommended. Do not use
cleaners that contain abrasives.
Remove the Overlay
Remove the overlay if it is damaged or needs replacement. Lift a corner and
slowly pull off the overlay. Use isopropyl alcohol to remove any residual
adhesive. Do not reuse the overlay.
Replace the Stainless Steel
Terminal Gasket
The hygienic gasket for the stainless steel terminal is blue.
To replace the stainless steel terminal gasket, follow these steps.
1. Remove power from the terminal.
2. Label all wiring and connections so you can attach them correctly later.
3. Remove all wiring and connections.

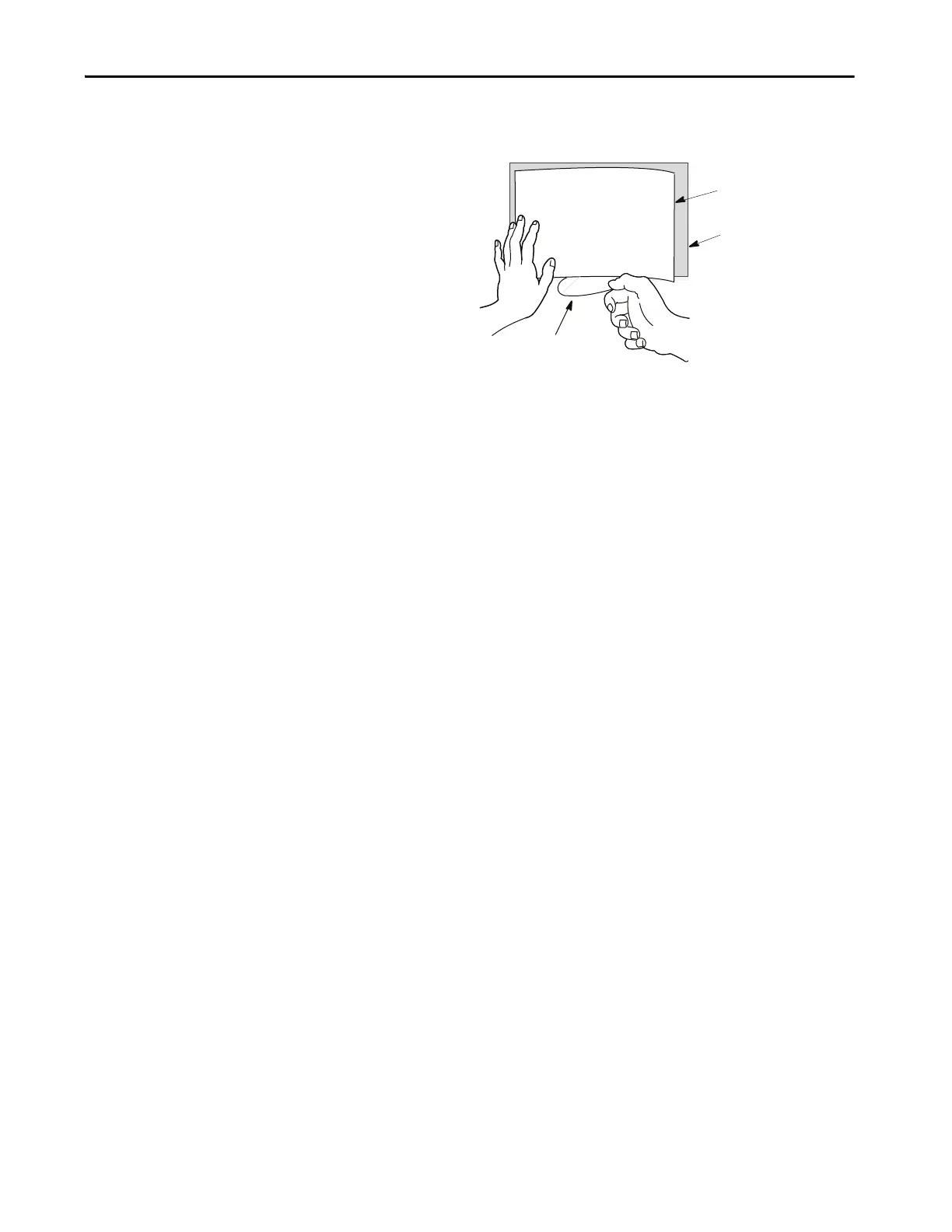

Overlay
Bezel
Protective Liner
To Next Page
