Prepare For Panel Mounting
Before mounting a terminal in a panel, read this section and the entire
installation procedure on page 35
.
Mounting levers insert into the slots around the bezel to secure the terminal in
the panel. The number of levers varies by terminal size.
Each slot has six notches with alignment marks that are locking positions for a
lever. The thickness of the panel in which you mount the terminal determines
the locking position that is required to maintain a NEMA/UL Type seal.
Always orient a mounting lever vertically before inserting it into a slot. This
method is the only way to slide the mounting lever knob within the slot for
positioning. After sliding the mounting lever to a specific notch, rotate the
mounting lever toward the panel to lock it in position. The flat side of the
mounting lever must come into contact with the panel.
IMPORTANT To mount a stainless steel terminal, skip this section and continue with
Mount the Stainless Steel Terminal in a Panel
on page 38.
IMPORTANT Catalog number 2711P-RMCP mounting levers (black) are used with the
PanelView Plus 7 Performance terminals. Do not use gray mounting levers;
they are not compatible with PanelView Plus 7 Performance terminals.

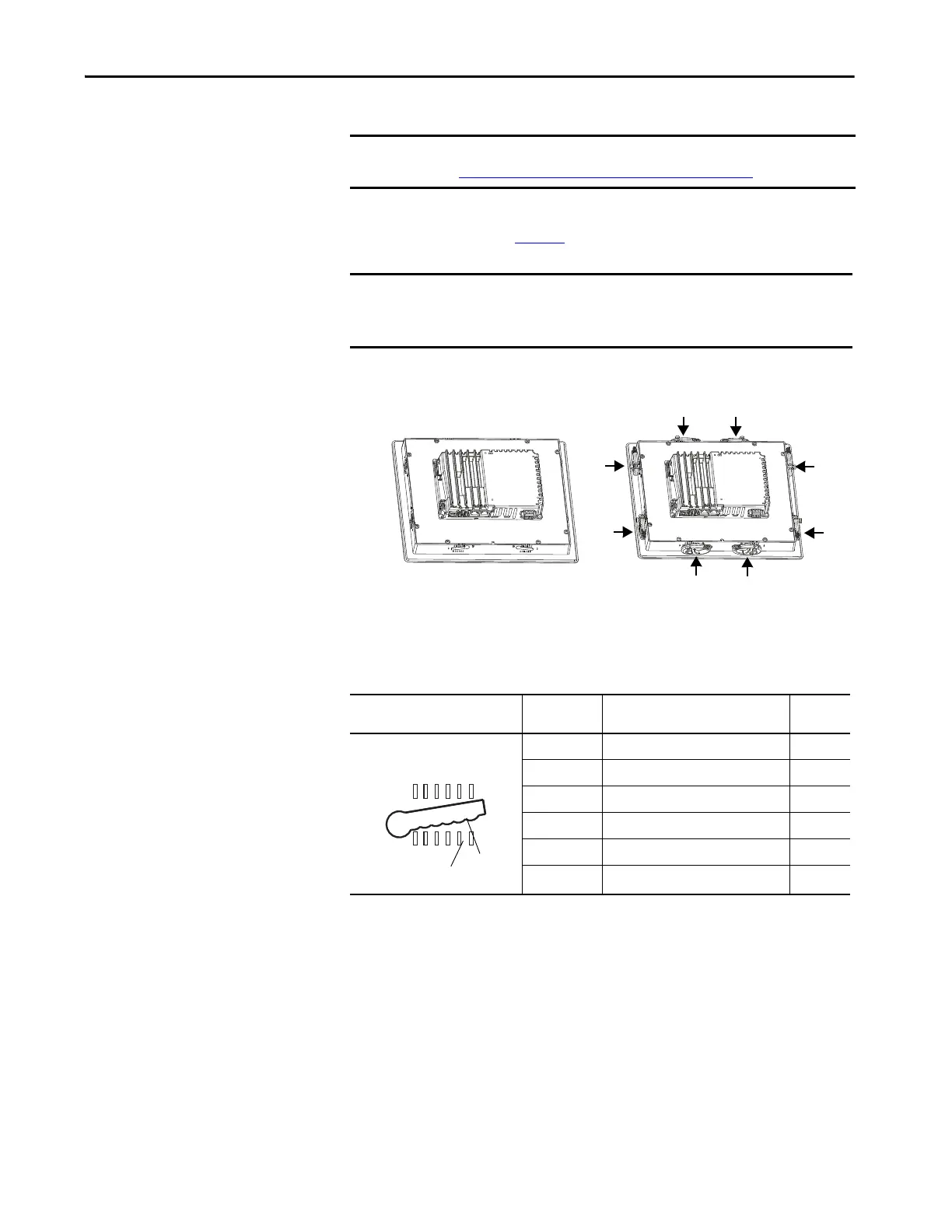

Table 15 - Lever Locking Positions
Mounting Slot Lever Lock
Position
Panel Thickness Range Typical
Gauge
1
1.50…2.01 mm (0.060…0.079 in.) 16
2
2.03…2.64 mm (0.080…0.104 in.) 14
3
2.67…3.15 mm (0.105…0.124 in.) 12
4
3.17…3.66 mm (0.125…0.144 in.) 10
5
3.68…4.16 mm (0.145…0.164 in.) 8/9
6
4.19…4.80 mm (0.165…0.188 in.) 7
1
2
3
4
5
6
Notch
Alignment Mark
Orientation of Slot Varies
