16 Rockwell Automation Publication 2711P-UM008I-EN-P - February 2022
Chapter 1
Operator Control
All terminals have a color display with a touch screen, or touch screen and
keypad, for operator control.
• Analog resistive touch screens provide accurate and durable touch
control for industrial applications.
• Keypad models are similar except for the number of function keys to the
left and right of the display. Larger models have more keys.
ATTENTION: The keypad and touch screen accept input from a finger, stylus,
and gloved-hand for operation in dry or wet environments. The plastic stylus
must have a minimum tip radius of 1.3 mm (0.051 in.). Any other object or
tool can damage the keypad or touch screen.
ATTENTION: To help prevent unintended operation, do not conduct
multiple operations simultaneously.
• Touch only one operating element on the touch screen with one finger at
one time.
• Press only one key on the terminal at one time.
F1
Esc
7
9
8
456
123
0
.
–
F2
F3
F6
F4
F5
F9
F7
F8
F10
F12
F11
F14
F13
F16
F15

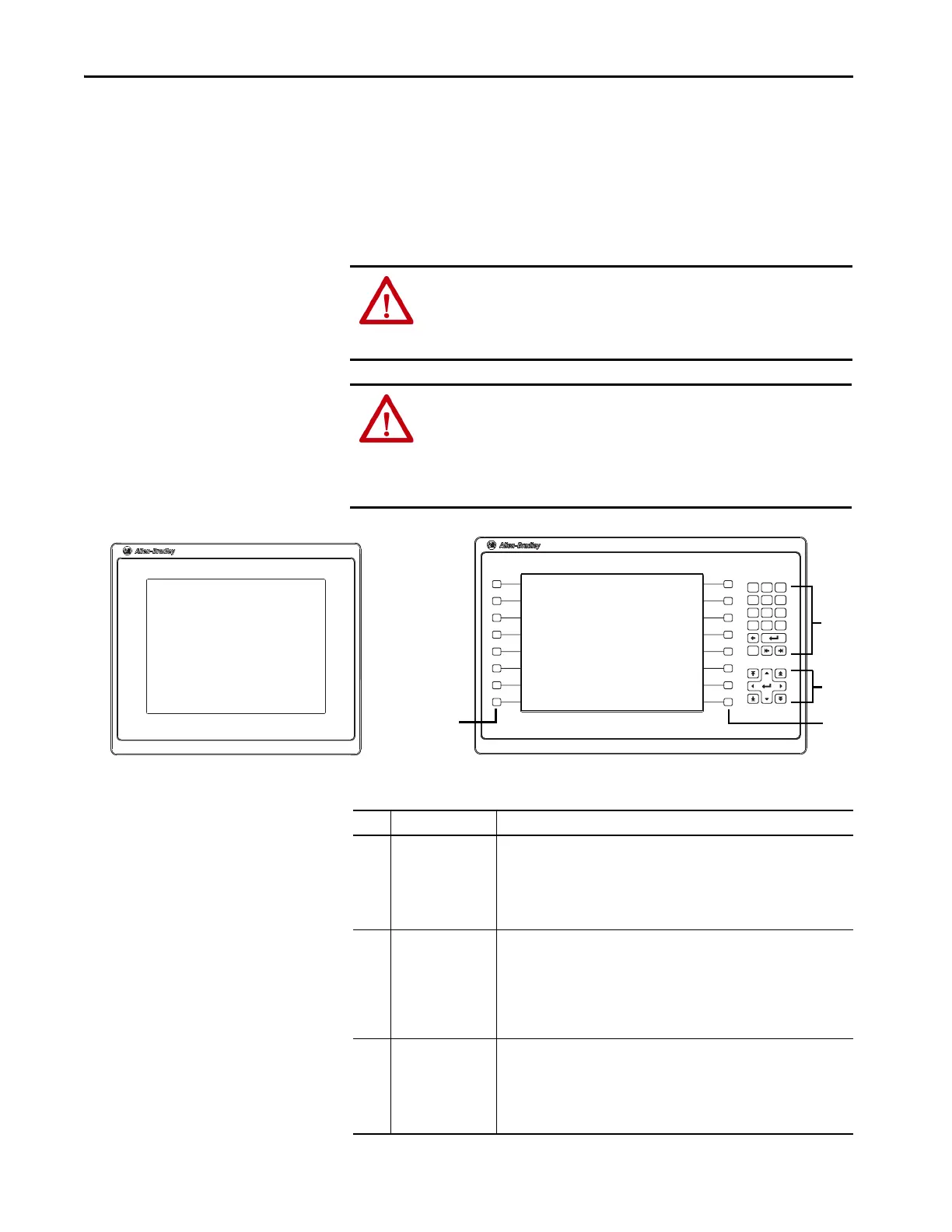

Table 2 - Terminal Keypad
Item Feature Description
1 Numeric keypad
Contains numeric, decimal, minus, and the following keys:
• Backspace - deletes the character to the left of the insertion point.
• Enter - inputs the currently highlighted key or enters a blank line if the
insertion point is in the text box of the virtual keyboard.
• Tab-left, Tab-right - selects the previous or next control or input element.
• Esc - cancels or dismisses a dialog.
2 Navigation keys
Provides navigation control.
• Arrow keys - selects a key on the virtual keyboard that is above, below, left, or
right of the selected key. Moves the cursor in selected direction if in the text
box.
• Home/End - moves the insertion point to the beginning or end of a text or
numeric entry field.
• Page up/Page down - goes to the next or previous pages of a list.
3
Function keys
6.5-in. terminal
10-in. terminal
15-in. terminal
Performs specific commands if events are configured for a screen or any of its
graphic elements. For example, F1 can be configured to navigate to another
screen.
• F1…F6 and F7…F12
• F1…F8 and F9…F16
• F1…F10 and F11…F20
