Front Suspension: 2B-9

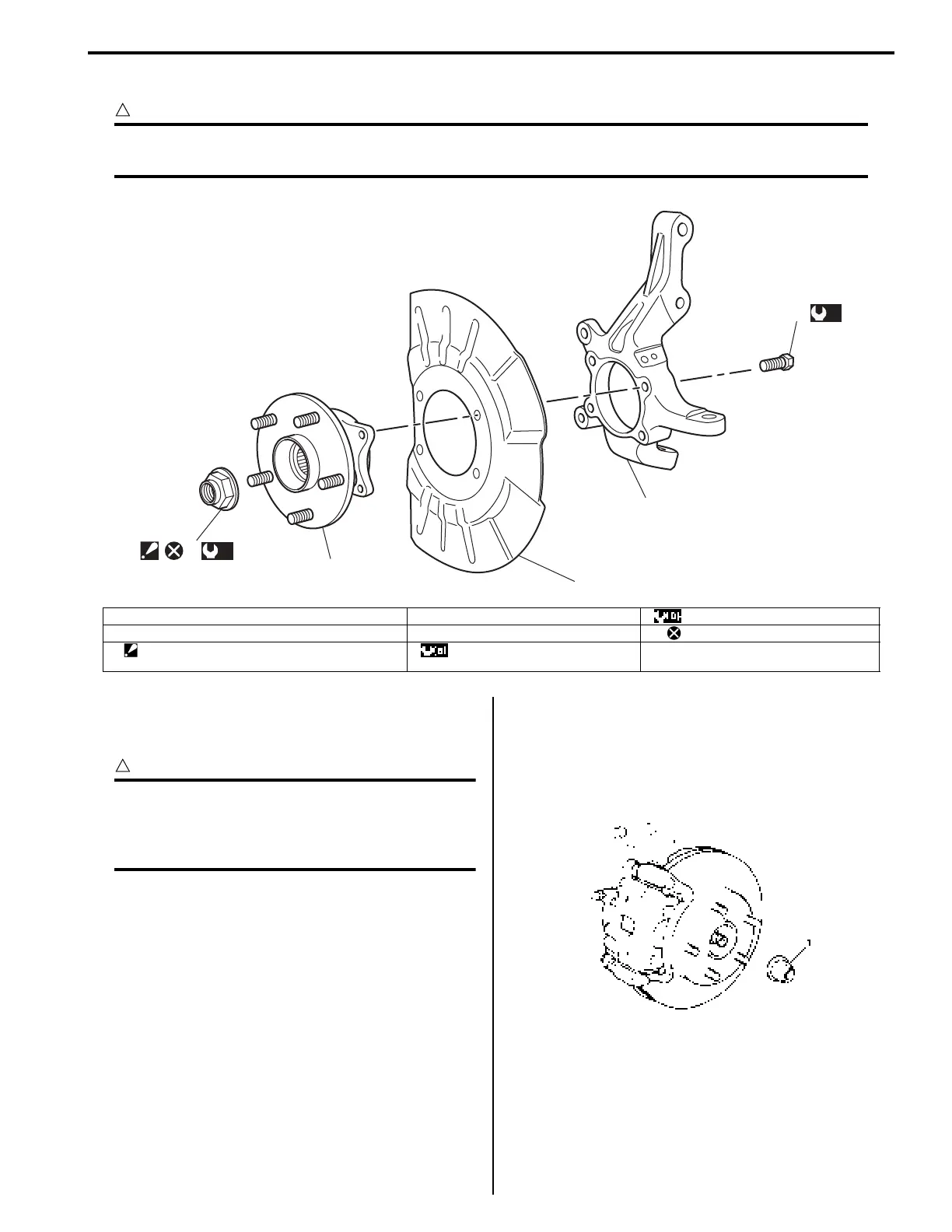

Front Wheel Hub Assembly and Steering Knuckle Components
S5JB0E2206006
CAUTION
!
Never disassemble front wheel hub assembly. Disassembly will spoil its original function. If faulty
condition is found, replace it with new one.
Front Wheel Hub Assembly Removal and
Installation
S5JB0E2206007
CAUTION
!
Never disassemble front wheel hub
assembly. Disassembly will spoil its original
function. If faulty condition is found, replace
it with new one.
Removal
1) Hoist vehicle and remove wheel.
2) Uncaulk drive shaft nut (1).
3) Depress foot brake pedal and hold it. Remove drive
haft nut (1).
1
4
2
5
3
(b)
(a)
I5JB0A220012-01
1. Front wheel hub assembly 4. Dust cover : 50 N⋅m (5.0 kgf-m, 36.0 lb-ft)
2. Steering knuckle 5. Wheel hub housing bolt : Do not reuse.
3. Drive shaft nut
: Calk, after tightening.
: 200 N⋅m (20.0 kgf-m, 145.0 lb-ft)
I5JB0A220013-01
To Next Page
