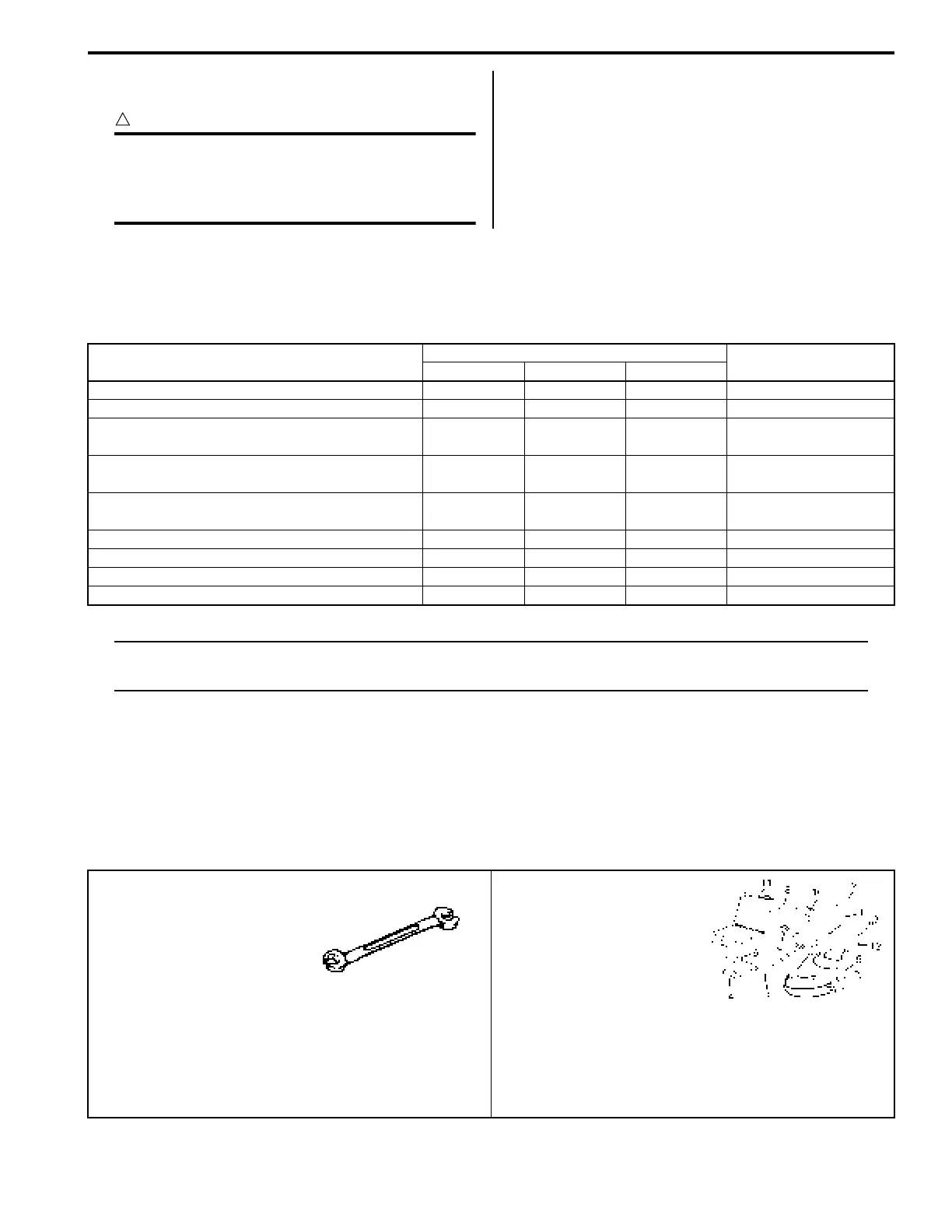

ABS: 4E-40
Rear Wheel Encoder Removal and Installation
S5JB0E4506014
CAUTION
!
Rear wheel encoder is included in rear wheel
hub assembly. If rear wheel encoder needs to
replaced, replace it as a rear wheel hub
assembly.
For removal and installation of front wheel hub
assembly, referring to “Rear Wheel Hub Assembly
Removal and Installation: in Section 2C in related
manual”.
Specifications
Tightening Torque Specifications
S5JB0E4507001
NOTE
The specified tightening torque is also described in the following.
“ABS (ESP®) Hydraulic Unit / Control Module Assembly Removal and Installation: ”
Reference:
For the tightening torque of fastener not specified in this section, refer to “Fastener Information: in Section 0A in
related manual”.
Special Tools and Equipment
Special Tool
S5JB0E4508001
Fastening part
Tightening torque
Note
N⋅mkgf-mlb-ft
Brake pipe flare nut for M10 16 1.6 11.5 )
Brake pipe flare nut for M12 19 1.9 14.0 )
ABS (ESP®) hydraulic unit / control module
assembly bolt
90.9 6.5
)
ABS (ESP®) hydraulic unit / control module
assembly bracket bolt
25 2.5 18.0
)
ABS (ESP®) hydraulic unit / control module
assembly bracket nut
25 2.5 18.0
)
Front wheel speed sensor bolt 11 1.1 8.0 )
Front wheel speed sensor harness clamp bolt 11 1.1 8.0 )
Rear wheel speed sensor bolt 11 1.1 8.0 )
Rear wheel speed sensor harness clamp bolt 11 1.1 8.0 )
09950–78220 SUZUKI scan tool
Flare nut wrench (10 mm) —
) This kit includes following
items. 1. Tech 2, 2. PCMCIA
card, 3. DLC cable, 4. SAE
16/19 adapter, 5. Cigarette
cable, 6. DLC loop back
adapter, 7. Battery power
cable, 8. RS232 cable, 9.
RS232 adapter, 10. RS232
loop back connector, 11.
Storage case, 12. Power
supply ) / )
