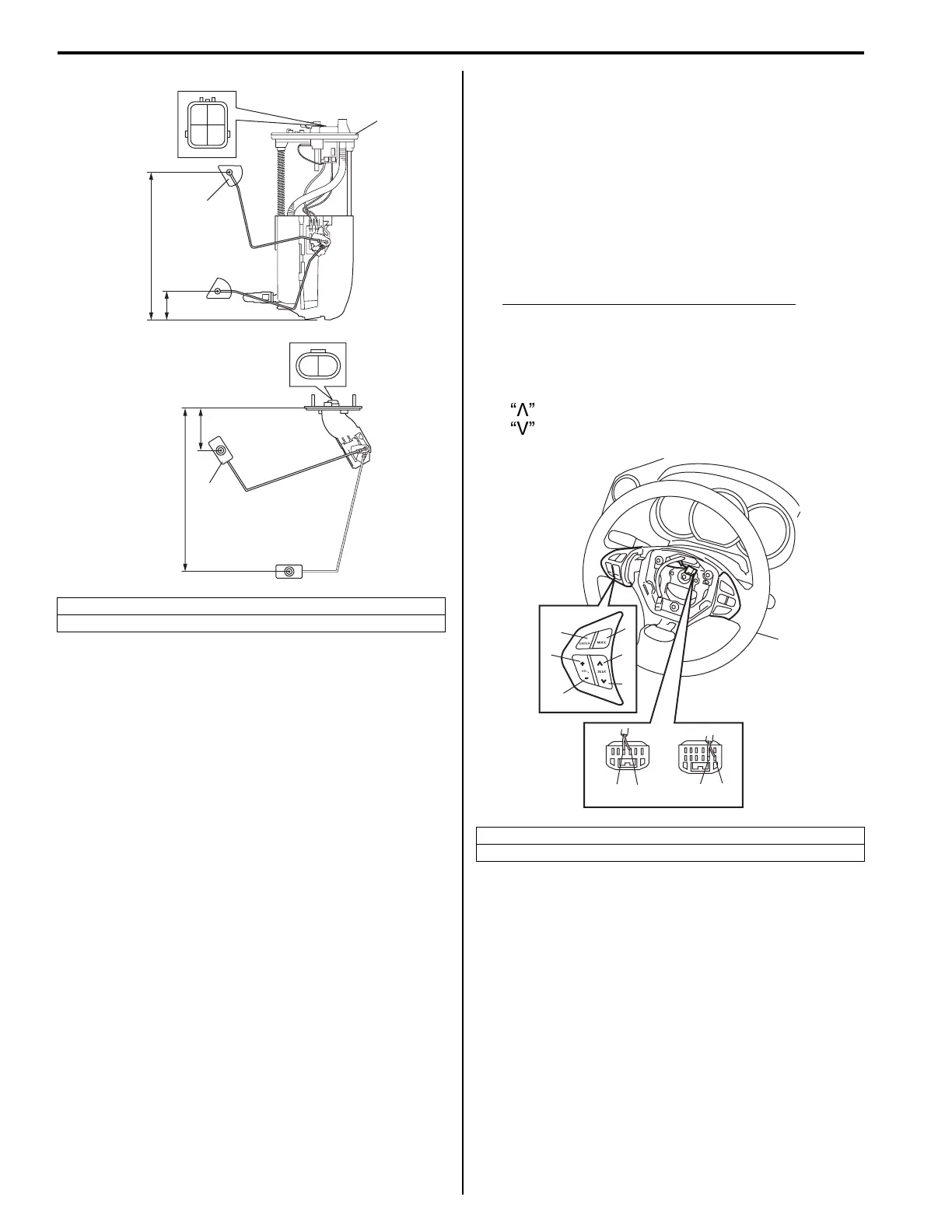

9C-9 Instrumentation / Driver Info. / Horn:
Remote Audio Control Switch Inspection
S5JB0E9306026
1) Remove driver air bag (inflator) module referring to
“Driver Air Bag (Inflator) Module Removal and
Installation: in Section 8B in related manual”.
2) Disconnect remote audio control switch connector
from contact coil.
3) Check switch for resistance between “a” and “b”
terminals under each condition below.
If check result is not satisfactory, replace remote
audio control switch.
Remote audio control switch resistance
All switches released (OFF): 4700 – 5600 Ω
“ENTER” switch (1) pushing on (ON): 50 – 60 Ω
“+” switch (2) pushing on (ON): 120 – 140 Ω
“–” switch (3) pushing on (ON): 220 – 260 Ω
“MODE” switch (4) pushing on (ON): 370 – 460 Ω
witch (5) pushing on (ON): 680 – 820 Ω
switch (6) pushing on (ON): 1400 – 1700 Ω
