4F-9 Electronic Stability Program:
Component Location

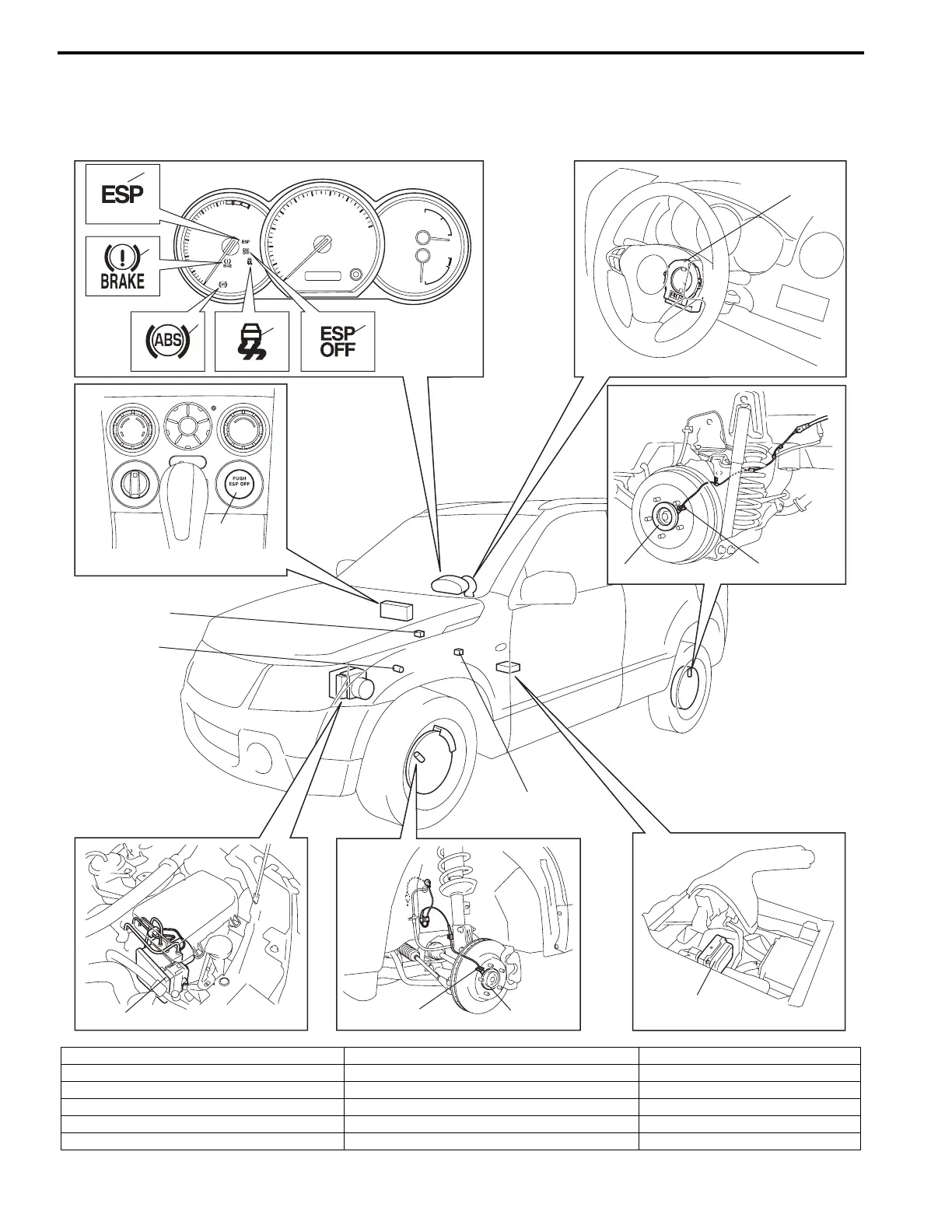

Electronic Stability Program Component Location
S5JB0E4603001
1
2
3
4
5
7
6
9
8
14
15
16
10
11
12
13
I6JB01460010-03
1. ESP® warning lamp 7. ESP® OFF switch 13. Yaw rate / G sensor assembly
2. EBD warning lamp (brake warning lamp) 8. Rear wheel speed sensor 14. Data link connector
3. ABS warning lamp 9. Rear wheel encoder 15. Back up light switch
4. SLIP indicator lamp 10. ESP® hydraulic unit / control module assembly 16. Stop lamp switch
5. ESP® OFF lamp 11. Front wheel speed sensor
6. Steering angle sensor 12. Front wheel encoder
