Transfer: Motor-Shift Type (Transfer with Shift Actuator) 3C-8

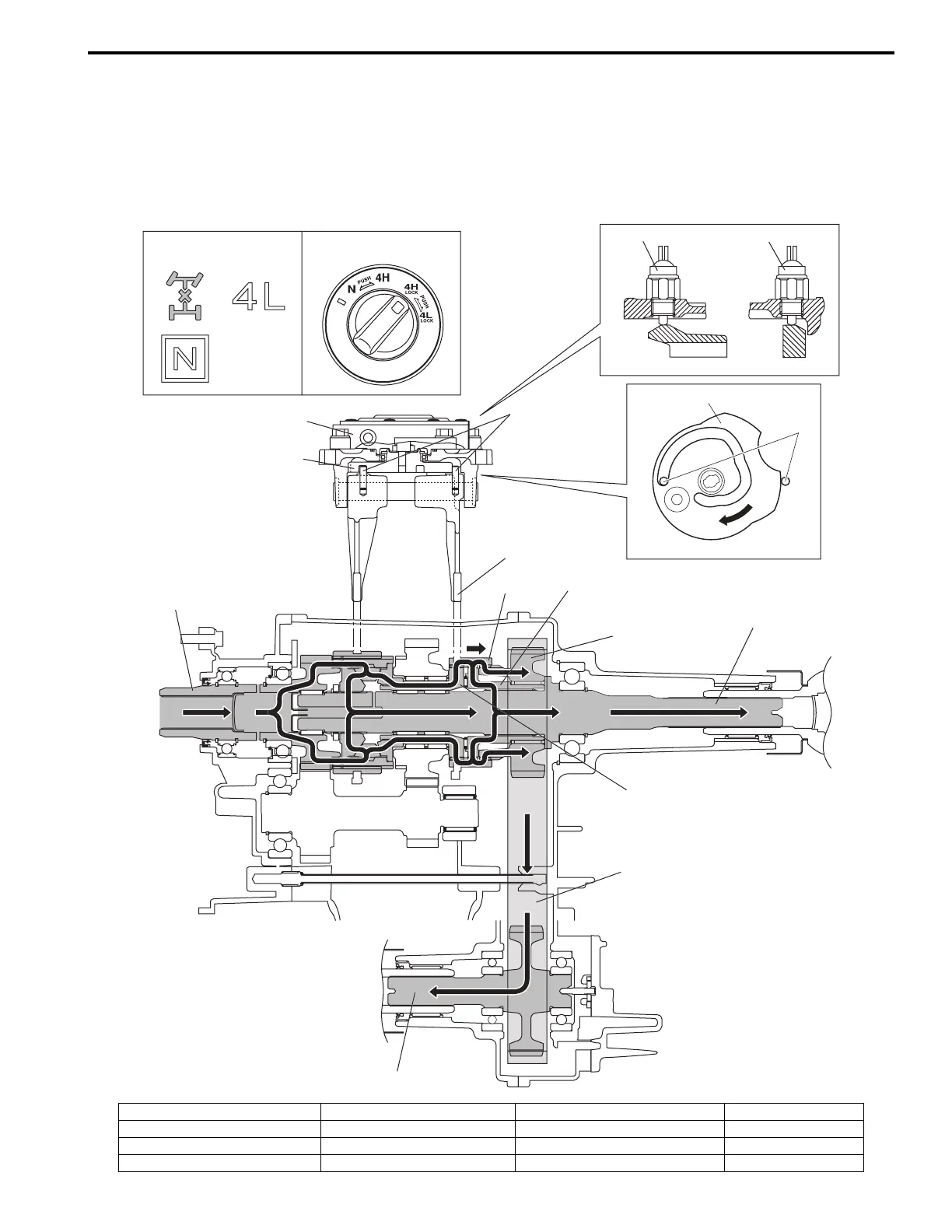

4H-lock (4WD High Center Differential Lock) Position
When 4H-lock position is selected from 4H position by turning the transfer switch, the transfer shift control actuator
motor runs and shift cam rotates in the arrow direction “A”. The shift cam shifts the differential lock shift fork in the
arrow direction “B”, and the differential lock clutch sleeve also moves in the arrow direction “B”.
The driving force from the transmission is transmitted from the transfer input gear to the rear output shaft, as in the
case of 4H position. Also, as the front drive shaft and front drive sprocket bush are engaged via differential lock clutch
sleeve, the driving force from the input gear is locked and transmitted to the rear output shaft.
B
[A] [B]
1
2
4
3
5
7
10
6
8
9
11
12
13
14
A
4
5
I5JB0A332004-03
[A]: Transfer position indicator 3. Transfer actuator 7. Input gear 11. Rear output shaft
[B]: Transfer switch 4. Shift fork pin 8. Differential lock clutch sleeve 12. Front drive shaft
1. 4L/N switch 5. Shift cam 9. Front drive sprocket bush 13. Drive chain
2. Center differential lock switch 6. Differential lock shift fork 10. Front drive sprocket 14. Front output shaft
