4F-35 Electronic Stability Program:
DTC C1041 / C1042 / C1043 / C1044 / C1045 / C1046 / C1051 / C1052 / C1053 / C1054 / C1055 / C1056:
Inlet Solenoid Circuit Failure, Outlet Solenoid Circuit Failure, Master Cylinder Cut Solenoid Circuit
Failure, Low Pressure Solenoid Circuit Failure
S5JB0E4604015
DTC C1041 / C1045 / C1051 / C1055: Right-Front / Left-Front / Right-Rear / Left-Rear Inlet Solenoid
Circuit Failure
DTC C1042 / C1046 / C1052 / C1056: Right-Front / Left-Front / Right-Rear / Left-Rear Outlet Solenoid
Circuit Failure
DTC C1043 / C1044: Master Cylinder Cut Solenoid Circuit No. 1 / No. 2 Failure
DTC C1053 / C1054: Low Pressure Solenoid Circuit No. 1 / No. 2 Failure
Refer to “DTC C1041 / C1042 / C1043 / C1044 / C1045 / C1046 / C1051 / C1052 / C1053 / C1054 / C1055 / C1056:
Inlet Solenoid Circuit Failure, Outlet Solenoid Circuit Failure, Master Cylinder Cut Solenoid Circuit Failure, Low
Pressure Solenoid Circuit Failure: in Section 4E”.
DTC C1050: Back Switch Failure
S5JB0E4604037

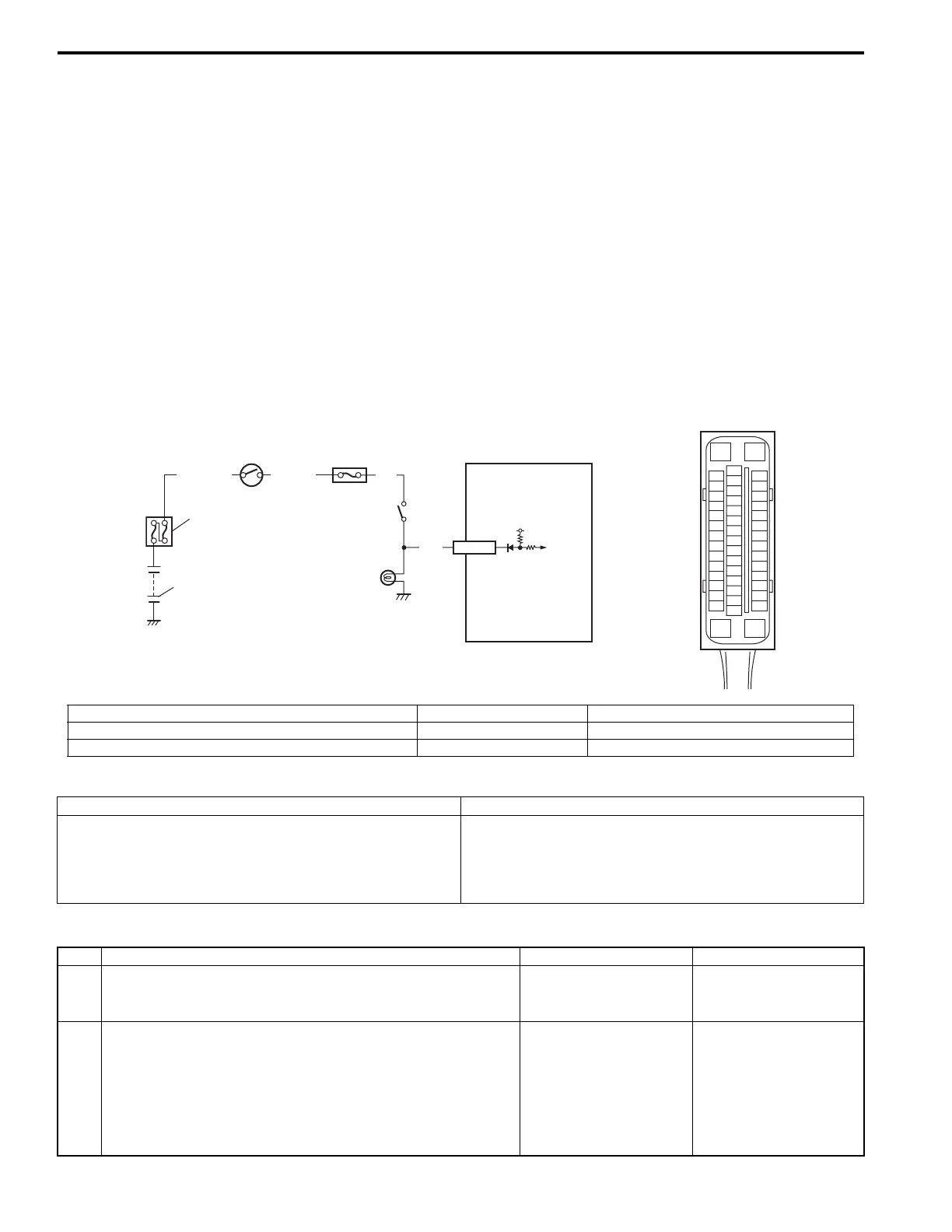

Wiring Diagram
DTC Detecting Condition and Trouble Area
DTC Troubleshooting
[A]
E53
16
1
15
2
3
4
5
6
7
8
9
10
11
12
13
14
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
1
BLK/YEL
WHT/GRN
12V
E53-10
RED
YEL
2
3
4
5
6
7
I6JB01460021-01
[A]: ESP® control module connector (viewed from terminal side) 3. Ignition switch 6. Back-up light
1. Battery 4. Junction block assembly 7. ESP® hydraulic unit control module assembly
2. Main fuse box 5. Back up light switch
DTC Detecting Condition Trouble Area
Back up light switch and/or switch circuit failure is
detected. (for M/T model)
• Back-up light
• Back up light switch
• Back up light switch circuit
• ESP® control module
Step Action Yes No
1 Was “Electronic Stability Program Check” performed? Go to Step 2. Go to “Electronic
Stability Program
Check: ”.
2 Check back up light switch and its circuit
1) Turn ignition switch to ON position.
2) Check back-up lights, back up light switch and their
circuit check referring to “Back-Up Light Symptom
Diagnosis: in Section 9B in related manual”.
Are they in good condition?
Go to Step 3. Repair or replace.
To Next Page
