Steering Wheel and Column: 6B-3
Repair Instructions

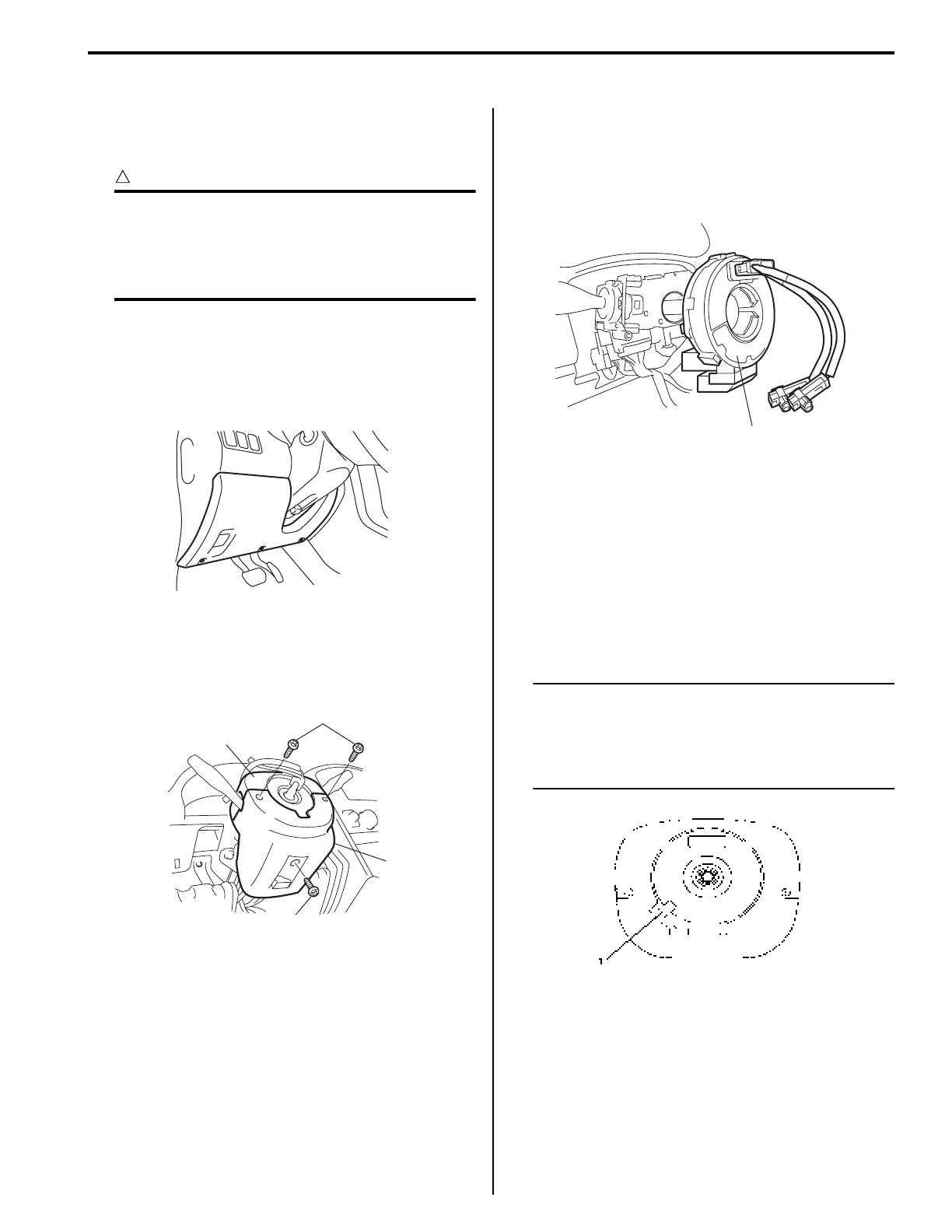

Contact Coil Cable Assembly Removal and
Installation
S5JB0E6206003
CAUTION
!
Do not turn contact coil cable assembly more
than allowable number of turns (about two
and a half turns from the center position
clockwise or counterclockwise respectively),
or coil will break.
Removal
1) Remove steering wheel from steering column. Refer
to “Steering Wheel Removal and Installation: in
related manual”.
2) Remove steering column hole cover (1).
3) Remove steering column cover screws (1) (3
pieces).
4) Separate upper cover (2) and lower cover (3), then
remove them.
5) Disconnect all connectors for contact coil cable
assembly.
6) Remove contact coil cable assembly (1) with
steering angle sensor (if equipped) from steering
column.
7) Separate steering angle sensor from contact coil
cable assembly referring to “Steering Angle Sensor
Removal and Installation: ”.
Installation
1) Check to make sure that vehicle’s front tires are set
at straight-ahead position and then ignition switch is
at “LOCK” position.
2) Install contact coil cable assembly to steering
column.
NOTE
New contact coil cable assembly is supplied
with contact coil cable assembly set and held
at its center position with a lock pin (1).
Remove this lock pin after installing contact
coil cable assembly to steering column.
1
I5JB0A620011-01
1
3
1
2
I5JB0A620012-01
1
I6JB01620002-01
I5JB0A620014-01
