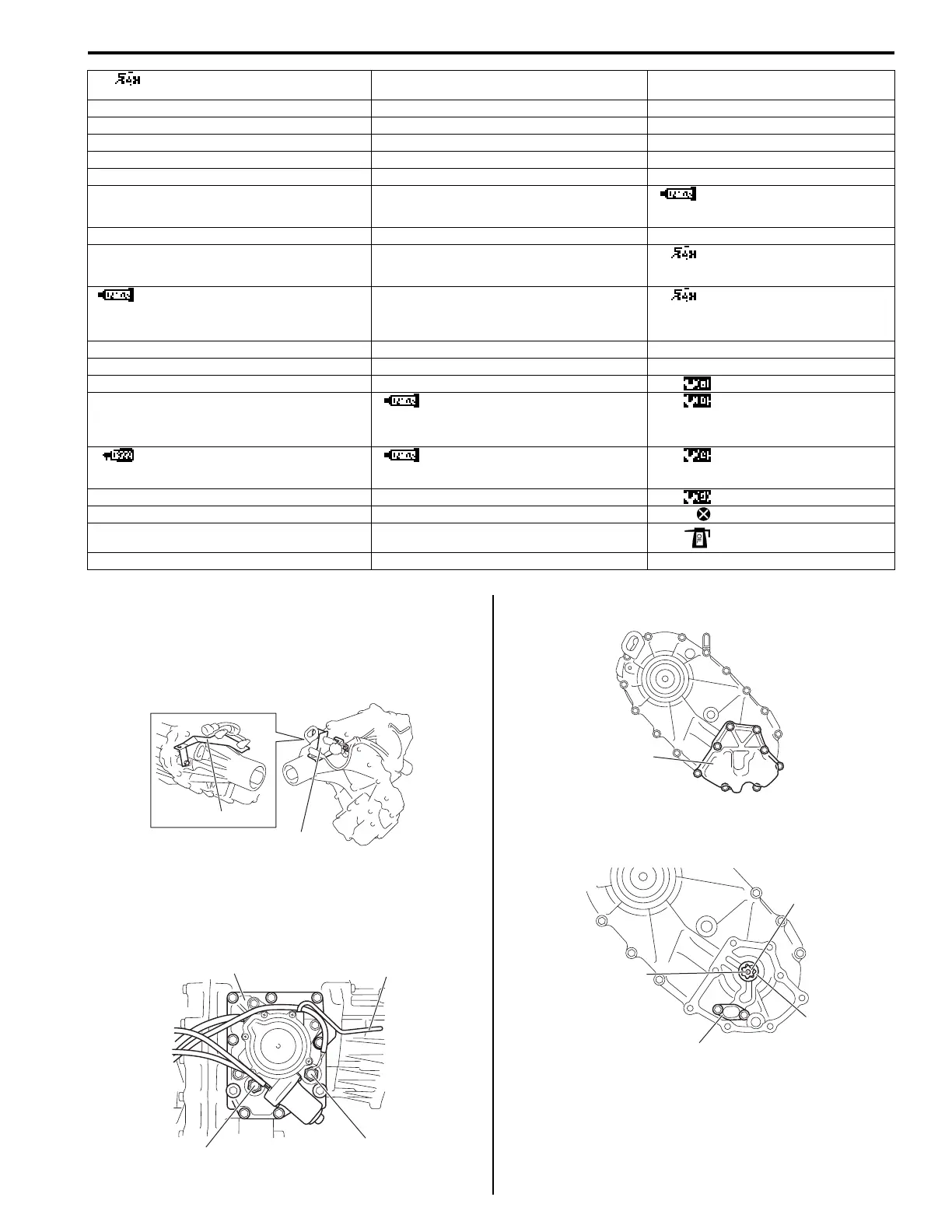

Transfer: Motor-Shift Type (Transfer with Shift Actuator) 3C-60
Transfer Assembly Disassembly and
Reassembly
S5JB0E3316009
Disassembly
1) Remove harness bracket (1).
2) Remove center differential lock switch (1) and 4L/N
switch (2).
3) Remove transfer actuator assembly (3) and breather
pipe (4).
4) Remove oil pump cover (1).
5) Remove oil pump inner rotor (1), outer rotor (2), oil
strainer (4) and drive pin (3).
1. Front oil seal No.1
: Apply grease 99000-25010 to oil seal lip.
20. Washer 39. Oil strainer bolt
2. Front case bolt 21. Shim 40. Oil pump outer rotor
3. Front case 22. Reduction shift sleeve 41. Oil pump inner rotor
4. Knock pin 23. Center differential assembly 42. Oil pump drive pin
5. Oil pipe 24. Low gear 43. Oil strainer bolt
6. Input gear assembly 25. Front drive shaft 44. Oil pump cover bolt
7. Input gear plate bolt 26. Thrust needle bearing 45. Oil drain plug
: Apply sealant 99000-31260 to
plug thread.
8. Counter gear assembly 27. Differential lock clutch sleeve 46. Transfer to transmission bolt
9. Needle bearing 28. Front drive sprocket bush 47. Front oil seal No.2
: Apply grease 99000-25010 to oil
seal lip.
10. Center case
: Apply sealant 99000-31260 to mating
surface of front case, transfer control
cover and center case.
29. Front drive sprocket 48. Rear oil seal
: Apply grease 99000-25010 to oil
seal lip.
11. Damper 30. Rear output shaft assembly 49. Transfer actuator bolt
12. 4L/N switch 31. Front output shaft assembly 50. Control cover
13. Center differential lock switch 32. Drive chain : 23 N⋅m (2.3 kgf-m, 17.0 lb-ft)
14. Transfer actuator assembly 33. Rear case
: Apply sealant 99000-31260 to mating
surface of rear case, oil pump cover and
center case.
:10 N⋅m (1.0 kgf-m, 7.5 lb-ft)
15. Control cover bolt
: Apply thread lock 99000-32110 to bolt
thread.
34. Oil level / filler plug
: Apply sealant 99000-31260 to plug
thread.
:50 N⋅m (5.0 kgf-m, 36.5 lb-ft)
16. Damper bolt 35. Harness bracket : 20 N⋅m (2.0 kgf-m, 14.5 lb-ft)
17. Breather pipe 36. Harness bracket bolt : Do not reuse.
18. O-ring 37. Rear case bolt : Apply transfer oil.
19. Snap ring 38. Oil strainer
1
1
I5JB0A331010-01
2
1
3
4
I5JB0A331011-01
1
I5JB0A331012-01
1
2
4
3
I5JB0A331013-01
To Next Page
